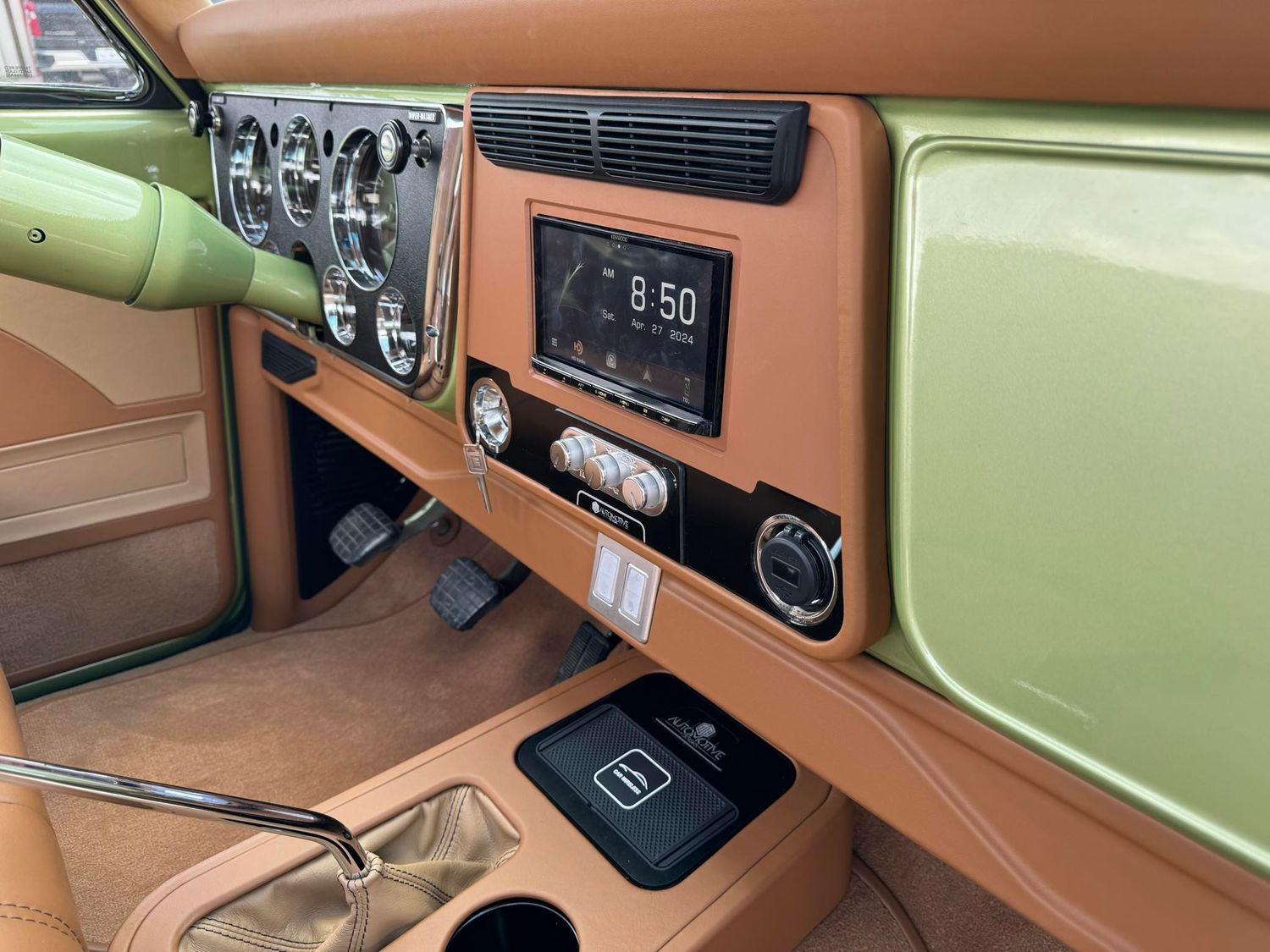

67-72 Chevrolet C10 Double Din Dash kits.
Designed for use with Vintage Air 3 or Dakota Digital HVAC controllers and Kenwood Double Din media units.
Comes equipped with new center AC vent full 3d printed assembly, stock ignition tumbler location and magnetic relief insert panel.

Standard item:
Unfinished shroud gapped for leather/vinyl with flush mount USB, 3d printed ac vent and finished magnetic relief insert trim.

Upgraded options:
-A/C Controllers
-Dakota Digital DCC-4000
-Vintage Air 3 Knob Polished = 491210-RUA
-Vintage Air 3 Knob Black = 491223-RUA
-Vintage Air Slider Polished = 473080
-Vintage Air Slider Black = 473081

-Flush USB port
-Kenwood radio
-Leather finish on shroud (customer provides material)
-Vinyl finish on shroud (customer provides material)

Ships in 10-15 business days from payment date.

Hardware pack comes with
4. 1/4”- 20 x 1” tapered bolts
4. 1/4” x 1-1/4” washers
4. 1/4”-20 nylon locking nuts
1. Ignition key bezel removal tool
1. 1/4”- 20 drill bit

Step 1: Remove key cyclinder, cig lighter, ac controls, ash tray, radio, and center ac vent.
Step 2: Tape off center area of dash and place new kit without front acrylic to mark four 1/4" holes to drill into metal dash.
Step 3: Mark with sharpie on tape the openings of the dash kit to be cut away from the metal.
Step 4: Remove dash kit and use air saw preferably or cutoff wheel to cut metal areas.
Step 5: Upholster dash kit and install radio with cage into dash kit base.
Step 5.5: Install finished dash kit base onto vehicle dash.
Step 6: Install ignition and cig lighter or usb into left and right circles as well as secure the ac controller into the finished acrylic topper.
Step 7: Plug in everything and snap acrylic face to dash kit base.
Step 8: Attach center ac vent and snap into place
Step 9: Enjoy.
