Features

Efficient Power Supply: Energy-efficient performance using advanced pulse-width modulator integrated circuits in the power supply.

Fast & Reliable: Quick, reliable power delivery through high-quality HEXFET® MOSFETs.

Clear Sound: Minimized signal distortion from a premium toroidal transformer.

Reduced Heat: Low ESR capacitors decrease power loss and keep the system running cooler.

Precision Tuning: Durable, high-quality controls for accurate audio adjustments.

Smooth Output: High-efficiency filters offer clear sound across all frequencies.

Powerful & Efficient: Delivers powerful sound with minimal energy use through a high-performance class D intelligent driver IC with PWM modulator.

Valet Mode: Restricts sound output to 25% of maximum level to prevent damage from guest drivers.

Engineered for Modern Vehicles: Designed to deliver consistent, high-quality sound in start-stop in electric vehicles, setting it apart from other amplifiers.

ParaBASS Control Knobs: Allows you to fine-tune your bass for the ultimate audio experience.

Description

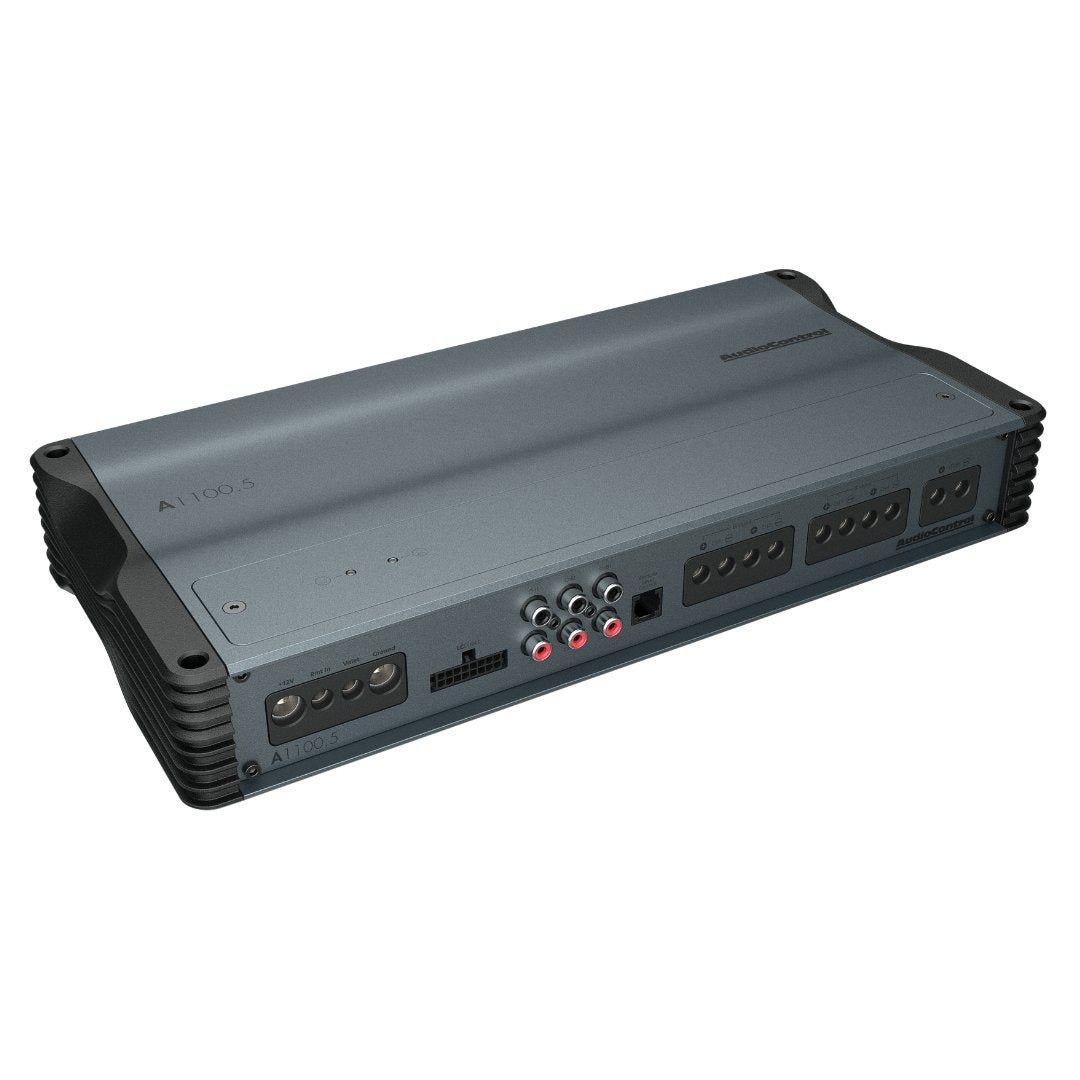

Immerse yourself in enhanced audio performance with the AudioControl A1100.5 Altitude 5-Channel Amplifier. Encased in a sleek, matte grey aluminum chassis, this amplifier offers modern sophistication and exceptional thermal management for optimal efficiency. It features advanced Valet Mode, which limits volume to protect your system from unintended damage by guest drivers. Uniquely engineered for ideal performance in start-stop and electric vehicles, it combines a highly efficient power supply, premium HEXFET® MOSFETs, and a top-tier toroidal transformer to deliver crystal-clear, powerful sound. Elevate your audio experience with unmatched precision and reliability—order now!

What's In The Box

Altitude 5-Channel Amplifier

Specifications

Model Number A1100.5

Preamp Inputs 6

Line-Level Inputs 6 V max

Speaker-Level Inputs 20 V max

Rated Continuous (RMS) Power at 14.4V

90W x 4 @ 4Ω

400W x1 @ 4Ω

125W x 4 @ 2Ω

600W x 1 @ 2Ω

S/N Ratio (ref: rated power) 95.1 dBA channels 1-4

103.9 dBA channel 5

THD+N: <0.25% & <0.75%

Power / Ground Wire Gauge 4 AWG

Recommended Fuse rating 120A

Valet Mode Yes

Subsonic Filter Variable

Linkwitz-Riley X-Over

Off

High Pass

Low Pass

Freq. Range: 50Hz -5K Hz

Bass Processing ParaBASS®

Dimensions 14” W x 6.7” D x 2.1 H

Weight 7.95 lbs
