Product Highlights

Features

Efficient Power Supply: Energy-efficient performance using advanced pulse-width modulator integrated circuits in the power supply.

Fast & Reliable: Quick, reliable power delivery through high-quality HEXFET® MOSFETs.

Clear Sound: Minimized signal distortion from a premium toroidal transformer.

Reduced Heat: Low ESR capacitors decrease power loss and keep the system running cooler.

Precision Tuning: Durable, high-quality controls for accurate audio adjustments.

Superior Protection: 500V Class X2 capacitors protect your system from power surges and promise long-lasting performance.

Smooth Output: High-efficiency filters offer clear sound across all frequencies.

Powerful & Efficient: Delivers powerful sound with minimal energy use through a high-performance class D intelligent driver IC with PWM modulator.

Valet Mode: Restricts sound output to 25% of maximum level to prevent damage from guest drivers.

Engineered for Modern Vehicles: Designed to deliver consistent, high-quality sound in start-stop in electric vehicles, setting it apart from other amplifiers.

Spike Mode Enabled: Allows you to connect three 4Ω subwoofers at 1.33Ω, unleashing even more power from your Altitude Series amplifier, designed to run cool at maximum output for extended periods of time.

ParaBASS Control Knobs: Allows you to fine-tune your bass for the ultimate audio experience.

Description

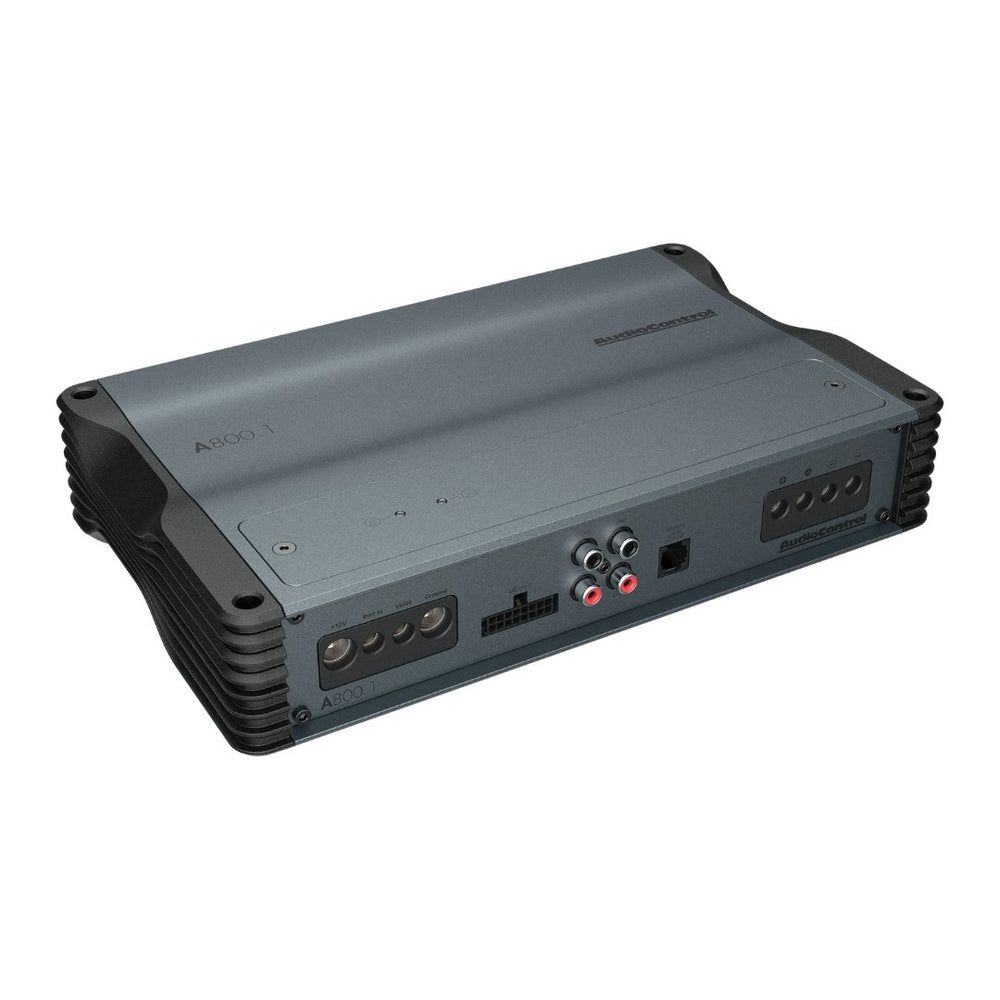

Unleash powerful audio performance with the AudioControl A800.1 Altitude Monoblock Amplifier. Encased in a sleek, matte grey aluminum chassis, this amplifier combines modern style with superior thermal management for peak efficiency. Designed for flawless performance in start-stop and electric vehicles, it delivers consistent, high-quality sound in any environment. Key features include Valet Mode to limit volume and protect your system from guest drivers, Spike Mode for connecting multiple subwoofers, and advanced circuitry for efficient, reliable power with minimal distortion. Enjoy peace of mind and elevate your audio experience with powerful, uninterrupted sound.

What's In The Box

Altitude Monoblock Amplifier

Hex Key(s)

High-Level input harness

Mounting screws

Specifications

Model Number A800.1

Preamp Inputs 2

Line-Level Inputs 6 V max

Speaker-Level Inputs 20 V max

Rated Continuous (RMS) Power at 14.4V

400W x 1 @ 4Ω

600W X 1 @ 2Ω

800W x 1 @ 1.33Ω

S/N Ratio (ref: rated power) 110.2 dBA

THD+N: <0.14%

Power / Ground Wire Gauge 4 AWG

Recommended Fuse rating 100A

Valet Mode Yes

Subsonic Filter Variable

Linkwitz-Riley X-Over

Low Pass

Freq. Range: 60 Hz to 120 Hz

Bass Processing ParaBASS®

Dimensions 10.9” W x 6.7” D x 2.1” H

Weight 6.05 lbs
