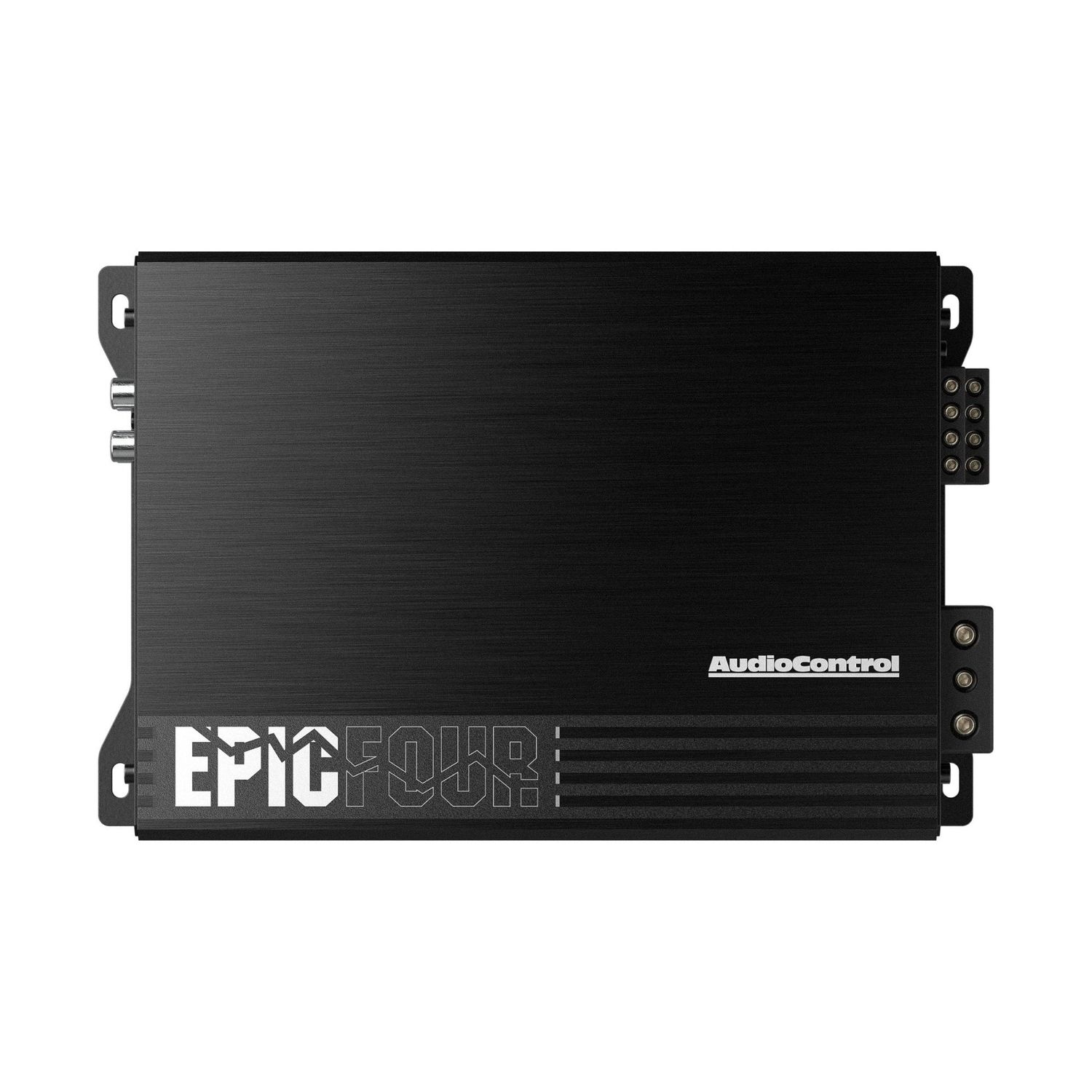

AudioControl EPIC Series 4-Channel Amplifier

Features

Powerful and Compact: This digital Class-D amplifier delivers impressive power in a space-saving design.

Optimized for Peak Performance: Designed for maximum power output, supporting 2-ohm loads.

Smart Protection Features: Equipped with multiple protection modes, including over-current, over-voltage, and over-temperature safeguards, ensuring long-lasting, reliable performance.

Secure and Efficient Connections: Direct wire terminals with Hex screws and large gauge power terminals ensure solid connections and maximum current flow.

Customizable Sound: Features adjustable high pass filters to match your subwoofer and speaker frequencies for optimal audio performance.

Description

The AudioControl EPIC Series 4-Channel Amplifier delivers killer sound quality in a compact, thermally efficient design. With its high-current Class D setup, this amp is 2-Ohm stable, maximizing power output while keeping things super efficient. Built for reliability, it comes with a smart auto-reset protection circuit and sturdy power and speaker terminals secured with hex screws, providing a solid connection. Perfectly engineered for performance and convenience, the EPIC Series multi-channel amplifier serves up next-level, distortion-free sound, making it the ultimate upgrade for any audio enthusiast!

Not compatible with THE Epicenter Bass Restoration Processor

What's In The Box

4-Channel Amplifier

Wrench

Screws

Specifications:

Model Number EPICFOUR

Line-Level Inputs 500mV - 6V RMS

Continuous Power (RMS) at 14.4V

4 x 100 Watts at 4 ohms

4 x 200 Watts at 2 ohms

2 x 400 Watts at 4 ohms Bridged

Remote Level Control Not Included

Frequency Response (+/- 1 dB) 10 Hz - 22 kHz

S/N Ratio 90.1 dBa, Ref 100 Watts at 4 ohms

Power / Ground Wire Gauge 4 AWG

Recommended Fuse Rating 80 Amps

High Pass Filter 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz

Speaker Terminal Wire Gauge 8 AWG

Epicenter Link No

Dimensions 6.1 in. W x 9.41 in. L x 2.01 in. H
