Features

Powerful and Compact: This digital Class-D amplifier delivers impressive power in a space-saving design.

Optimized for Peak Performance: Delivers maximum power with 2-ohm support on the 4-channel section and 1-ohm stability on the subwoofer section.

Seamless Integration with The Epicenter: Simplify installation by connecting directly to The Epicenter and The Epicenter Micro with the included Epicenter Link, combining power and remote functionality for a hassle-free experience.

Convenient Remote Control: Adjust your sound effortlessly with the included ACR-E Remote Control knob, giving you full control at your fingertips.

Smart Protection Features: Equipped with multiple protection modes, including over-current, over-voltage, and over-temperature safeguards, ensuring long-lasting, reliable performance.

Secure and Efficient Connections: Direct wire terminals with Hex screws and large gauge power terminals ensure solid connections and maximum current flow.

Customizable Sound Control: Fine-tune your audio with adjustable Bass Boost Q, low pass, subsonic, and high pass filters to match your subwoofer and speaker frequencies for optimal performance.

Description

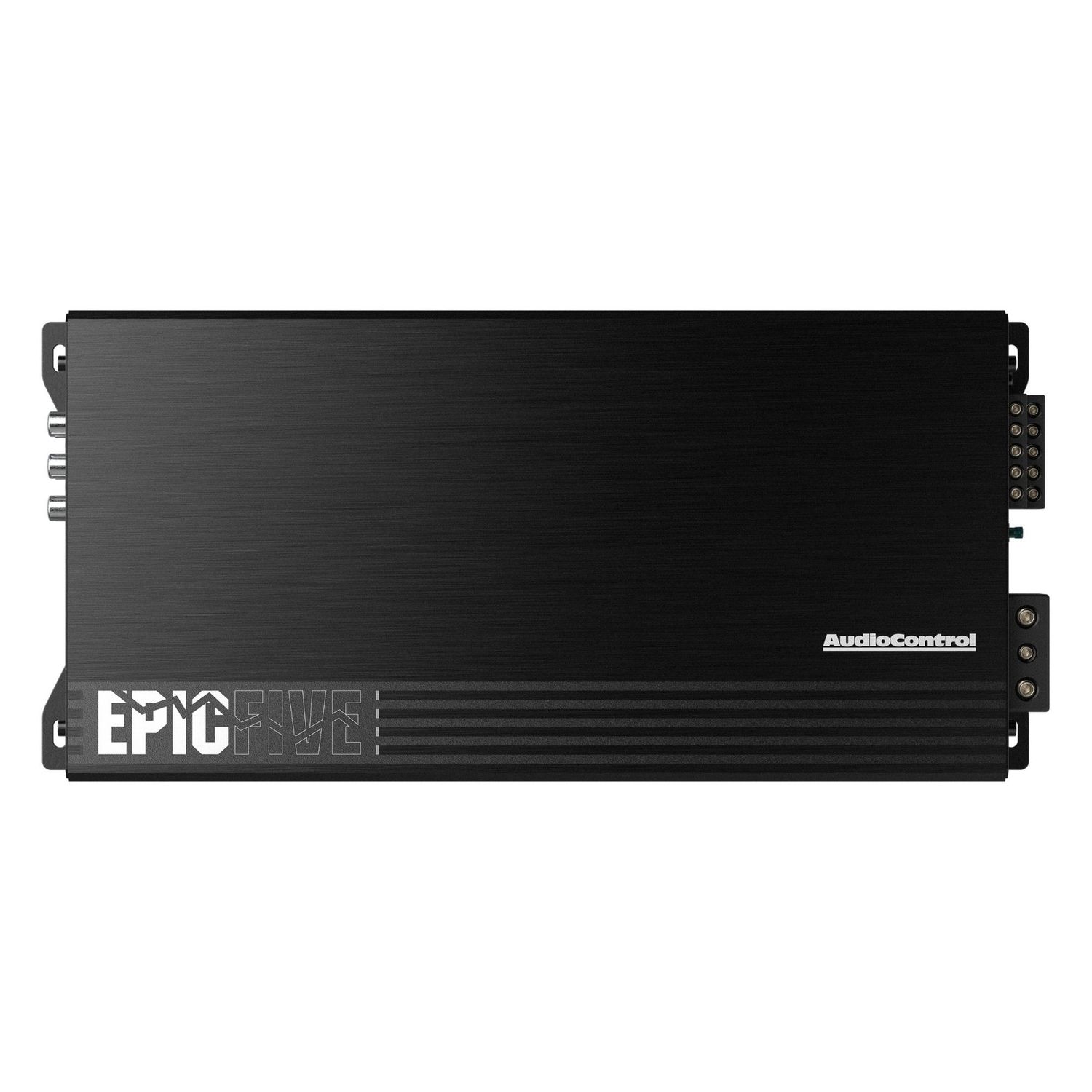

The AudioControl EPIC Series 5-Channel Amplifier delivers next-level sound performance in a compact, thermally efficient design. With its high-current Class D architecture, it pumps out maximum power while keeping things extra efficient, giving you powerful, crystal-clear audio across all channels. Pair it with The Epicenter Bass Restoration Processor (sold separately) to take your bass experience to booming new heights. This amplifier series is unique in the AudioControl lineup, offering a dedicated bass knob for unparalleled control. Dial in your perfect bass settings with ease and precision. Whether you're chasing wicked sound quality, rugged durability, or ultimate control, this multi-channel amp is the perfect upgrade for anyone ready to vibe out!

What's In The Box

5-Channel Amplifier

Wrench

Screws

ACR-E Remote Level Control and Cable

The Epicenter Link (1m Harness)

Specifications:

Model Number EPICFIVE

Line-Level Inputs 500mV – 6V RMS

Continuous Power (RMS) @ 14.4V

4 x 75 Watts + 1 x 300 Watts @ 4 ohms

4 x 150 Watts + 1 x 500 Watts @ 2 ohms

1 x 700 Watts @ 1 ohm (subwoofer output)

2 x 400 Watts @ 4 ohms Bridged

Remote Level Control Included

Frequency Response (+/- 1 dB) 10 Hz – 24 kHz (Ch1/2/3/4)

12 Hz – 181 Hz (Ch5)

S/N Ratio 92.1 dBa, Ref 75 Watts @ 4 ohms

Power / Ground Wire Gauge 4 AWG

Recommended Fuse Rating 150 Amps

High Pass Filter 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz

Low Pass Filter 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz

Subsonic Filter 12 dB/octave Linkwitz-Riley, Off to 50 Hz

EPIC Boost (Frequency Center) 45 Hz, Gain: 0 to 12 dB

Speaker Terminal Wire Gauge 8 AWG

Epicenter Link Yes

Dimensions 6.1″ W x 13.35″ L x 2.01″ H
