features

• Four channels of active speaker-level inputs (up to 40V input handling)
• Fixed and variable outputs with discrete-level controls
• AccuBASS® processing for correction of bass roll-off
• Load Selection Switch
• GTO™ Signal Sensing
• Ground Isolation Switch
• ACR-1 dash remote included
• Compact design

specifications

inputs

• Speaker Level Input: 1 (4 channels)
• Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
• Input Impedance (selectable): 20 Ohms, 60 Ohms, 20k Ohms

outputs

• Preamp Outputs: 5 (4 channels main, 1 channels bass)
• Maximum Output Level: 9.5Vrms/13V peak
• Output Gain: +/- 15 dB
• Output Impedance: 150 Ohms

performance

• Total Harmonic Distortion: 0.01%
• Signal to Noise: >124 dB
• Frequency Response: 20 Hz - 20 kHz

control

• Remote In / GTO™ Signal Sense / Audio Sense
• 12VDC Remote Out (always active when unit is on)

general

• Current Draw: 330 mA
• Recommended Fuse Rating: 2 A

weights & dimensions

• Dimensions: 7 in. L x 5.1 in. D x 1.14 in. H (including speaker connectors)
• Weight: 1.1 lbs.

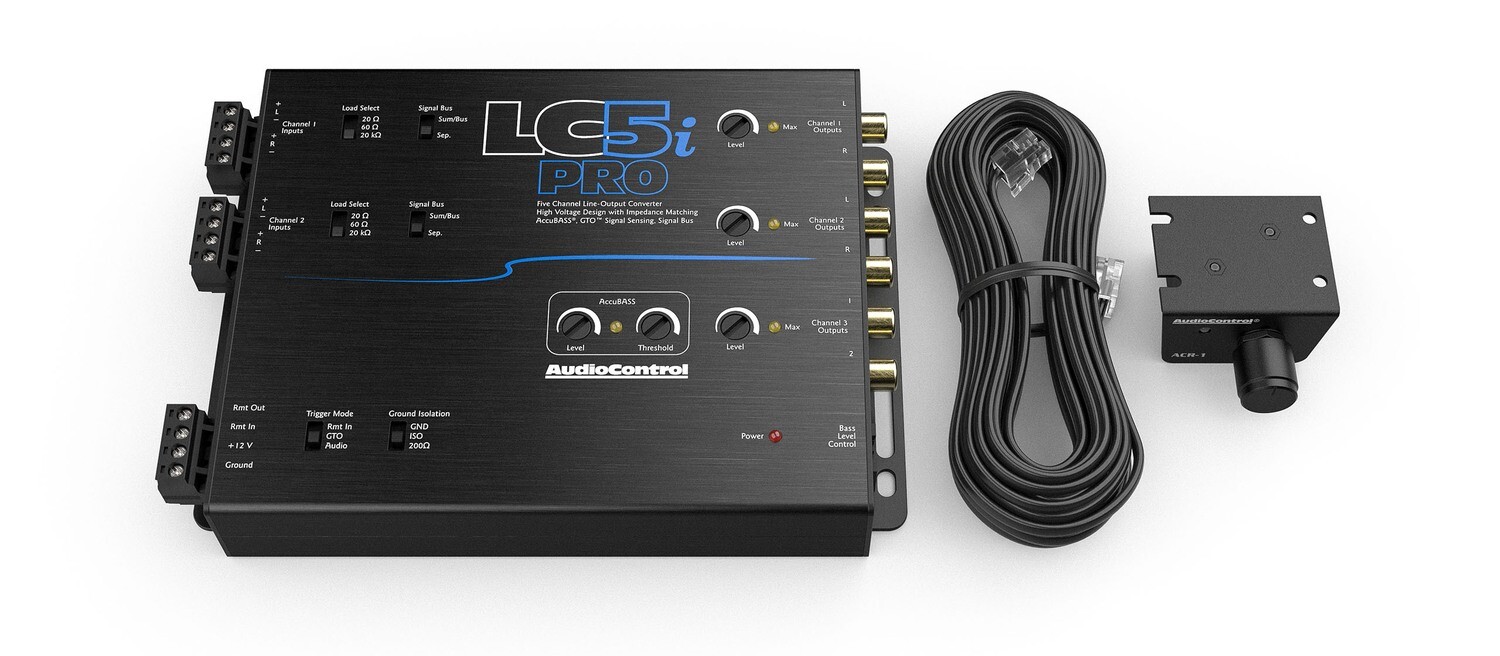

in the box: LC5i PRO, ACR-1, 20-inch Phone Cable, Speaker and power connectors, Manual, Warranty

ADD ON ITEMS:

Non amplified Ford harnesses.

LPHFD31:

-2021-2024 F150

-2020-2024 SuperDuty

LPHFD21:

-2013-2020 F150

-2013-2019 SuperDuty
