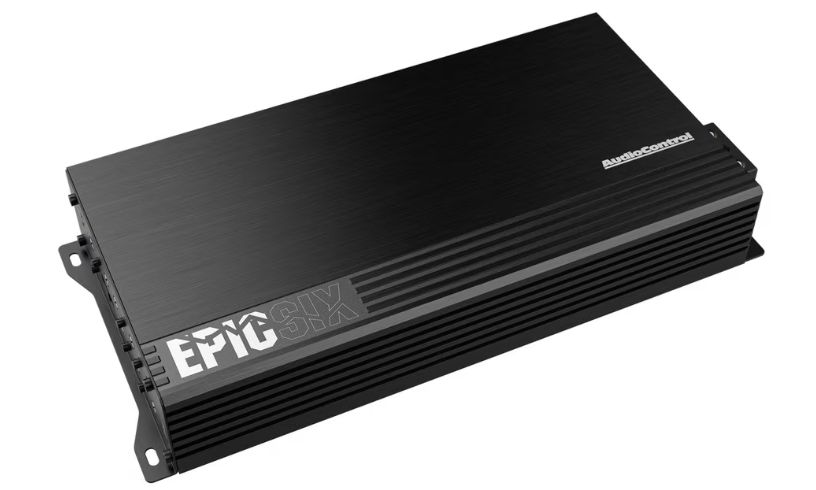

EPICSIX AudioControl EPIC Series 6-Channel Full Range 1200 Watt Amplifier

Product Details

This is a pre-order. Official release date is May 20th, 2026.

The AudioControl EPIC Series 6-Channel 1200 Watt RMS Amplifier is a compact, high-power Class D amplifier engineered for flexibility, output, and reliability. Its high-current design delivers serious performance, while the Smart Auto-Reset Protection Circuit keeps everything running smoothly, even under demanding conditions.

Built for installers who demand options—active 3-way front stage, 5-channel, active 6-channel, or a powerful bridged configuration. Whatever your design calls for, EPICSIX fits the plan and delivers. One amplifier delivers so many possibilities, giving you the freedom to build, tune and evolve your system, not limit it.

This crossover configuration ensures proper frequency distribution, improved sound clarity, and reliable speaker protection, while offering exceptional flexibility for a wide range of system designs. With adjustable high-pass and low-pass filters across multiple channels, EPICSIX allows precise tuning for active or passive setups, making it easy to adapt the amplifier to your design.

Features

Compact High-Power Class D Amplifier
High-Current Design - 2 ohms Stable
6 x 100 Watts @ 4 ohms
6 x 200 Watts @ 2 ohms
2 x 400 Watts @ 4 ohms Bridged (Ch. 3/4 and 5/6)
Fully Adjustable High-Pass and Low-Pass Filters
Smart Auto-Reset Protection Circuit

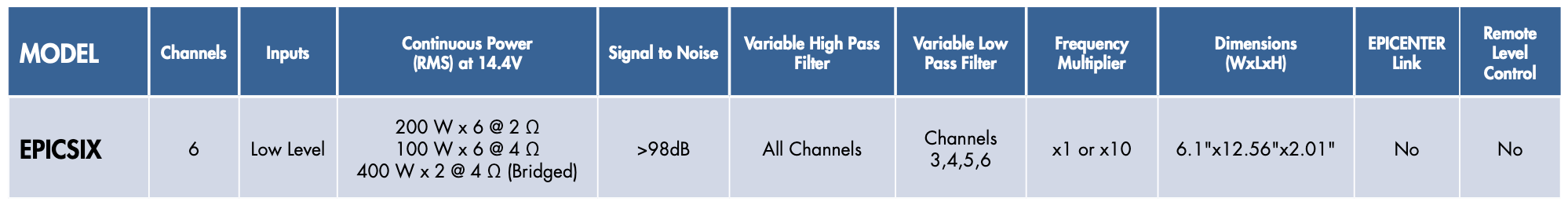

Specifications

Amplifier Topology: Class D
Power Output RMS (14.4V, <1% THD):
- 6 x 100 Watts @ 4 ohms
- 6 x 200 Watts @ 2 ohms
- 2 x 400 Watts @ 4 ohms Bridged
Frequency Response (+/- 3 dB): 10 Hz - 22 kHz
S/N Ratio: -98 dBa, Ref 100 Watts @ 4 ohms
Power / Ground Wire Gauge: 4 AWG
Recommended Fuse Rating: 125 Amps
High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 5000 Hz
Low Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 5000 Hz
Line-level Inputs: 500mV - 12V RMS
Speaker Terminal Wire Gauge: 10 AWG
Chassis Dimensions (LxWxH):
- 12.56 in. x 6.1 in. x 2.01 in.
- 319 mm x 155 mm x 51 mm
- Dimensions do not include connectors

*All specs are measured at 14.4 VDC (standard automotive voltage).
