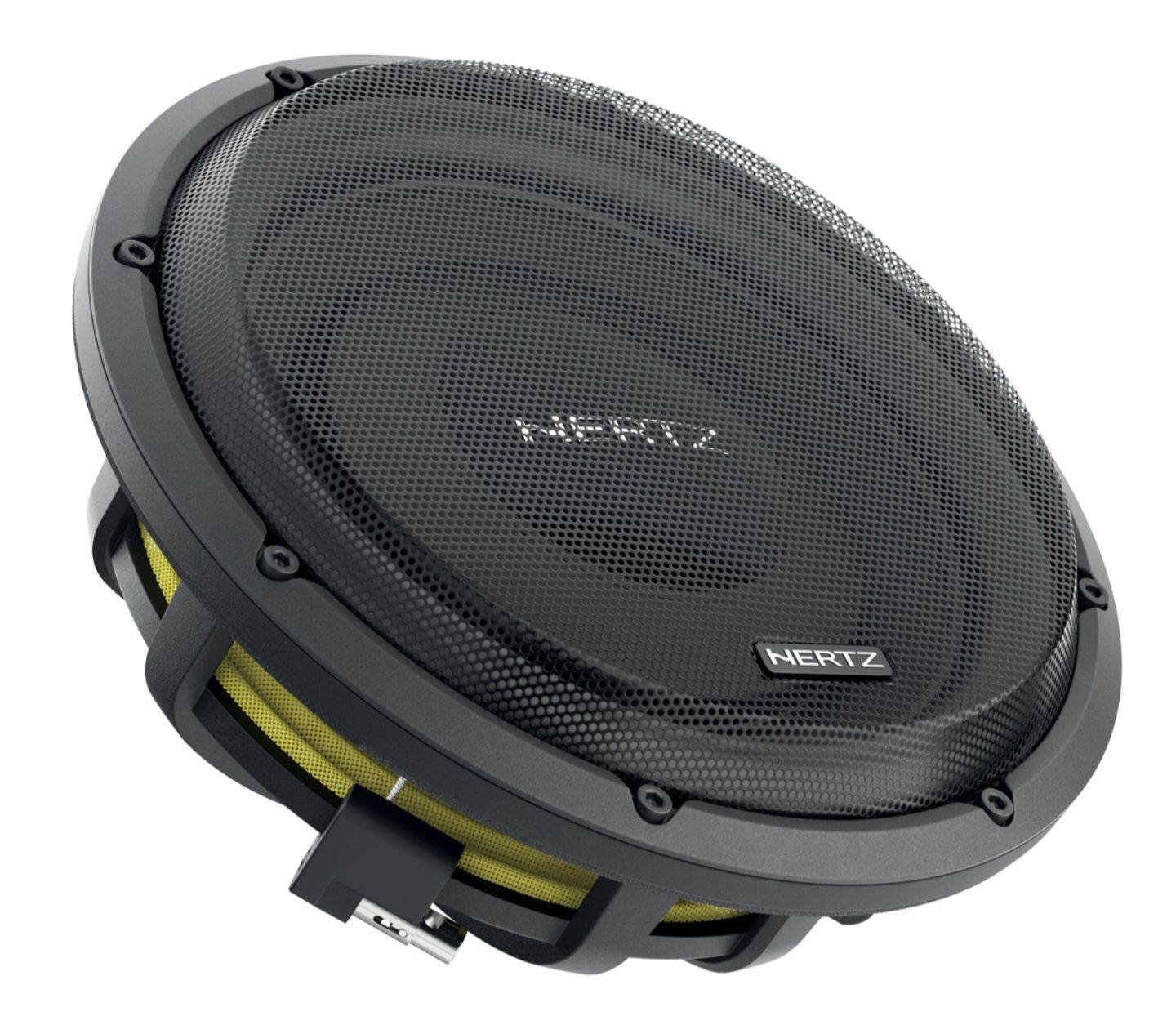

Hertz MPS 300 S4 12-Inch Shallow-Mount High-Performance Subwoofer

Product highlights:

• 12-inch 4-Ohm shallow-mount subwoofer
• polypropylene cone
• die-cast aluminum frame
• frequency response: 25-400 Hz
• power handling: 500 Watts RMS (1000 Wwatts peak)
• sensitivity: 84.5 dB
• top-mount depth: 3.5 inches
• mounting height: 1.8 inches
• sealed box volume: 0.8-1.2 cubic feet
• ported box volume: 0.9 cubic feet
• grille included
• warranty: 2 years
• MFR # MPS 300 S2

SEALED BOX

Sealed enclosure designs provide optimally damped response for tight and accurate bass reproduction offering high energy in the range 20 Hz - 40 Hz.

MPS 250 S4

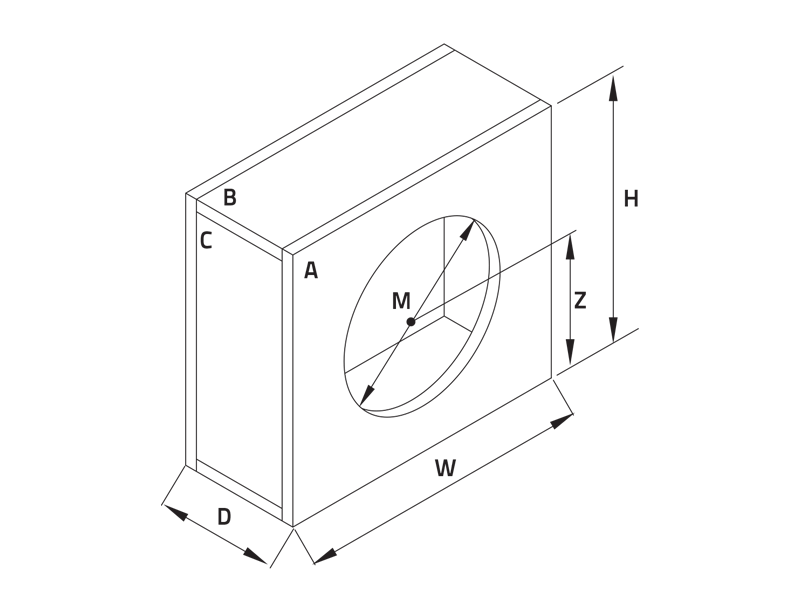

Box Tech Data - Sealed Box

Vb 14.2 L (0.5 cu ft)

Fc 49 Hz

Qtc 0.81

W 386 mm (15.20 in.)

H 352 mm (13.86 in.)

D 160 mm (6.30 in.)

Mounting Hole - M 232 mm (9.13 in.)

Wood Thickness 16 mm (0.63 in.)

Panels Cut List - Sealed Box

A 386 mm x 352 mm (15.20 in. x 13.86 in.) Qty 2

B 386 mm x 128 mm (15.20 in.x 5.04 in.) Qty 2

C 320 mm x 128 mm (12.60 in. x 5.04 in.) Qty 2
