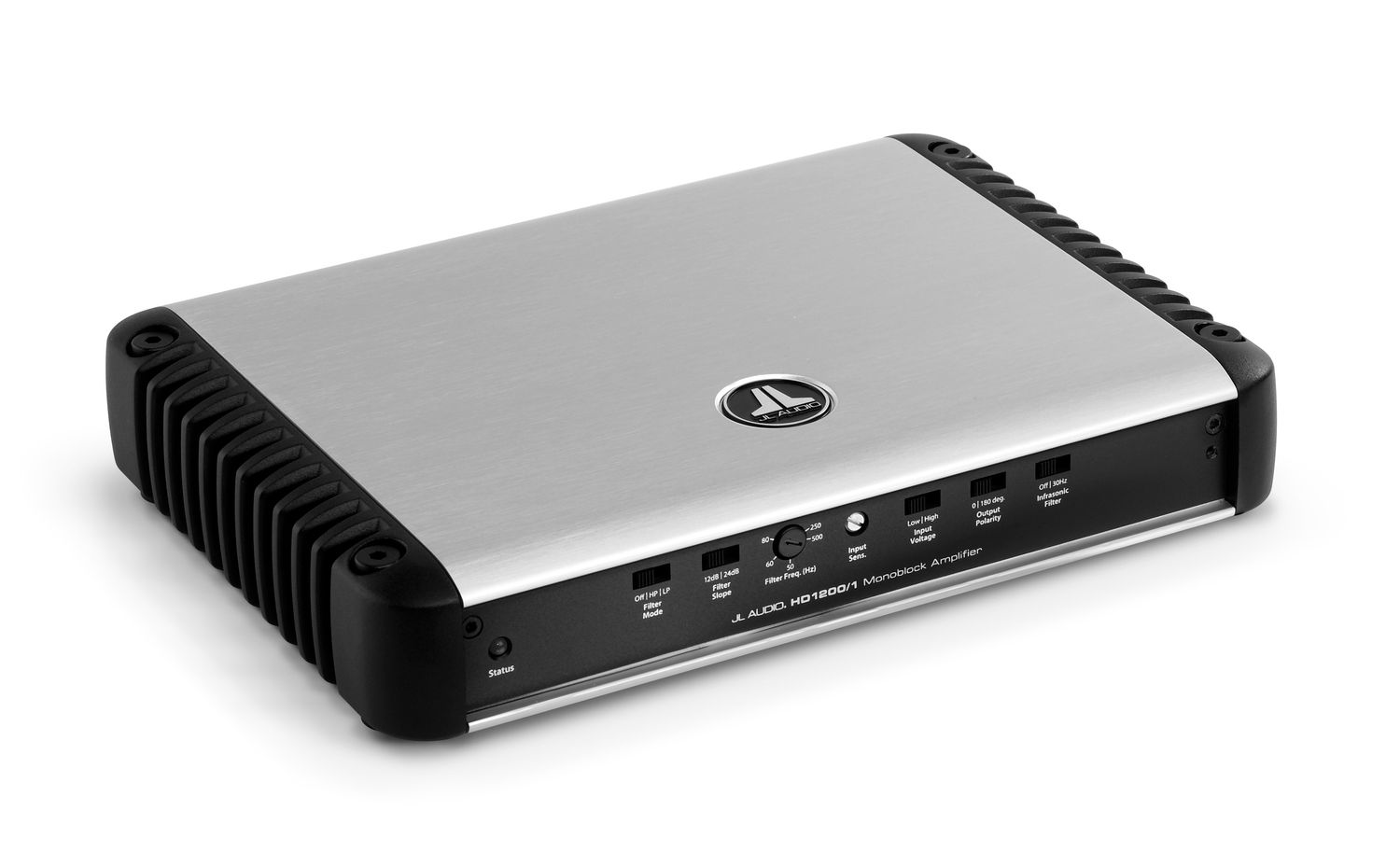

JL Audio HD1200/1 Monoblock 1200-Watt Amplifier

Combining groundbreaking JL Audio Single Cycle Control™ switching along with Regulated, Intelligent Power Supply (R.I.P.S.™) technologies, these HD stereo amplifiers deliver world-class, full-range fidelity and ultrapowerful output from a surprisingly small package.

Features

• Selectable 12- or 24-decibel/octave filter slope
• Removable power and speaker connectors
• Selectable input voltage: Low (200 mV to 2 V RMS) to High (800 mV to 8 V RMS)
• 2- or 4-channel input mode and selectable preamp output mode
• Two mounting options plus a space-saving stacking feature
• Two-year Manufacturer's warranty

BIG POWER, SMALL SIZE: Small size, minimal heat and lots of power-- Class-D amplifier design with innovative JL Audio switching technology applies output correction more than 400,000 times per second to deliver exceptional audio quality with reduced current draw and heat.

MAX POWER AT ANY VOLTAGE OR IMPEDANCE: Regulated, Intelligent Power Supply is a tightly controlled design that maintains full power output from any impedance between 1.5 and 4 Ohms per channel and at any supply voltage from 11 to 14.5 Volts.

STUDIO-GRADE SIGNAL PROCESSING: Selectable 12-decibel/octave (Butterworth) or steep 24-decibel/octave (Linkwitz-Riley) filters with calibrated potentiometer make it easy to extract optimum performance from your speaker and subwoofer systems.

ADVANCED ROLLBACK PROTECTION: A proprietary protection circuit monitors the amplifier's thermal condition, rolling back peak output power until the amplifier cools down to a safe operating temperature.

FLEXIBLE MOUNTING OPTIONS: For single or multiple amplifier installations, standard mounting screws with corner caps and lateral mounting feet are provided. An optional stacking kit is also available for mounting one amplifier atop another (sold separately, see JL Audio HD STACK KIT).

DIFFERENTIAL-BALANCED INPUTS: Combating induced cable noise, this technology allows for the use of conventional RCA cables while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.

REALSINK™ CHASSIS: Using vertical cast-alloy fins to dissipate heat effectively, the RealSink™ design requires no noisy fans and permits stacking without losing cooling ability.

R.I.P.S.™ POWER TECHNOLOGY: Regulated, Intelligent Power Supply is a technology designed to adjust the amplifier's operation and ensure full and consistent power delivery over a wide range of battery voltages and load impedances.

SINGLE CYCLE CONTROL™ TECHNOLOGY: Innovative JL Audio switching technology applies output correction more than 400,000 times per second to deliver exceptional audio quality with reduced current draw and heat.

Specifications

* With Total Harmonic Distortion (THD) of less than 1% (a measure of power output accuracy).

** Using analog inputs to compare the desired audio signal (via an A-weighted, 20 Hz-20 kHz noise bandwidth) to background noise (hiss) caused by the amplifier itself. The decibel value listed is the difference between the two (hence, the larger the value, the better the performance).

*** Optional, sold separately. See, for example, JL Audio Amplifier Remote Level Control and Cable (HD-RLC). Also, JL Audio notes: “The RBC-1 Remote Bass Control used with JL Audio Slash, Slash v2, e-Series, A-Series and G-Series amplifiers is NOT compatible with the HD Series amplifiers." See product manual for full details.

JL Audio notes: These amplifiers are designed for operation in vehicles with 12 V, negative-ground electrical systems. Use of these products in vehicles with positive ground and/or voltages other than 12 V may result in damage to the product and will void the warranty. These products are not certified or approved for use in aircraft. Many vehicles employ small (10 AWG at 6 AWG) wire to ground the battery to the vehicle chassis and to connect the alternator's positive connection to the battery. To prevent voltage drops, these wires should be upgraded to 4 AWG pure copper wire when installing amplifier systems with main fuse ratings above 60 A.

JL Audio does not recommend the use of "copper-clad aluminum wire" or " CCA" wire because such wire is significantly less conductive than pure copper wire. Only use pure copper wire, such as JL Audio's Premium Power Wire. Tinned copper wire (silver color) is acceptable as the tin-plating is only a very minor component of the wire.

The HD Series of amplifiers cannot be strapped, e.g., bridged externally. JL Audio warns, "Do not attempt to 'bridge' the outputs of the [HD Series] amplifier with the outputs of a second amplifier, including an identical one." Main front or rear channel bridging is available for the multi-channel HD amplifiers, see product manuals for specifics.

To ensure the HD Series amplifier's proper heat management and cooling, JL Audio recommends at least 1 inch (2.5 cm) of space above the amplifier's outer shell be provided if mounting under a seat. If enclosing the amplifier in a small, poorly ventilated chamber, JL Audio recommends a fan to aid ventilation. They also note, "In normal applications, fan-cooling is not necessary."

Due to continual development, product and specifications are subject to change without notice. Garmin, JL Audio and its agents are not responsible for typographical errors.

RMS = Root Mean Square, measure of continuous power in audio devices

Manufacturer's Documents:

DIMENSIONS, GENERAL for JL Audio HD Series Amplifiers

MANUAL for JL Audio HD1200/1 Monoblock Amplifier
