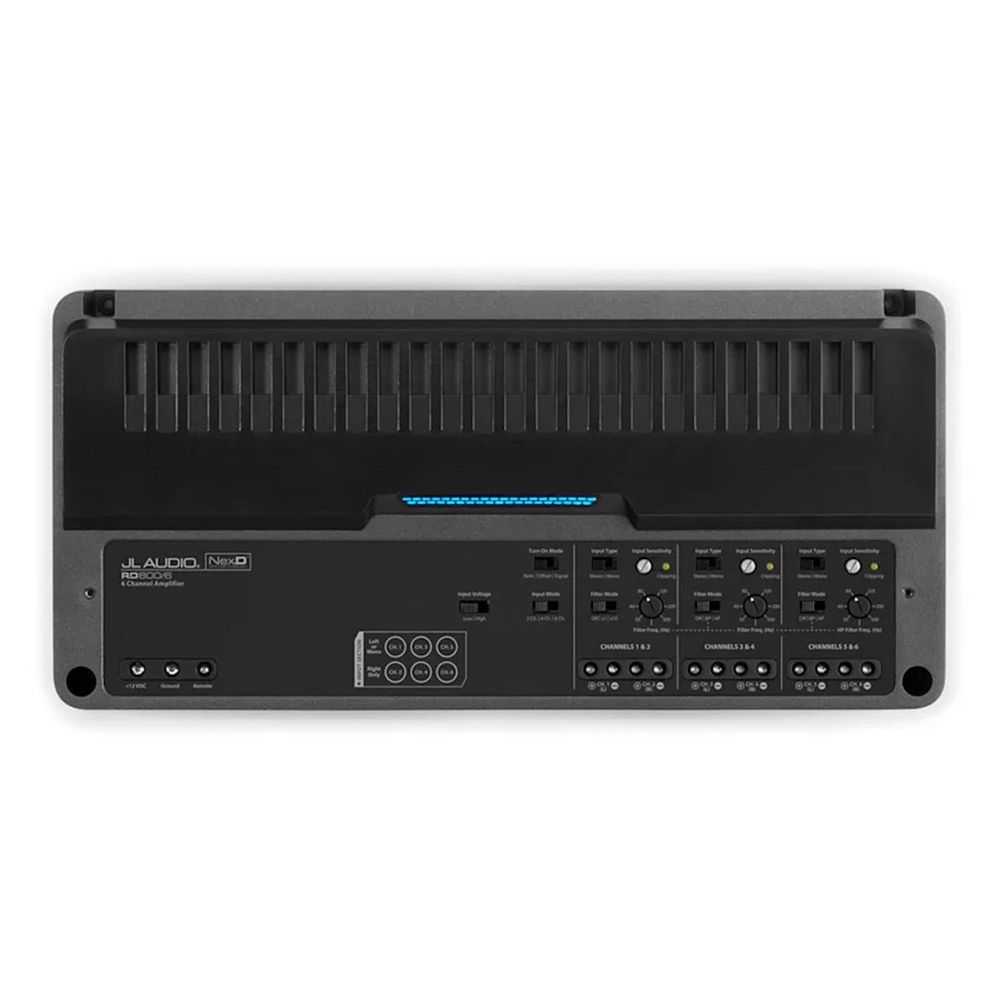

JL Audio RD800/6 6-Channel Full-Range 800W Amplifier
$649.99
4 payments of $162.50 with
In stock: 2 available
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
JL Audio RD800/6 6-Channel Full-Range 800W Amplifier
Product Details
Brand: JL Audio
JL Audio RD800/6
Clean, Powerful, and Reliable
The look is amazing, and the performance backs it up. These ultracompact full-range RD series amplifiers from JL Audio are engineered to generate loads of power with exceptional efficiency and low distortion. The result: premium audio quality with significantly reduced current draw and heat. Small size, minimal heat and lots of power - Class-D amplifier design offers significant advantages. And the NexD™ switching technology adds even more, using enhanced pulse width modulation techniques to boost the amplifier's bandwidth while minimizing distortion and improving efficiency.
Studio-Grade Signal Processing and Indicators
This RD series amplifier's signal processing features include high- or low-pass 12-decibel/octave filters for each channel pair, with continuously variable frequency selection from 50-œ500 Hz. The 6-channel model offers triple high-pass filters or full 3-way crossover capability. LED clipping indicators on the control panel let you quickly set each channel pair's input sensitivity, without the need for additional test equipment. With "input type" switches on the stereo channel sections, RD series amps can eliminate the need for Y-adapters when bridging stereo output channels.
Product Details:
- RD Series Class D 2 Ohm Stable 6-Channel Amplifier
- RMS Power Rating:
- 4 Ohm: 75 Watts x 4 channel
- 2 Ohm: 100 Watts x 4 channel
- Bridged: 400 Watts x 1 channel at 4 Ohm
- Total power output: 800 Watts
- Onboard LED clipping indicator rings
- Speaker-level (high-level) inputs (Requires JL Audio XD-CLRAIC2-SW)
- 3 turn on options (remote wire, signal sensing, or DC offset)
- Over temperature, ground short, speaker overcurrent protection
- 12 decibel per octave filter with variable crossover filter
- Selectable input voltage sensitivity for low/high levels
- Signal routing flexibility with selectable input mode and type
- Differential balanced inputs to reduce cable noise
- Features NexD switching technology
- Enhanced pulse width modulation techniques
- Boosted amplifier bandwidth with minimized distortion
- Studio-grade signal processing
- Input type switches on stereo channel selections
- Input sensitivity:
- Low level: 0.2 - 2 volts
- High level: 0.8 - 8 volts
- Frequency Response: 12 - 22000 Hz
- Total Harmonic Distortion (THD): 1%
- Signal to Noise Ratio: 84 dB
- Variable high-pass filter: 50 - 500 Hz
- Variable low-pass filter: 50 - 500 Hz
- Fuse Rating: 80A
- Recommended Fuse Types: AFS, AGU or MaxiFuse™
- 4 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 14.66" L x 6.96" W x 2.13" H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
