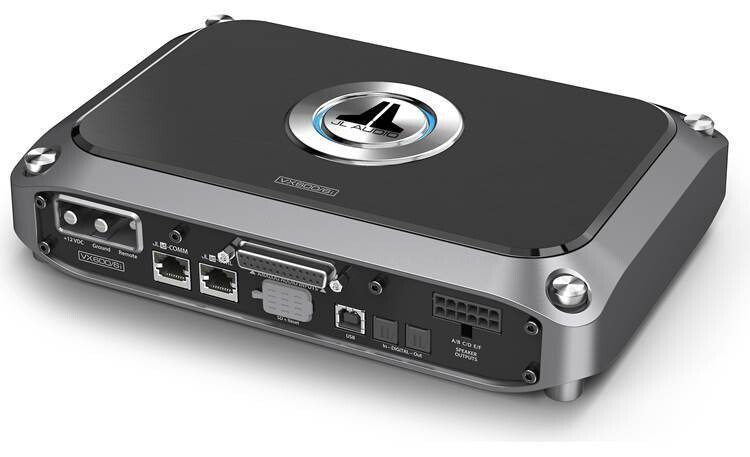

JL Audio VXi600/6i - 6-Channel Amplifier with Integrated Digital Sound Processor

We heard a lot of pre-launch buzzing about JL Audio's VXi Series amplifiers, which combine JL Audio's latest amplifier technology with powerful signal processing. JL Audio teamed up with micro-device maker AKM™ to create this customized processor-amp hybrid. They also improved the amp's Class D performance by shortening the signal path through the amp, placing the output capacitor banks nearer the outputs, and using up-to-date DirectFET® MOSFET output devices, resulting in higher efficiency, reliability, and audio quality.

Power and tune your whole system

The VXi600/6i 6-channel amplifier puts out 75 Watts RMS per channel and features 8 channels of digital signal processing, giving you incredible versatility. For example, you could power a system with 2-way front component speakers (tweeter and midrange woofer) and full-range rear speakers, plus provide a processed signal for a separate subwoofer amplifier. You could also use this amplifier in bridged, 3-channel mode to power front and rear speakers and a sub with 200 Watts RMS each.

Digital accuracy

The 24-bit 96 kHz processing for each channel includes signal routing and mixing, 10-band parametric EQ, time-alignment, high- and low-pass filters, and output level control with 0.1 dB precision. In addition to tuning the audio signal, the processor provides a master clock signal for the Class D amplification, increasing audio accuracy.

Remote control only

You make all your settings and adjustments from your compatible device running JL Audio's TüN™ software.

• PC and Mac OS: TüN™ 3.0 - requires a USB connection (6' cable included with amp)
• Android and iOS tablets: TüN™ Mobile - requires Bluetooth connection and the VXi-BTC Bluetooth communicator (sold separately)
• Android phones and Apple iPhones: TüN™ Express (for Basic setups only) - requires Bluetooth connection and the VXi-BTC Bluetooth communicator (sold separately)

Other accessories you may want with this amp

This VXi amplifier features JLid™ inter-device connection ports for JL Audio's proprietary network system for controlling data. The DRC-205 digital remote control lets you adjust the master volume, subwoofer level, switch between up to six preset tunings, and indicates the amp's status via LED. An optional VXi-HUB network hub comes in handy when you have three or more VXi amps in your system, coordinating all the adjustments and controls. A FiX 82 or a FiX 86 can be used to remove factory sound processing, for higher-fidelity factory system integration for your VXi amplifier.

Product highlights:

• 6-channel car amplifier
• 75 Watts RMS x 6 at 4 Ohms (100 Watts RMS x 6 at 2 Ohms)
• 200 Watts RMS x 3 bridged at 4 Ohms
• Class D amplifier design with NexD2™ switching amp technology

Digital Signal Processing:

• 24-bit 96 kHz digital processing
• DSP adjustments and settings made with JL Audio's TüN™ app (PC and Mac) via USB, via Bluetooth (tablets and phones) with BTC Bluetooth option
• 3 Project Levels of tuning: Basic, Advanced, Expert
• input routing and mixing
• adjustable gain controls with clip indication
• fully adjustable high-pass, low-pass, and bandpass filters
  • selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
• 10-band EQ (graphic in Basic, parametric in Advanced and Expert modes)
• phase and polarity control
• time alignment in 0.01 ms increments

Connection Features

• differential-balanced inputs eliminate noise coming from your vehicle's electrical system
• preamp and speaker-level inputs (adapter required for speaker-level input)
  • high-level inputs - up to 16 volts RMS (about 60 Watts)
  • DC offset or signal sensing auto turn-on eliminates need for remote lead
• 2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out)
• 2-channel analog preamp output (4V RMS)
• JLid™ connections for optional items
• USB connection for device running TüN™ app (6-foot cable included)
• wiring, fuse, and hardware not included with amplifier
  • 4-gauge power and ground leads and a 50-amp fuse recommended
• 9-13/16 inches W x 2-1/8 inches H x 6-3/4 inches D
• warranty: 2 years
