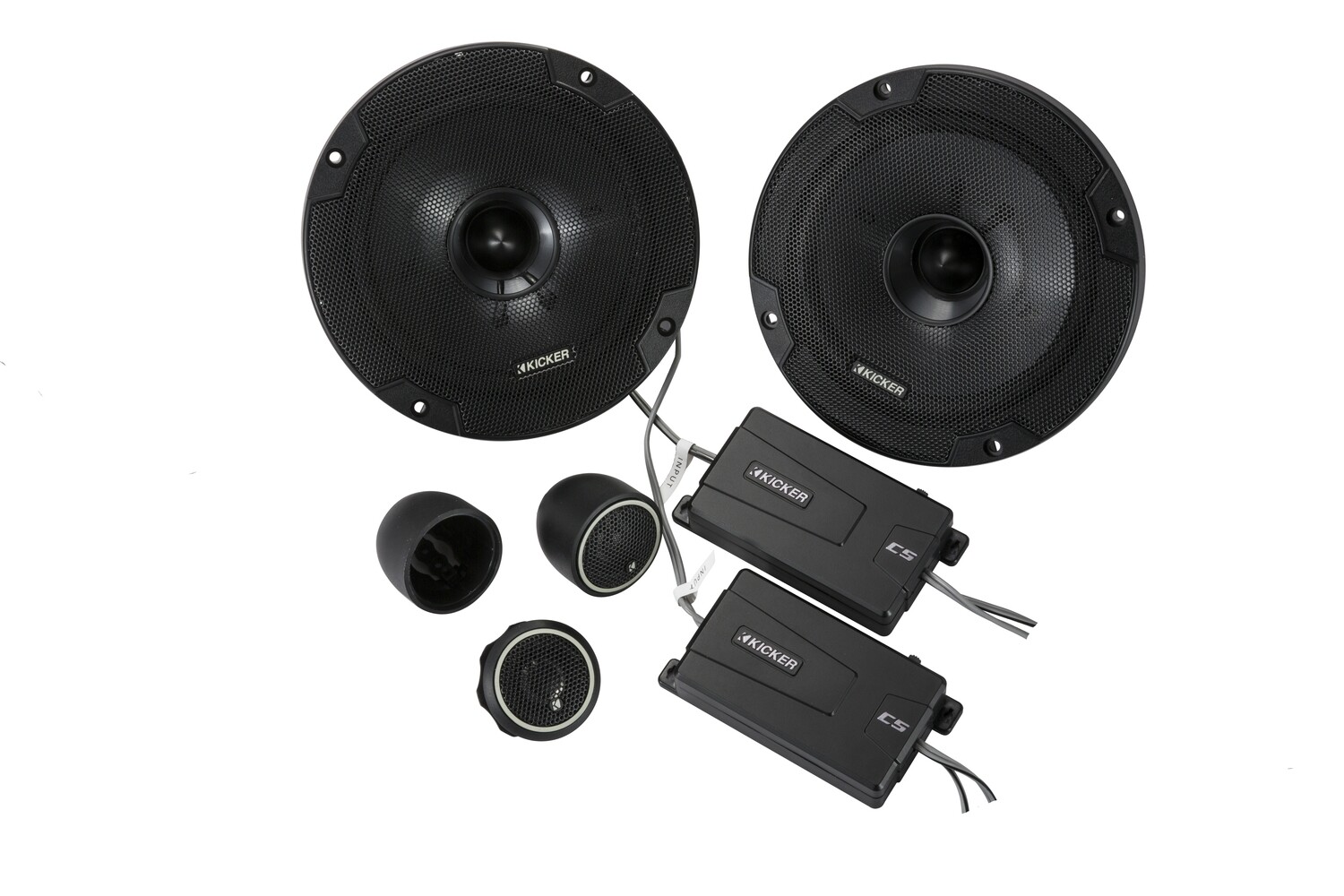

CS-Series 6.5-inch Component Speakers are built for awesome sound that plays as long as the ride takes you.
CS-Series components include titanium tweeters and two-way crossovers with a smooth 12dB slope and three-position tweeter adjustment switch (0dB/+3dB/+6dB), included in each external crossover. The optimized footprint means great sound with hassle-free installation, no matter where you mount it!
These CS speakers work best with 100 watts of recommended power. See below for more details.
| Woofer (inches) | 6-1/2 |
| Tweeter (inches) | 3/4 |
| Dome Material | Titanium |
| Rated Impedance [Ω] | 4 |
| Recommended Amplifier Power [Watts RMS] | 100 |
| Frequency Response [Hz] | 35-21k |
| Woofer Mounting Hole Diameter [in] | 4-13/16 |
| Woofer Bottom Mount Depth [in] | 1-11/16 |
| Flush Mount Tweeter Hole Diameter [in] | 1-9/16 |
| Flush Mount Tweeter Depth [in] | 9/16 |
| High Pass [dB], at Frequency [Hz] | 12, 4000 |
| LowPass [dB], at Frequency [Hz] | 12, 4000 |
| High Frequency Output Attenuation [dB} | 0, 3, 6 |
