Kicker CWCD124 CompC 12-Inch 4-Ohm DVC Subwoofer (50CWCD124)
$149.99
4 payments of $37.50 with
In stock
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

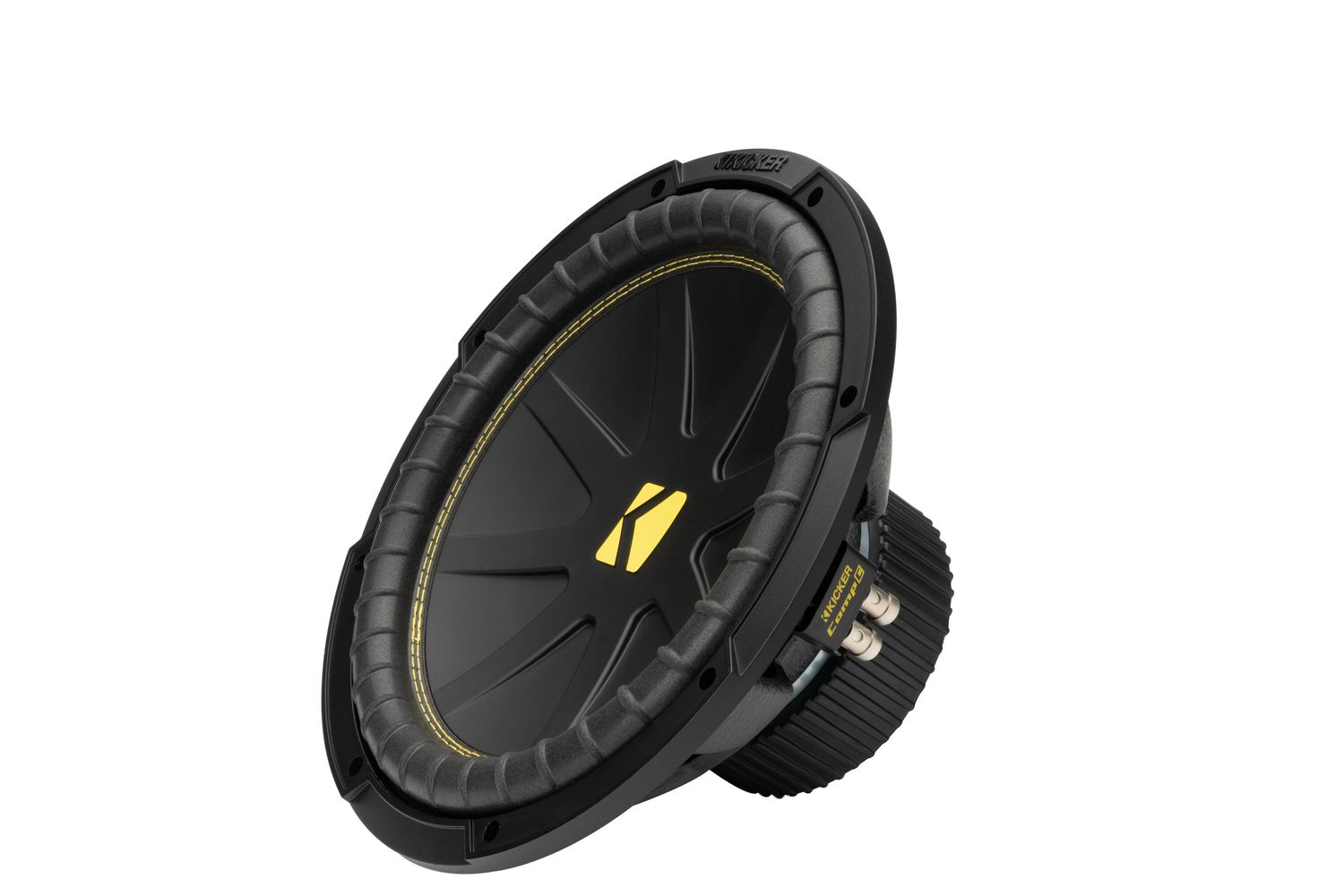

Kicker CWCD124 CompC 12-Inch 4-Ohm DVC Subwoofer (50CWCD124)
Product Details
Brand: Kicker
Subwoofer Size: 12
Kicker CWCD124 CompC 12-Inch, 4-Ohm Dual Voice Coils, Subwoofer
The perfect combination of performance and value, the Kicker CompC™ Subwoofer delivers the bump you’ve been craving!
The dual-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get.
Features
- Dual four-Ohm voice coils and reengineered for increased excursion and deeper bass
- Injection-molded polypropylene cone
- Forced-Air Cooling™ for outstanding durability
- Ribbed polyurethane surround
- Signature yellow surround stitching
- High-strength Spiralead™ tinsel leads
- Stamped steel basket
- High temp voice coil
- Spring-loaded speaker terminals
*Kicker notes: "The CompC 12-inch Subwoofer works best with a sealed or ported enclosure and 300 Watts of recommended power." See below for more details.
SPECIFICATIONS
|
Thiele/Small Parameters: see file, below |
|
Product Dimension Sheet: see file, below |
|
CNC Software: see file, below |
|
3D Printing Software: see file, below |
|
SIZE [in, cm]: 12 inches (30 cm) |
|
Rated Impedance [Ohms]: 4 DVC |
|
Recommended Amplifier Power (Watts RMS): 150 - 300 |
|
Peak Power (Watts): 600 |
|
SENSITIVITY [dB 1w/1m]: 87.1 |
|
Fs [Hz]: 30.6 |
|
Frequency Response [Hz]: 27 – 500 |
|
Outer Frame Dimensions [in, cm]: 12-5/8 inches (32 cm) |
|
Mounting Depth [in, cm]: 5-3/4 inches (14.6 cm) |
|
Mounting Cutout [in, cm]: 11 inches (27.9 cm) |
|
Max Sealed Box Vol [cu. ft, L]: 3.5 cubic feet (99.1 L) |
|
Min Sealed Box Vol [cu. ft, L]: 1.25 cubic feet (35.4 L) |
|
Max Vented Box Vol [cu. ft, L]: 2.25 cubic feet (63.7 L) |
|
Min Rec Vented Box Vol [cu. ft, L]: 1.75 cubic feet (49.6 L) |
|
Kicker Warranty |
|
Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of one (1) years from date of original purchase. |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your Kicker dealer for details.
**Port Volume Excluded.
Kicker notes: “Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.”
(RMS = Root Mean Square, measure of continuous power in audio devices)
MANUFACTURER’S DOCUMENTS
THIELE/SMALL (T/S) PARAMETERS for Kicker CWCD124 CompC 12-Inch 4-Ohm DVC Subwoofer
MANUAL for Kicker CWCD124 CompC 12-Inch 4-Ohm DVC Subwoofer
DIMENSIONS for Kicker CWCD124 CompC 12-Inch 4-Ohm DVC Subwoofer
CNC FILE for Kicker CWCD124 CompC 12-Inch 4-Ohm DVC Subwoofer - subwoofer hole cutouts
3D PRINT FILE for Kicker CWCD124 CompC 12-Inch 4-Ohm DVC Subwoofer - 3D printing of grille spacers
