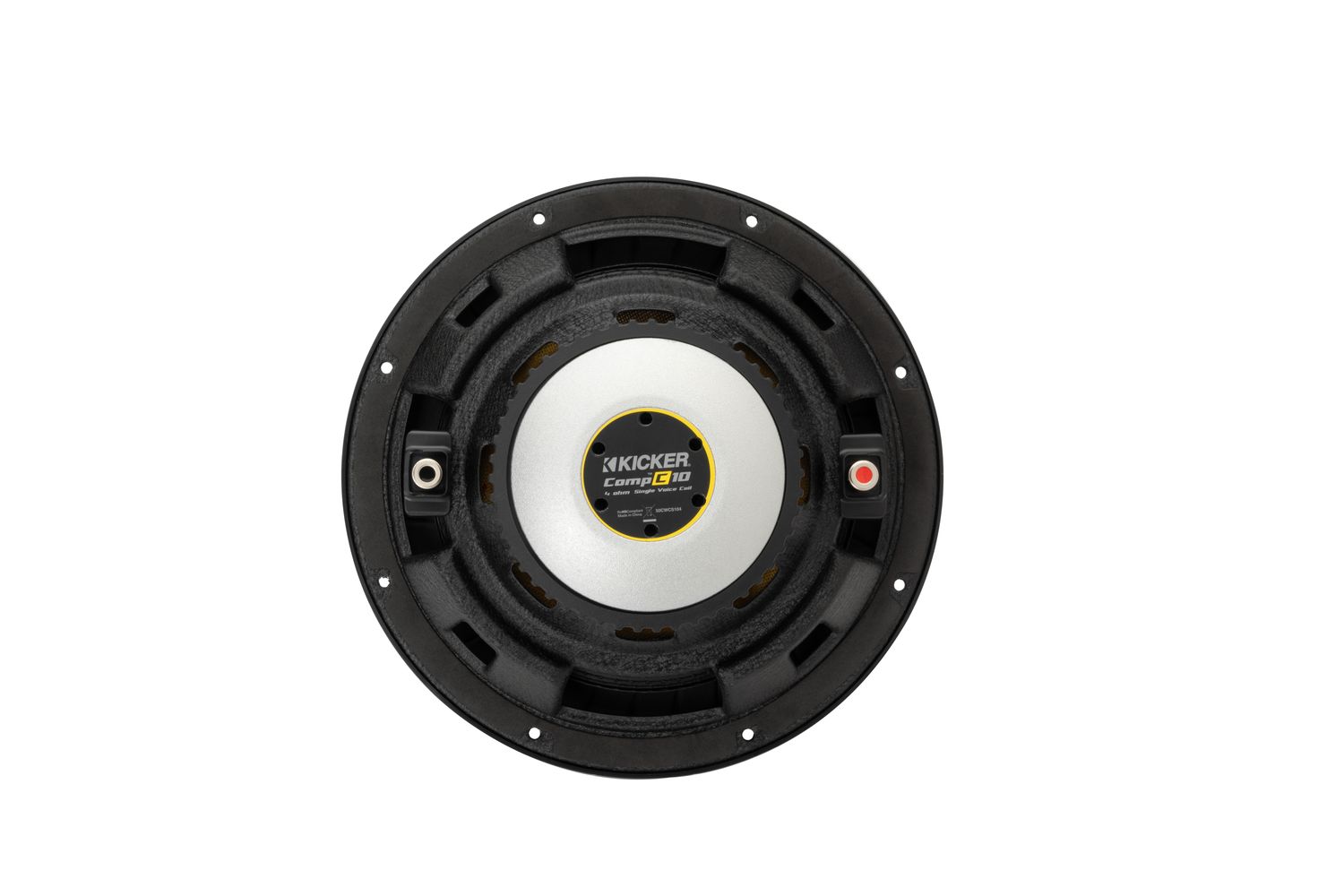

Kicker CWCS104 CompC 10-Inch 4-Ohm SVC Subwoofer (50CWCS104)
$129.99
4 payments of $32.50 with
In stock
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Kicker CWCS104 CompC 10-Inch 4-Ohm SVC Subwoofer (50CWCS104)
Product Details
Brand: Kicker
Subwoofer Size: 10
Kicker CWCS104 CompC 10-Inch, 4-Ohm Single Voice Coil, Subwoofer
The perfect combination of performance and value, the Kicker CompC™ Subwoofer delivers the bump you’ve been craving!
The single-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get.
Features
- Single four-Ohm voice coil (SVC) and reengineered for increased excursion and deeper bass
- Injection-molded polypropylene cone
- Forced-Air Cooling™ for outstanding durability
- Ribbed polyurethane surround
- Signature yellow surround stitching
- High-strength Spiralead™ tinsel leads
- Stamped steel basket
- High temp voice coil
- Spring-loaded speaker terminals
*Kicker notes: "The CompC 10-inch Subwoofer works best with a sealed or ported enclosure and 300 Watts of recommended power." See below for more details.
SPECIFICATIONS
|
Thiele/Small Parameters: see file, below |
|
Product Dimension Sheet: see file, below |
|
CNC Software: see file, below |
|
3D Printing Software: see file, below |
|
SIZE [in, cm]: 10 inches (25 cm) |
|
Rated Impedance [Ohms]: 4 SVC |
|
Recommended Amplifier Power (Watts RMS): 125 - 250 |
|
Peak Power (Watts): 500 |
|
SENSITIVITY [dB 1w/1m]: 85.2 |
|
Fs [Hz]: 35.1 |
|
Frequency Response [Hz]: 30 – 500 |
|
Outer Frame Dimensions [in, cm]: 10-11/16 inches (27.2 cm) |
|
Mounting Depth [in, cm]: 5-3/16 inches (13.2 cm) |
|
Mounting Cutout [in, cm]: 9-3/16 inches (23.3 cm) |
|
Max Sealed Box Vol [cu. ft, L]: 2.4 cubic feet (68 L) |
|
Min Sealed Box Vol [cu. ft, L]: 1.0 cubic feet (28.3 L) |
|
Max Vented Box Vol [cu. ft, L]: 1.75 cubic feet (49.6L) |
|
Min Rec Vented Box Vol [cu. ft, L]: 1.25 cubic feet (35.4 L) |
|
Kicker Warranty |
|
Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of one (1) years from date of original purchase. |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your Kicker dealer for details.
**Port Volume Excluded.
Kicker notes: “Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.”
(RMS = Root Mean Square, measure of continuous power in audio devices)
MANUFACTURER’S DOCUMENTS
THIELE/SMALL (T/S) PARAMETERS for Kicker CWCS104 CompC 10-Inch 4-Ohm SVC Subwoofer
MANUAL for Kicker CWCS104 CompC 10-Inch 4-Ohm SVC Subwoofer
DIMENSIONS for Kicker CWCS104 CompC 10-Inch 4-Ohm SVC Subwoofer
CNC TEMPLATE for Kicker CWCS104 CompC 10-Inch 4-Ohm SVC Subwoofer - subwoofer hole cutouts
3D PRINT TEMPLATE for Kicker CWCS104 CompC 10-Inch 4-Ohm SVC Subwoofer - 3D printing of grille spacers
