Name: Kicker CWCS84 CompC 8-Inch Subwoofer, 4-Ohm Single Voice Coil (SVC) (50CWCS84)
Brand: Kicker
SKU: K-145
Price: 99.99 USD
Availability: InStock

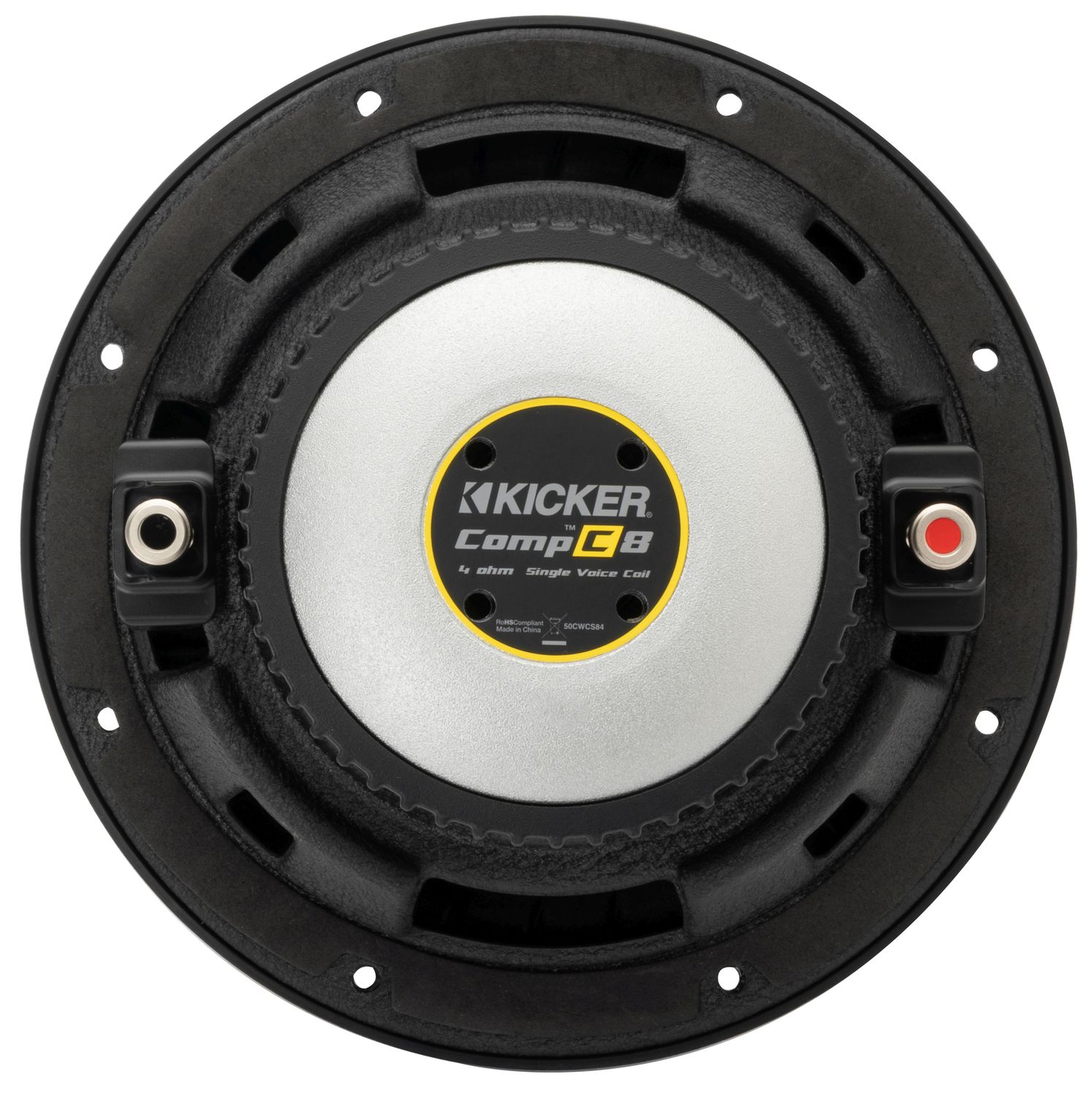

Kicker CWCS84 CompC 8-Inch 4-Ohm SVC Subwoofer, rear

Kicker CWCS84 CompC 8-Inch 4-Ohm SVC Subwoofer (50CWCS84)

Product Details

Brand: Kicker

Subwoofer Size: 8

Kicker CWCS84 CompC 8-Inch, 4-Ohm Single Voice Coil, Subwoofer

The perfect combination of performance and value, the Kicker CompC™ Subwoofer delivers the bump you’ve been craving! The single-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get.

Features

Single four-Ohm voice coil (SVC) and reengineered for increased excursion and deeper bass
Injection-molded polypropylene cone
Forced-Air Cooling™ for outstanding durability
Ribbed polyurethane surround
Signature yellow surround stitching
High-strength Spiralead™ tinsel leads
Stamped steel basket
High temp voice coil
Spring-loaded speaker terminals

*Kicker notes: "The CompC 8-inch Subwoofer works best with a sealed or ported enclosure and 200 Watts of recommended power." See below for more details.

SPECIFICATIONS

Thiele/Small Parameters: see file, below

Product Dimension Sheet: see file, below

CNC Software: see file, below

3D Printing Software: see file, below

SIZE [in, cm]: 8 inches (20 cm)

Rated Impedance [Ohms]: 4 SVC

Recommended Amplifier Power (Watts RMS): 100 - 200

Peak Power (Watts): 400

SENSITIVITY [dB 1w/1m]: 83.3

Fs [Hz]: 42.2

Frequency Response [Hz]: 30 – 500

Outer Frame Dimensions [in, cm]: 8-9/16 inches (21.7 cm)

Mounting Depth [in, cm]: 4-3/16 inches (10.5 cm)

Mounting Cutout [in, cm]: 6-15/16 inches (17.7 cm)

Max Sealed Box Vol [cu. ft, L]: 1.2 cubic feet (34 L)

Min Sealed Box Vol [cu. ft, L]: 0.5 cubic feet (14.2 L)

Max Vented Box Vol [cu. ft, L]: 1.2 cubic feet (34 L)

Min Rec Vented Box Vol [cu. ft, L]: 0.66 cubic feet (18.7 L)

Kicker Warranty

Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of one (1) years from date of original purchase.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your Kicker dealer for details.

**Port Volume Excluded.

Kicker notes: “Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.”

(RMS = Root Mean Square, measure of continuous power in audio devices)

MANUFACTURER’S DOCUMENTS

THIELE/SMALL (T/S) PARAMETERS for Kicker CWCS84 CompC 8-Inch 4-Ohm SVC Subwoofer

MANUAL for Kicker CWCS84 CompC 8-Inch 4-Ohm SVC Subwoofer

DIMENSIONS for Kicker CWCS84 CompC 8-Inch 4-Ohm SVC Subwoofer

CNC FILE for Kicker CWCS84 CompC 8-Inch 4-Ohm SVC Subwoofer - subwoofer hole cutouts

3D PRINT FILE for Kicker CWCS84 CompC 8-Inch 4-Ohm SVC Subwoofer - 3D printing of grille spacers
