Name: Kicker CWRT84 CompRT 8-Inch Shallow-Mount Subwoofer, 4-Ohm Dual Voice Coils (48CWRT84)
Brand: Kicker
SKU: TEMP-K-092
Price: 151.96 USD
Availability: InStock

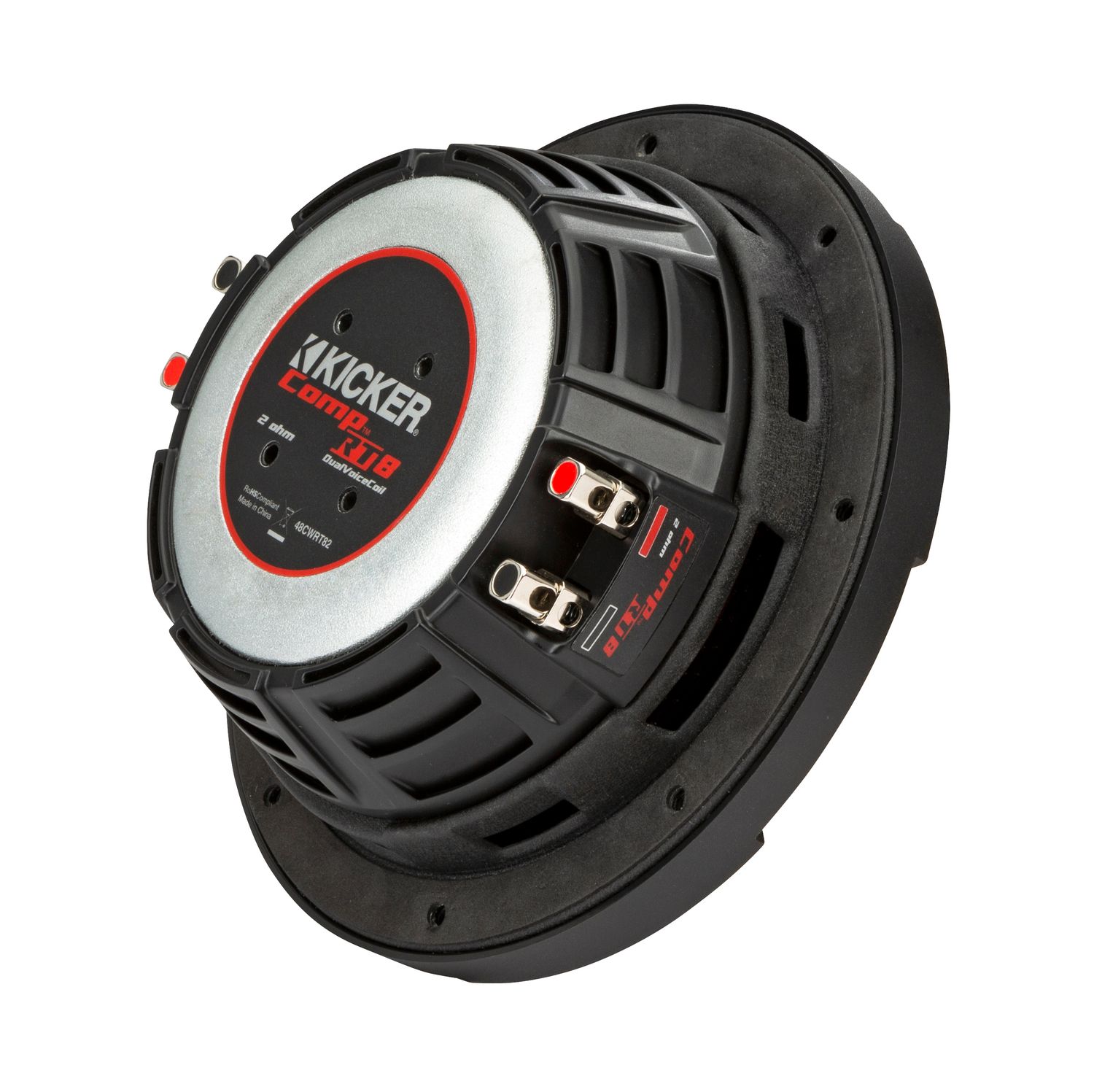

Kicker CWRT84 8-Inch DVC Subwoofer, rear-side (2-Ohm model shown)

Kicker CWRT84 CompRT 8-Inch Shallow-Mount Subwoofer, 4-Ohm Dual Voice Coils (48CWRT84)

Product Details

Brand: Kicker

Subwoofer Size: 8

Kicker CWRT84 CompRT 8-Inch Shallow-Mount Subwoofer, 4-Ohm Dual Voice Coil (DVC)

The CompRT® line of ultra-thin subwoofers fits under your seat or behind your back bench with ease. Now even more efficient and sporting a slick, blacked-out cone, the CompRT gives you all the bass in very little space!

The CompRT 8-inch Subwoofer is an all-weather thin subwoofer with a pair of 4-Ohm voice coils. With a mounting depth under four inches and plenty of power handling, this go-anywhere sub is as flexible as it is powerful. A UV-resistant cone and surround help make the CompRT sound great wherever the road (or trail) takes you.

It takes serious know-how for a thin subwoofer to deliver super-deep bass. Our signature red double stitching makes an outstanding bond between the improved Santoprene™ surround and polypropylene woofer cone. With our custom SoloKon™ technology and the CompRT’s unique framework, the sub sounds fat – but keeps it thin! To make our subs even more reliable, Kicker engineers developed Forced-Air Cooling™ to help our subs run 20 percent cooler than before.

The CompRT 8-inch Subwoofer works best with a sealed enclosure and 300 Watts of recommended power. See below for more details.

Also available in 2-Ohm 8-inch model, see Kicker CWRT82

RELATED PRODUCTS:

Kicker CWR8G 8-inch CompR grille

Kicker KEY5001 Smart Sub Amp/Processor

Kicker KS Speakers Component and Coaxial Speakers

Kicker Passive Radiators Bass ReFLEX™ Passive Radiators

SPECIFICATIONS

Thiele/Small Parameters:see file, below

Product Dimension Sheet: see file, below

CNC Software: see file, below

3D Printing Software: see file, below

SIZE [in, cm]: 8 inches(20 cm)

IMPEDANCE [Ohms]: 4 DVC

Recommended Amplifier Power (Watts RMS): 300

Peak Power (Watts, per ANSI/CTA-2031-A): 600

SENSITIVITY [dB 1w/1m]: 81.8

MOUNTING DEPTH [in, cm]: 2-11/16 inches(6.7 cm)

MOUNTING DIAMETER [in, cm]: 7 inches (17.7 cm)

MIN SEALED BOX VOL [cu. ft, L]: 0.2 cubic feet(5.66 L)

MAX SEALED BOX VOL [cu. ft, L]: 1.0 cubic feet(28.32 L)

MIN VENTED BOX VOL [cu. ft, L]: 0.8 cubic feet(22.7 L)

MAX VENTED BOX VOL [cu. ft, L]: 1.2 cubic feet(34 L)

Kicker Warranty

When purchased from an Authorized Kicker Dealer or kicker.com, Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of one (1) years from date of original purchase.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your Kicker dealer for details.

**Port Volume Excluded.

Kicker notes:“Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.”

(RMS = Root Mean Square, measure of continuous power in audio devices)

MANUFACTURER’S DOCUMENTS

THIELE/SMALL (T/S) PARAMETERS for Kicker CWRT84 8-Inch 4-Ohm DVC Subwoofer

MANUAL for Kicker CWRT84 8-Inch DVC Subwoofer

DIMENSIONS for Kicker CWRT84 8-Inch DVC Subwoofer

CNC FILE for Kicker CWRT84 8-Inch DVC Subwoofer, subwoofer hole cutouts

3D PRINT FILE for Kicker CWRT84 8-Inch DVC Subwoofer, 3D printing of grille spacers
