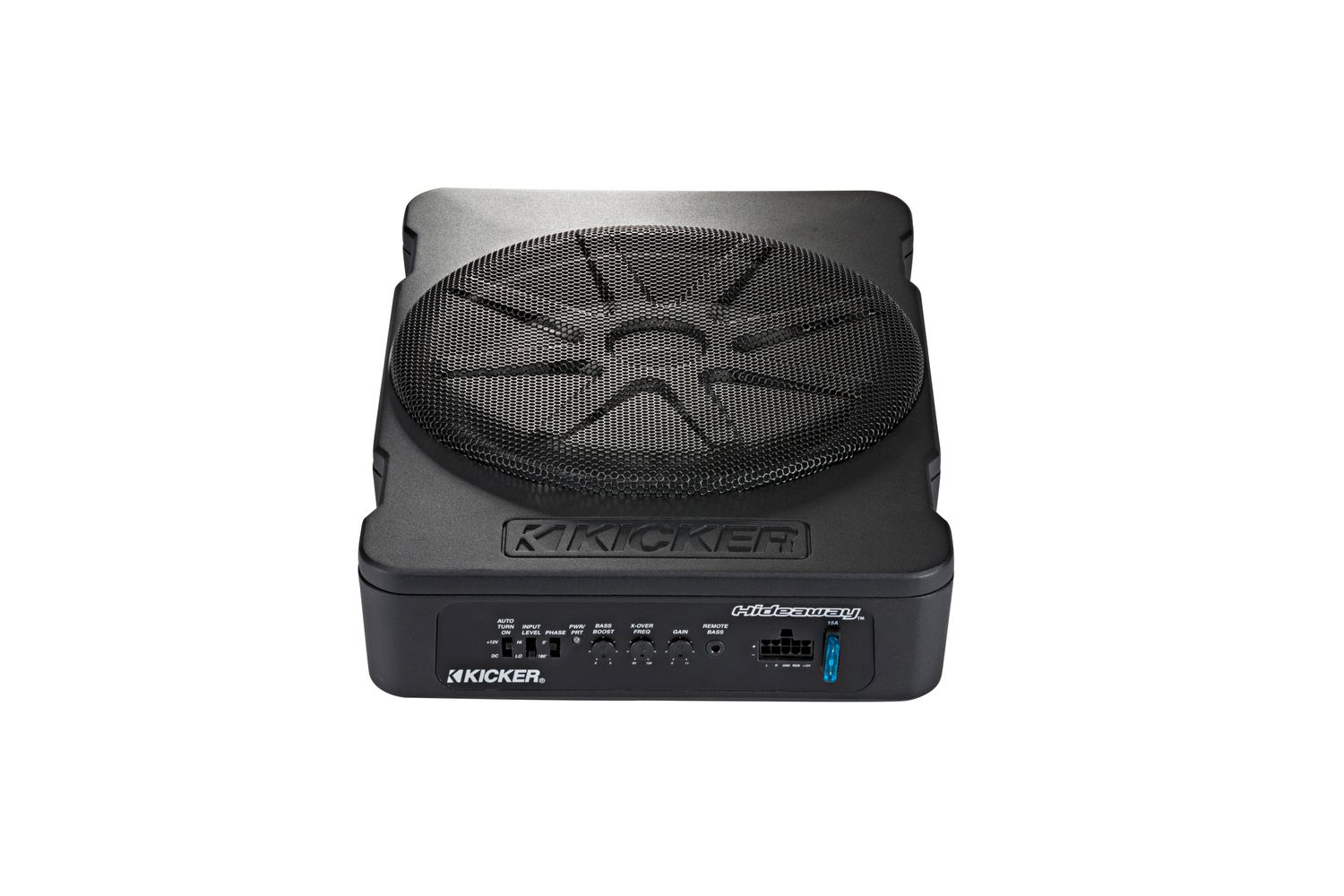

The Hideaway HS10 is a compact powered 10-inch subwoofer that delivers surprising low frequency impact in a tough, all-aluminum frame.
Kicker innovates once again, with FIT+â„¢ (Fail-safe Integration Technology PLUS). Accepting input signals ranging from a mere 0.25 Volt to as high as 40 Volts (400 Watts at 4 Ohm) and fully compatible with newer vehicles using start/stop systems, the HS10 works with almost any vehicle on the road today without the added expense of a line output converter.
The included remote control allows you to change the amount of bass without changing the radio volume, for the perfect mixture of bass in your music at any volume.
If you have two mono amps or powered subwoofers, check out the Kicker DBRC Remote for controlling both from the same knob.
• Includes a remote control allowing you to change the amount of bass without changing the radio volume, for the perfect mixture of bass in your music at any volume.
• A mere two millimeters taller than its little brother the HS8, the HS10 delivers more power and a bigger impact in an all-aluminum frame.
• The Hideaway comes with an adjustable low-pass crossover, variable +6 dB bass boost, phase switch, and two auto turn-on options: DC-offset or signal sensing.
• The quick-connect Molex® plug and harness includes power, signal and remote turn-on. It also features high- and low-level inputs for integration with nearly any factory or aftermarket head unit, plus two automatic turn-on options for incredibly easy activation.
|
Subwoofer (in, cm): 10 inches (25cm) |
|
RMS Power (Watts): 180 |
|
Frequency response (Hz): 25-120 |
|
Crossover: |
|
12dB/octave Lowpass 50–120 Hz
|
|
Phase Switch: 0°/180° |
|
Input Sensitivity: |
|
Low level – 250 mV-10 V
|
|
KickEQ Boost: variable to +6 dB at 40 Hz |
|
Remote Bass: Included |
|
Box Depth (in, cm): 14 inches(35.6 cm) |
|
Box Height (in, cm): 3-1/8 inches(8.1 cm) |
|
Box Width (in, cm): 9-7/8 inches(24.9 cm) |
|
Weight (lbs, kg): 11.2 lbs(5.17 kg) |
|
Wiring harness |
|
17 feet power input/ 8 feet speaker-level input/ 2 feet ground/ 2 feet remote turn-on |
|
Kicker Warranty |
|
When purchased from an Authorized Kicker Dealer or kicker.com, Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of two (2) years from date of original purchase. (RMS = Root Mean Square, measure of continuous power in audio devices) MANUFACTURER’S DOCUMENTSMANUAL for Kicker Hideaway HS10 catb v1 6.3.26/ PMAP 6,7 |
