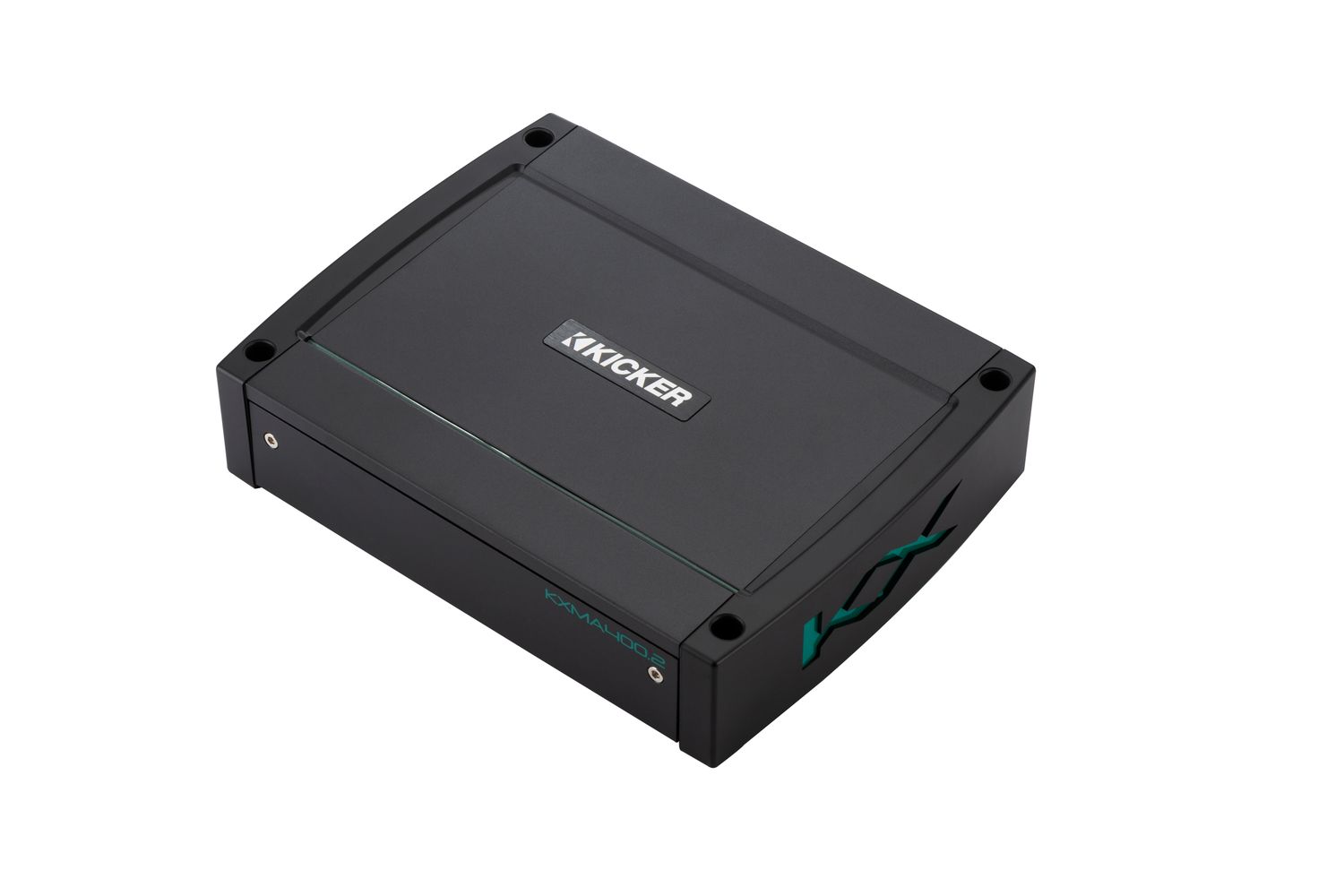

Kicker KXMA500.4 Multichannel Marine Amplifier

KXMA Amps are built for the outdoors. Gain, crossover and bass-boost controls are protected behind a gasket-sealed panel, as is the control cover hiding the settings, creating a water-resistant barrier to key controls.

The Kicker REAL MARINEâ„¢ standard means your amplifier is purpose-built for your boat. Every KXMA (and KMA) Series amp comes complete with anti-corrosive speaker, power and RCA terminals, stainless-steel screws, conformal-coated circuit boards and ABYC/NMMA-compliant power connections. Kicker products also undergo rigorous testing to ensure they meet or exceed marine industry standards for UV, humidity and saltwater exposure. This unparalleled commitment to engineering quality and maritime safety is why their products truly are "REAL MARINEâ„¢."

KickEQâ„¢ delivers as much as an 6 dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection. A full-range RCA output allows you to easily add another amplifier without running new signal cable to your Kicker KMC Media Center (for example, KMC5 or KMC2).

Features

• Class D amplifier
• Gain control with "Gain Match" LED indicator
• FIT2â„¢ (Fail-safe Integration Technology) circuitry
• Variable 24 dB crossover
• DSP-controlled preamp
• KickEQâ„¢ 6 dB variable bass boost
• ABYC/NMMA-compliant power terminals
• Conformal-coated circuit board to resist moisture
• Easy access to settings behind gasket-sealed cover panel
• Black anodized aluminum chassis
• Top-mounted teal LED light pipe
• Stainless-steel mounting hardware included

Kicker notes, “This KXMA amplifier delivers as much as 125 Watts into four full-range channels or 250 Watts into two sets of bridged channels.” See below for more details.

You may also like this related product: Kicker Marine Amp Power Kit (in 4-Gauge and 8-Gauge)

Specifications

*RMS Power test at 14.4 V at <1% THD+N, Audio Precision™ APx500 analyzer, see Kicker Amplifier Power Testing document here for details. See full discussion of Kicker’s amp testing procedures here.

**Dynamic Power test at 14.4 V at <10% THD+N, Audio Precision™ APx500 analyzer, see Kicker Amplifier Power Testing document here for details. See full discussion of Kicker’s amp testing procedures here.

Audio Precisionâ„¢ is a registered trademark of Audio Precision in the United States and other countries.

RMS = Root Mean Square, measure of continuous power in audio devices

THD+N = Total Harmonic Distortion (THD, amount of unwanted frequencies, i.e., distortion) plus Noise (N, all sounds coming from the device other than the input signal). THD+N assesses device sound fidelity.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.

Important Safety Information

When installing Kicker amplifiers (car or marine) in a boat or other vehicle/environment where flammable fuel vapors can accumulate rather than dissipate, you must use appropriate MARINE fuses (such as, Kicker 47MRBF40, 47MRBF60, 47MRBF80, 47MRBF100, 47MRBF125, 47MRBF150, 47MRBF200, 47MRBF300), MARINE fuse holders (such as, Kicker 47KMFMF) and MARINE wiring (such as, Kicker 47KMWP050, 47KMWP4100, 47KMWP420, 47KMWP820, in red [47KMWPR] and yellow [47KMWPY]) to minimize the risk of fire or explosion.

Manufacturer's Documents

MANUAL for Kicker KXMA5004 Amplifier

WHITE PAPER for Kicker KXMA5004 Amplifier

INFO-SHEET for Kicker KXMA Amplifiers
