Name: Kicker KXMA900.5 5-Channel Marine Amplifier (48KXMA9005)
Brand: Kicker
SKU: K-608
Price: 719.99 USD
Availability: InStock

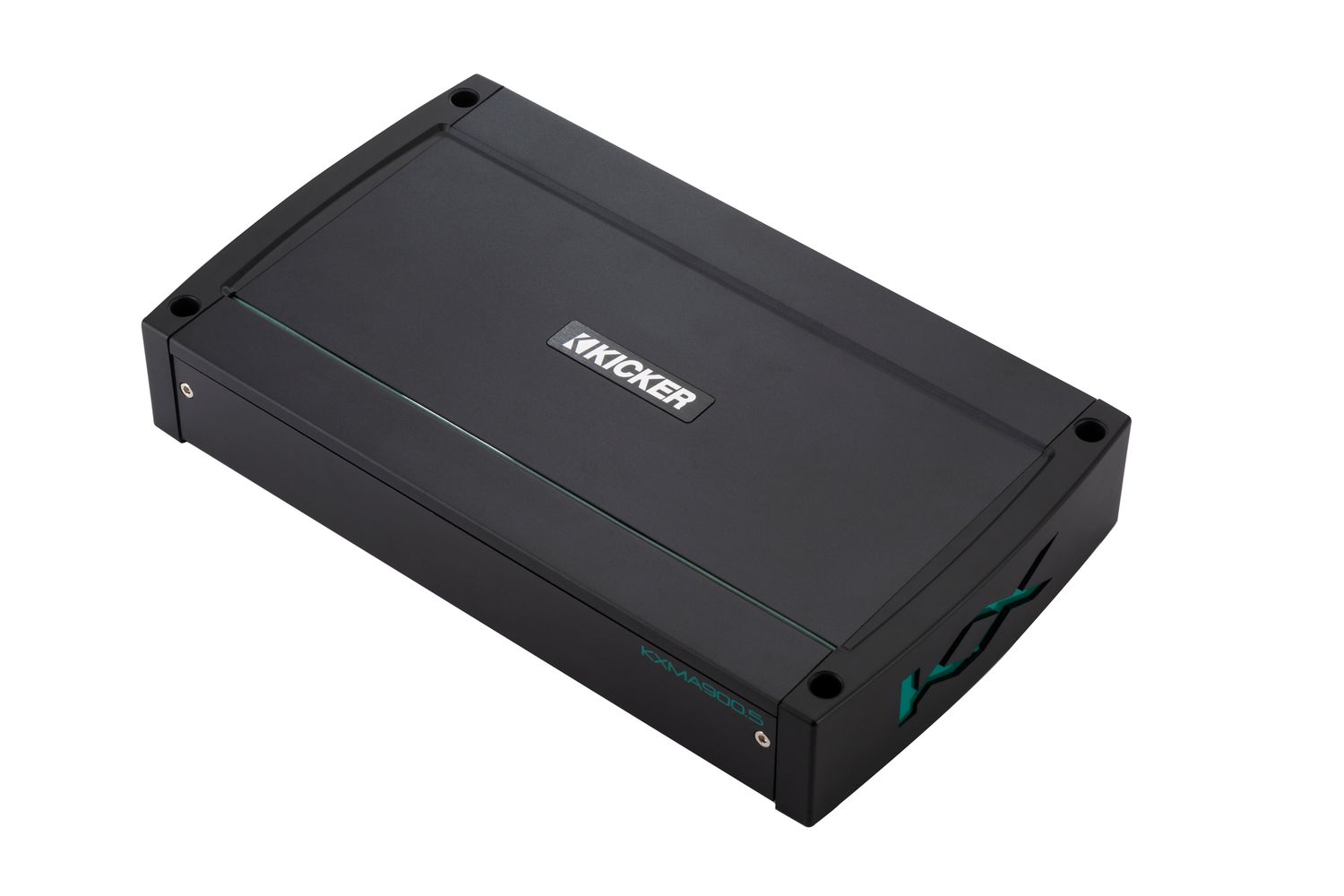

Kicker KXMA9005 Amplifier, top-front, with front panel closed

Kicker KXMA900.5 Marine 5-Channel Amplifier (48KXMA9005)

Product Details

Brand: Kicker

Amplifier Channels: 5

Kicker KXMA900.5 Marine 5-Channel Amplifier

The Kicker KXMA 5-channel marine amp delivers power and performance with a full-system solution in a single, powerful amplifier.

The Kicker REAL MARINE® standard means your amplifier is purpose-built for your boat. Every KXMA (and KMA) Series amp comes complete with anti-corrosive speaker, power and RCA terminals, stainless-steel screws, conformal-coated circuit boards and ABYC/NMMA-compliant power connections. Kicker products also undergo rigorous testing to ensure they meet or exceed marine industry standards for UV, humidity and saltwater exposure. This unparalleled commitment to engineering quality and maritime safety is why their products truly are "REAL MARINE.®"

Gain, crossover and bass-boost controls are protected behind a gasket-sealed panel, as is the control cover hiding the settings, creating a water-resistant barrier to key controls. KickEQ™ delivers as much as an 6 dB of extra bump with a simple turn of the knob. A powerful 24 dB crossover is also included, letting you quickly tune your system to perfection.

A wired bass controller is also included for perfecting your sound on the fly. Easily adjust the levels of your subwoofer channel without leaving your seat!

Features

Class D amplifier
Gain control with "Gain Match" LED indicator
FIT2™ (Fail-safe Integration Technology) circuitry
Variable 24 dB crossover
DSP-controlled preamp
KickEQ™ 6 dB variable bass boost
ABYC/NMMA-compliant power terminals
Conformal-coated circuit board to resist moisture
Easy access to settings behind gasket-sealed cover panel
Black anodized aluminum chassis
Top-mounted teal LED light pipe
Stainless-steel mounting hardware included

Kicker notes, "This KXMA amplifier delivers as much as 125 Watts into four full-range channels or 250 Watts into 4-Ohm bridged channels. A separate subwoofer channel delivers as much as 400."

Specifications

See files, below: MANUAL, WHITE PAPER, etc.

Power (Watts/ch), 2 Ohm Stereo:* 125 x 4

Power (Watts/ch), 4 Ohm Stereo:* 75 x 4

Power (Watts/ch), 4 Ohm Bridged Mono:* 250 x 2

Sub Channel Power (Watts/ch):*
4 Ohm power: 200 x 1 at 1% THD+N
2 Ohm power: 400 x 1 at 1% THD+N
1 Ohm power: 400 x 1 at 1% THD+N

Dynamic Power (Watts):** 1300

Frequency Response (Hz, +0/-1 dB): (Amp 1 and 2) 10 - 20k; (mono) 10 - 160

Input Sensitivity: High Level 250 mV - 10 V; Low Level 125 mV - 5 V

Signal-To-Noise Ratio: >95 dB, a-weighted, re: rated power

Active Crossover:

Full range (Amp 1): 24 dB/octave, variable 10 - 5k Hz with 10x switch, selectable high pass, low pass or off
Amp 2: 24 dB/octave, variable high pass 10 - 500 Hz, variable low pass 40 - 5k Hz with 10x switch, selectable high pass, low pass, off or band pass
Sub channel: -24 dB/octave, variable 40 - 160 Hz, low pass only

Subsonic Filter (KXMA.5): (mono only) high pass variable 10 - 80 Hz

KickEQ™ Boost: (mono only) variable 0 - 6 dB, centered at 40 Hz

Dimensions (in, cm): W: 8-5/16 inches, 21.0 cm; H: 2-1/8 inches, 5.5 cm; L: 12-3/4 inches, 32.4 cm

Wired remote: Yes, included

Warranty

Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of three years from date of original purchase.

*RMS Power test at 14.4 V at <1% THD+N, Audio Precision™ APx500 analyzer, see Kicker Amplifier Power Testing document here for details. See full discussion of Kicker's amp testing procedures here.

**Dynamic Power test at 14.4 V at <10% THD+N, Audio Precision™ APx500 analyzer, see Kicker Amplifier Power Testing document here for details. See full discussion of Kicker's amp testing procedures here.

Audio Precision™ is a registered trademark of Audio Precision in the United States and other countries.

RMS = Root Mean Square, measure of continuous power in audio devices

THD+N = Total Harmonic Distortion (THD, amount of unwanted frequencies, i.e., distortion) plus Noise (N, all sounds coming from the device other than the input signal). THD+N assesses device sound fidelity.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.

Important Safety Information

When installing Kicker amplifiers (car or marine) in a boat or other vehicle/environment where flammable fuel vapors can accumulate rather than dissipate, you must use appropriate MARINE fuses (such as, Kicker 47MRBF40, 47MRBF60, 47MRBF80, 47MRBF100, 47MRBF125, 47MRBF150, 47MRBF200, 47MRBF300), MARINE fuse holders (such as, Kicker 47KMFMF) and MARINE wiring (such as, Kicker 47KMWP050, 47KMWP4100, 47KMWP420, 47KMWP820, in red [47KMWPR] and yellow [47KMWPY]) to minimize the risk of fire or explosion.

Manufacturer's Documents

MANUAL for Kicker KXMA9005 Amplifier

WHITE PAPER for Kicker KXMA9005 Amplifier

INFO-SHEET for Kicker KXMA9005 5-Channel Amplifier

INFO-SHEET for Kicker KXMA Amplifiers
