Name: Kicker L7S102 10-Inch 2-Ohm Subwoofer (44L7S102)
Brand: Kicker
SKU: 98907
Price: 269.96 USD
Availability: InStock

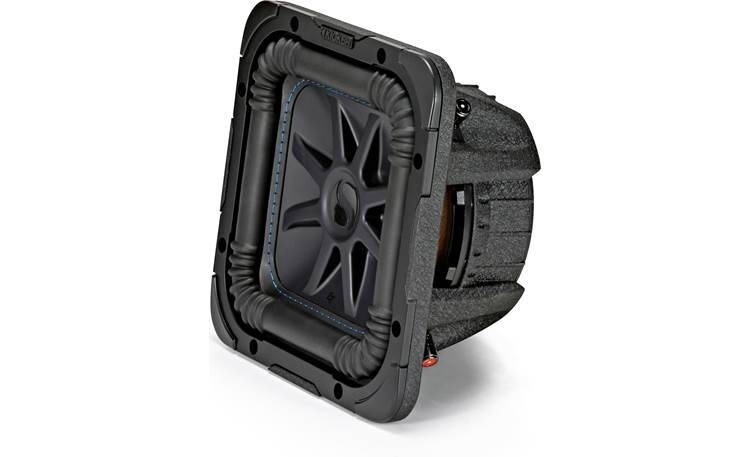

Kicker L7S102 10-Inch Subwoofer, 2 Ohm, front-side angle

Kicker L7S102 Solo-Baric 10-Inch 2-Ohm DVC Subwoofer (44L7S102)

Product Details

Brand: Kicker

Subwoofer Size: 10

Kicker L7S102 Solo-Baric 10-Inch, 2-Ohm Dual Voice Coil, Subwoofer

The Solo-Baric L7S's square sub design delivers dependable bass - even when pushed to the limit. Dual voice coils with high-temp copper windings easily handle intense heat and power levels for clean, clear bass anytime.

FEATURES

Dual 2-Ohm voice coils
Injection-molded polypropylene cone
Patented corner ribs minimize distortion
SoloKonâ„¢ 360-degree back bracing
Ribbed Santopreneâ„¢ surround with blue surround stitching
UniPlateâ„¢ back plate and pole piece, plus perimeter venting For excellent thermal management
Thick tinsel leads
Large ceramic magnet
Cast aluminum basket
Satin-nickel plated, spring-loaded speaker terminals

SPECIFICATIONS

Thiele/Small Parameters: see files, below

Product Dimension Sheet: see files, below

CNC Software: see files, below

3D Printing Software: see files, below

Size (in, cm): 10, 25.4

Impedance (Ohms): 2 DVC

Recommended Amplifier Power (Watts RMS):* 600

Peak Power (Watts): 1200

Sensitivity (dB 1w/1m): 86.8

Frequency Response (Hz): 24 - 100

Mounting Depth (in, cm): 6-1/4 inches, 15.9 cm

Mounting Cutout, Square (in, cm): 9-5/16, 23.7

Min Rec Sealed Box Volume (cubic feet, Liters): 1.0, 28.32

Max Rec Sealed Box Volume (cubic feet, Liters): 1.25, 35.4

Min Rec Vented Box Volume (cubic feet, Liters):** 1.25, 35.4

Max Rec Vented Box Volume (cubic feet, Liters):** 2.25, 63.8

What's in the box?

one 10-inch subwoofer, one owner's manual, two stickers

Kicker Warranty

Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of one (1) year from date of original purchase.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.

(RMS = Root Mean Square, measure of continuous power in audio devices)

MANUFACTURER'S DOCUMENTS

MANUAL for Kicker L7S102 10-Inch Subwoofer, 2 Ohm

THIELE/SMALL (T/S) PARAMETERS for Kicker L7S102 10-Inch Subwoofer, 2 Ohm

DIMENSIONS for Kicker L7S102 10-Inch Subwoofer, 2 Ohm

CNC CUTTING TEMPLATE and 3D PRINTING TEMPLATE for Kicker L7S102 10-Inch Subwoofer, 2 Ohm
