Kicker L7S124 Solo-Baric 12-Inch 4-Ohm DVC Subwoofer (44L7S124)
$341.96
On Sale
was $379.99 Save 10%
4 payments of $85.49 with
In stock
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

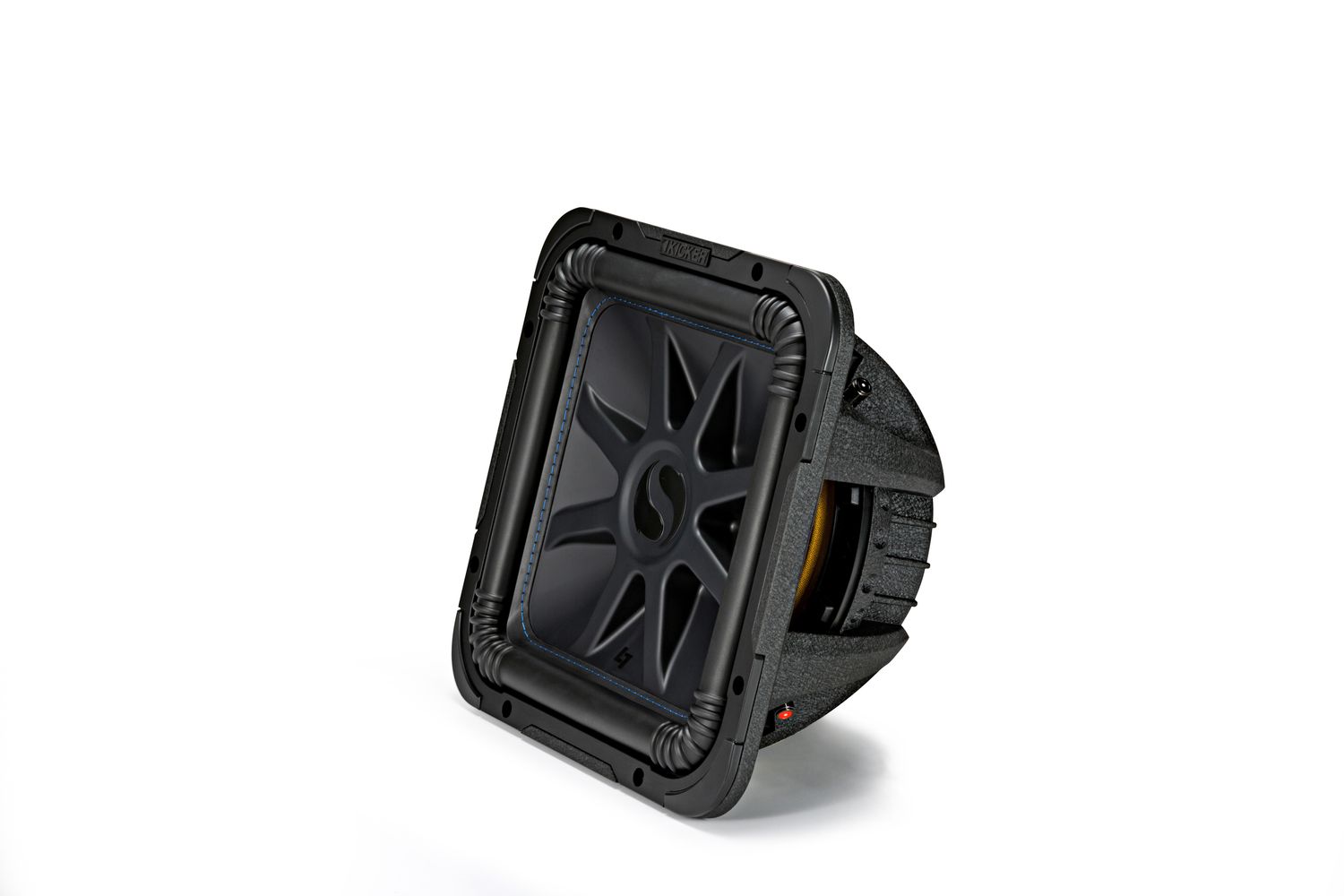

Kicker L7S124 Solo-Baric 12-Inch 4-Ohm DVC Subwoofer (44L7S124)
Product Details
Brand: Kicker
Subwoofer Size: 12
Kicker L7S124 Solo-Baric 12-Inch, 4-Ohm Dual Voice Coil, Subwoofer
The Kicker Solo-Baric® L7S™ has a unique cone structure and heat dissipation system for outstanding power handling and unsurpassed clarity.
The Solo-Baric L7's highly-engineered motor structure and square sub design promises dependability when pushed to the limit, while dual voice coils with high-temp copper windings easily handle intense heat and power levels for clean, clear bass anytime.
Features
- Dual four-Ohm voice coils
- Injection-molded polypropylene cone
- Patented corner ribs minimize distortion
- Solokonâ„¢ 360-degree back bracing
- Ribbed Santopreneâ„¢ surround with blue surround stitching
- Uniplateâ„¢ back plate and pole piece, plus perimeter venting for excellent thermal management
- Thick tinsel leads
- Large ceramic magnet
- Cast aluminum basket
- Satin-nickel plated, spring-loaded speaker terminals
*Kicker notes: "The Solo-Baric L7S 12-Inch Subwoofer works best with a sealed or ported enclosure and 750 Watts of recommended power." See Specifications and Manufacturer’s Documents, below, for more details.
Related Kicker products you may be interested in:
Kicker 08GL712 – 12-Inch square grille
Kicker IQ Amplifiers – for assured power and control
Kicker QS Series – component and coaxial speakers
Specifications
|
Thiele/Small Parameters: see file, below |
|
Product Dimension Sheet: see file, below |
|
CNC Software: see file, below |
|
L7S-L7R.DXF - for subwoofer hole cutouts |
|
3D Printing Software: see file, below |
|
L7S-L7R.SLDPRT - 3D-printing of grille spacers |
|
Size: 12 inches (30.5 cm) |
|
Impedance (Ohms): 4 DVC |
|
Recommended Amplifier Power (Watts RMS):* 750 |
|
Peak Power (Watts): 1,500 |
|
Sensitivity (dB 1w/1m): 88.6 |
|
Frequency Response (Hz): 20 - 100 |
|
Mounting Depth: 6-11/16 inches (16.9 cm) |
|
Mounting Cutout, Square: 11-1/16 inches (28.1 cm) |
|
Min Rec Sealed Box Volume: 1.25 cubic feet (35.4 L) |
|
Max Rec Sealed Box Volume: 2.0 cubic feet (56.64 L) |
|
Min Rec Vented Box Volume** : 1.75 cubic feet (49.6 L) |
|
Max Rec Vented Box Volume** : 3.25 cubic feet (92.1 L) |
|
What's in the box? |
|
one 12-inch subwoofer, one owner's manual, two stickers |
|
Kicker Warranty: |
|
Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of one (1) years from date of original purchase. |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your Kicker dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
(RMS = Root Mean Square, measure of continuous power in audio devices)
MANUFACTURER’S DOCUMENTS
THIELE/SMALL (T/S) PARAMETERS for Kicker L7S124 12-Inch Subwoofer, 4-Ohm
DIMENSIONS for Kicker L7S124 12-Inch Subwoofer, 4-Ohm
MANUAL for Kicker L7S124 12-Inch Subwoofer, 4-Ohm
3D PRINTING TEMPLATE and CNC TEMPLATE for Kicker L7S124 12-Inch Subwoofer, 4-Ohm
