Kicker L7S154 Solo-Baric 15-Inch 4-Ohm DVC Subwoofer (44L7S154)
Product Details
Brand: Kicker
Subwoofer Size: 15

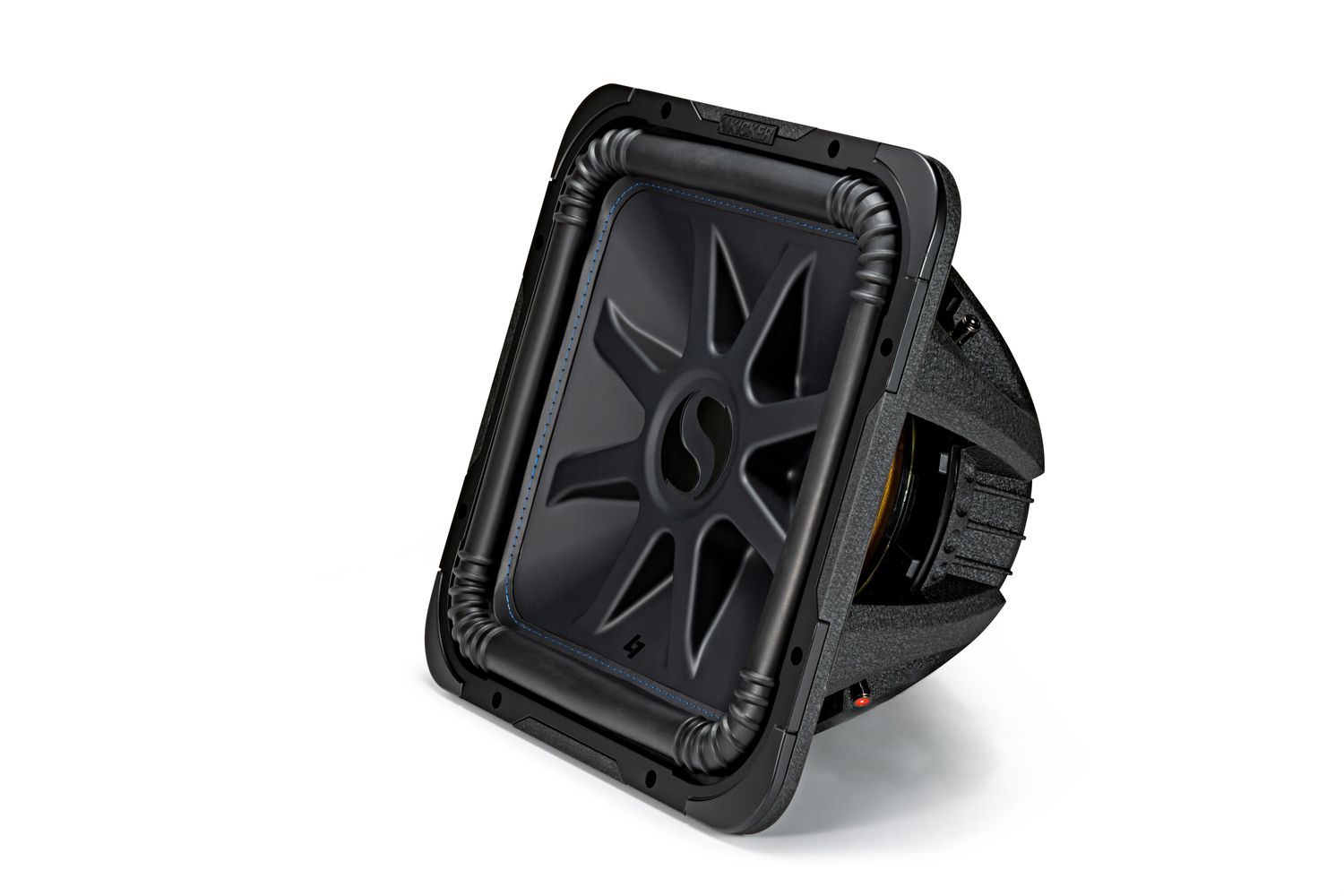

Kicker L7S154 Solo-Baric 15-Inch, 4-Ohm Dual Voice Coil, Subwoofer
The Kicker Solo-Baric® L7S™ has a unique cone structure and heat dissipation system for outstanding power handling and unsurpassed clarity.
The Solo-Baric L7's highly-engineered motor structure and square sub design promises dependability when pushed to the limit, while dual voice coils with high-temp copper windings easily handle intense heat and power levels for clean, clear bass anytime.
Features
- Dual 4-Ohm voice coils (Also available in dual 2-Ohm voice coils, see model L7R152)
- Injection-molded polypropylene cone
- Patented corner ribs minimize distortion
- Solokonâ„¢ 360-degree back bracing
- Ribbed Santopreneâ„¢ surround with blue surround stitching
- Uniplateâ„¢ back plate and pole piece, plus perimeter venting for excellent thermal management
- Thick tinsel leads
- Large ceramic magnet
- Cast aluminum basket
- Satin-nickel plated, spring-loaded speaker terminals
*Kicker notes: "The Solo-Baric L7S 15-Inch Subwoofer works best with a sealed or ported enclosure and 1,000 Watts of recommended power." See Specifications and Manufacturer’s Documents, below, for more details.
Related Kicker products you may be interested in:
Kicker 08GL715 – 15-Inch square grille
Kicker LED Subwoofer Grilles – add color effects to your subs
Kicker IQ Amplifiers – for assured power and control
Kicker QS Series – component and coaxial speakers
Specifications
|
Thiele/Small Parameters: see file, below |
|
Product Dimension Sheet: see file, below |
|
CNC Software: see file, below |
|
L7S-L7R.DXF - for subwoofer hole cutouts |
|
3D Printing Software: see file, below |
|
L7S-L7R.SLDPRT - 3D-printing of grille spacers |
|
Size: 15 inches (38.1 cm) |
|
Impedance (Ohms): 4 DVC |
|
Recommended Amplifier Power (Watts RMS):* 1,000 |
|
Peak Power (Watts): 2,000 |
|
Sensitivity (dB 1w/1m): 89.4 |
|
Frequency Response (Hz): 18 - 100 |
|
Mounting Depth: 8-11/16 inches (22.1 cm) |
|
Mounting Cutout, Square: 13-3/4 inches (34.9 cm) |
|
Min Rec Sealed Box Volume: 2.0 cubic feet (56.64 L) |
|
Max Rec Sealed Box Volume: 6.0 cubic feet (169.9 L) |
|
Min Rec Vented Box Volume:** 3.0 cubic feet (85.0 L) |
|
Max Rec Vented Box Volume:** 6.0 cubic feet (169.9 L) |
|
What's in the box? |
|
one 15-inch subwoofer, one owner's manual, two stickers |
|
Kicker Warranty: |
|
Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of one (1) years from date of original purchase. |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your Kicker dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
(RMS = Root Mean Square, measure of continuous power in audio devices)
MANUFACTURER’S DOCUMENTS
THIELE/SMALL (T/S) PARAMETERS for Kicker L7S154 15-Inch Subwoofer, 4-Ohm
DIMENSIONS for Kicker L7S154 15-Inch Subwoofer, 4-Ohm
MANUAL for Kicker L7S154 15-Inch Subwoofer, 4-Ohm
3D PRINTING TEMPLATE and CNC CUTTING TEMPLATE for Kicker L7S154 15-Inch Subwoofer, 4-Ohm
