Kicker L7X Subwoofer 49L7X10 SOLOX

Product Details

Brand: Kicker Audio

Subwoofer Size: 10

Features:
-2,000 watt RMS
-Three-inch, voice coil
-Field-Replaceable Recone Kit (Available)
-Forced Air Cooling™
-Dual-spider suspension
-Double-pressed pulp cone
-Heavy-duty UV-resistant Santoprene surround
-Custom rubber magnet boot
-Cast-aluminum basket
-Single 8 AWG terminal and dual 8 AWG terminal block
-Triple-Stacked Ferrite Magnet

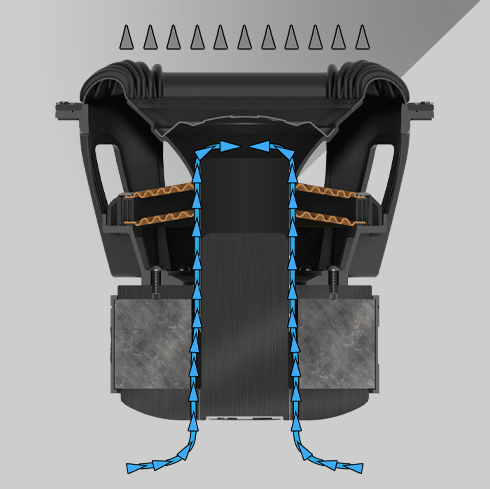

To make the sub even more reliable, KICKER engineers developed Forced-Air Cooling, which helps SoloX subwoofers run significantly cooler and last longer.

Specifications

Thiele/Small Parameters

49L7X102 T/S Parameters

Size (in, cm)

10, 25

Rated Impedance (Ohms)

2 DVC

Rec Amp Power rms

1000-2000

Frequency Response

25-100

Magnet Diameter (in, cm)

8-11/16, 22

Total Magnet Weight (oz, kg)

406, 11.5

Voice Coil Diameter (in, mm)

3, 75

Voice Coil Winding Width (in, mm)

2.5, 62.5

Product Dimension Sheet

49L7X10 Dimensions

Top Plate Thickness (in, mm)

0.5, 13

Xmax (in, mm)

1.25, 31.25

Mounting Cutout (in, cm)

9-5/16, 23.7

Mounting Depth (in, cm)

9-7/16, 24

Recommended Vented Box Volume (Cu. Ft., L)

2, 56.6

Port Opening (in x in, cm x cm)

2.5 X 12.25, 6 X 31

Port Length (in, cm)

38.5, 98

Vented Enclosure Tuning Frequency (Hz)

Warranty

When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this SOLO X product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.
