Name: Kicker L7X82 SoloX 8-Inch Ferrite Competition Subwoofer, 3-Inch 2-Ohm DVC (49L7X82)
Brand: Kicker
SKU: 99896
Price: 449.99 USD
Availability: InStock

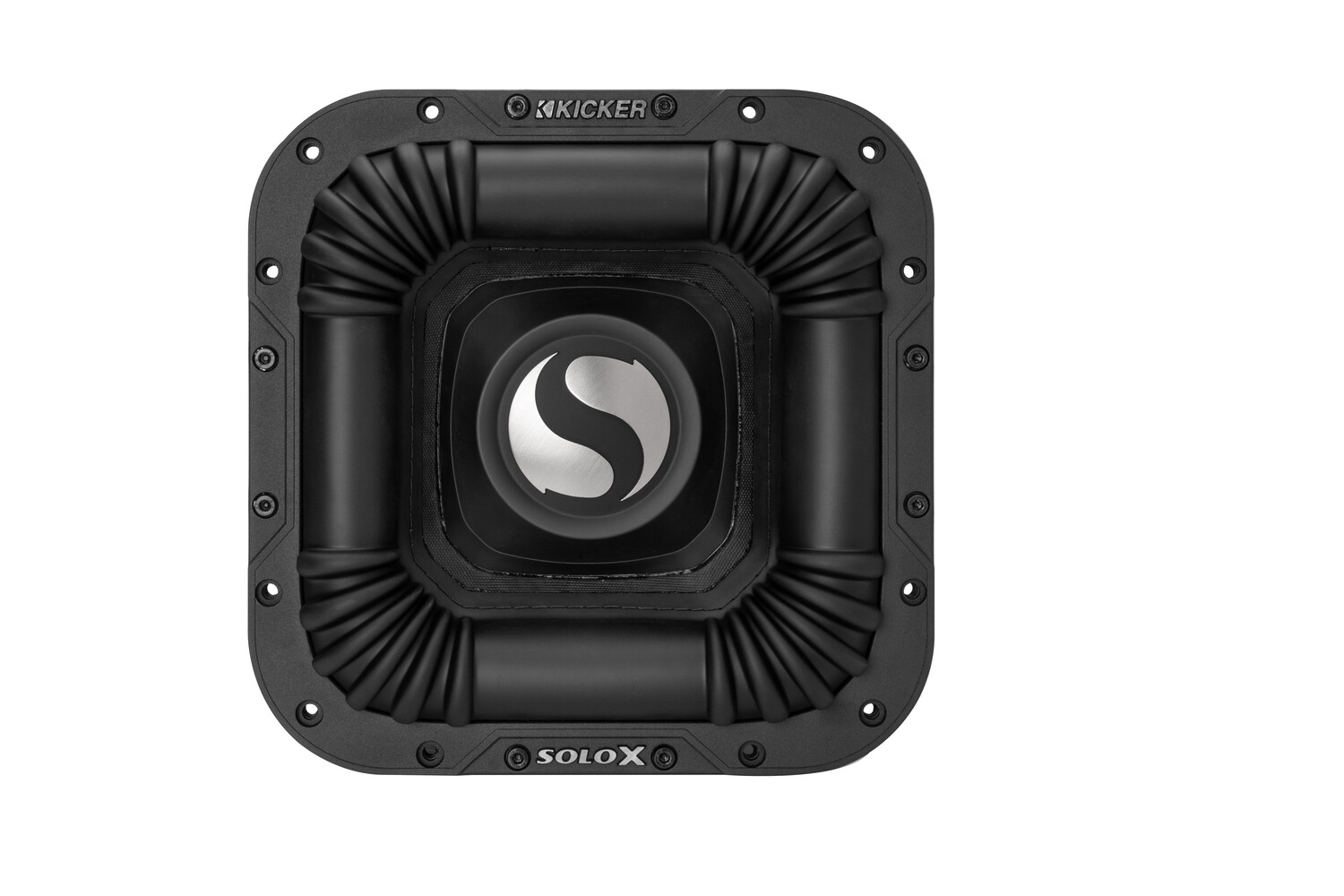

Kicker L7X8 SoloX 8-Inch Competition Subwoofer, front

Kicker L7X82 SoloX 8-Inch 2-Ohm DVC Subwoofer (49L7X82)

Product Details

Brand: Kicker

Subwoofer Size: 8

Kicker L7X82 SoloX 8-Inch Ferrite Competition Subwoofer, 3-Inch 2-Ohm DVC

The SoloX L7X revived Kicker advanced bass technology and extreme power handling â€“ made to turn heads!

The L7X8 utilizes a few different features and components to reproduce the monstrous bass and efficiency of the larger SoloX subwoofers. Youâ€™ll find it contains a stout 2.5-inch voice coil, heavy-duty spring-loaded terminals, and a recone kit that requires gluing and cure time as part of the process. To make the sub even more reliable, Kicker engineers developed Forced-Air Coolingâ„¢, which helps SoloX subwoofers run significantly cooler and last longer.

Features

800 Watts RMS

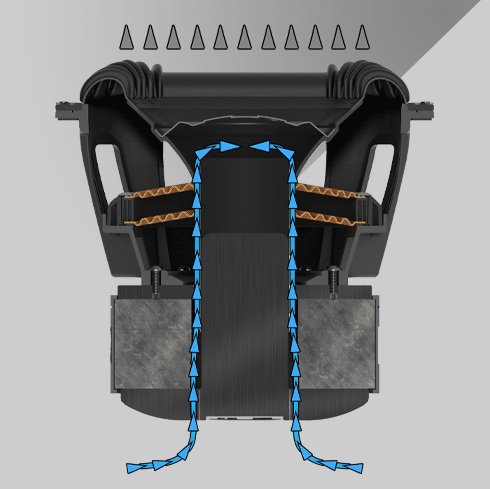

Forced Air Coolingâ„¢ (see diagram, below)
Recone kit â€“ cone/voice-coil/spider assembly that requires glue and cure time
2.5-inch aluminum voice coil former
Dual-spider suspension
Double-pressed pulp cone
Heavy-duty UV-resistant Santopreneâ„¢ surround
Custom rubber magnet boot
Cast-aluminum basket
Single 8 AWG terminals
Triple-stacked ferrite magnet

Also available in 1-Ohm version, see model 49L7X81

Companion Kicker products include:

WXA Warhorse Amplifiers for competition power (49WXA36001 and 49WXA10004)

ST Series components for PA style high output sound, in 9-inch midrange pairs (49ST9MR8 and 49ST9MR4, 8- and 4-Ohms respectively), 7-inch midrange pairs (49ST7MR8 and 49ST7MR4, 8- and 4-Ohms respectively), as well as individually sold 4-Ohm tweeters in 1.5-inch (49ST4TW) and 1-inch (49ST3TW) sizes, as well as their recone kits (49ST4TRK and 49ST3TRK, respectively)

Warhorse competition accessories, such as Kickerâ€™s Universal RCA-Level Remote (50UNRC), Fused Distribution Block (50HPFD4), Battery Terminal Side Post (50BT4S), Battery Terminal 6-Out (50HPBT6), Fused Block 4-Out (50HPFD4), DTC Dual Terminal Cup (49DTC), 1/0 AWG Wire â€“ 20 feet, Ground, in black (50PWBK020) or in orange (50PWOR020) casings

Specifications

Thiele/Small Parameters: see file, below

Product Dimensions: see file, below

CNC Files: see file below for subwoofer hole cutouts template

3D Print Files: see file below for 3D printing template for grille spacers

Size (in, cm): 8, 20

Rated Impedance (Ohms): 2 DVC

Rec Amp Power (Watts RMS):* 400 - 800

Frequency Response [Hz]: 30 - 100

Magnet Diameter (in, cm): 6-15/16, 17.6

Total Magnet Weight (oz, kg): 225 oz. 6.4 kg

Voice Coil Diameter (in, mm): 2.5, 62.5

Voice Coil Winding Width (in, mm): 1-7/8, 48

Top Plate Thickness (in, mm): 5/16, 8

Xmax (in, mm): 15/16, 24

Mounting Cutout (in, cm): 7-5/16, 18.6

Mounting Depth (in, cm): 7-15/16, 20.1

Recommended Vented Box Volume (cubic feet, Liters): 0.88, 25

Port Opening (in x in, cm x cm): 2 x 9 inches, 5 x 23 cm

Port Length (in, cm): 32.25, 82

Vented Enclosure Tuning Frequency (Hz): 39

Warranty

Kicker warrants this SOLO X product to be free from defects in material and workmanship under normal use for a period of one (1) year from date of original purchase.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your Kicker dealer for details.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.

(RMS = Root Mean Square, measure of continuous power in audio devices)

MANUFACTURERâ€™S DOCUMENTS

THIELE/SMALL PARAMETERS for Kicker L7X82 SoloX 8-Inch, 2-Ohm Subwoofer

DIMENSIONS for Kicker L7X8 SoloX 8-Inch Subwoofer

MANUAL for Kicker L7X8 SoloX 8-Inch Subwoofer

INFO CARD for Kicker L7X8 SoloX 8-Inch Ferrite Competition Subwoofer

CNC TEMPLATE for Kicker L7X8 SoloX 8-Inch Subwoofer

3D PRINT TEMPLATE for Kicker L7X8 SoloX 8-Inch Subwoofer
