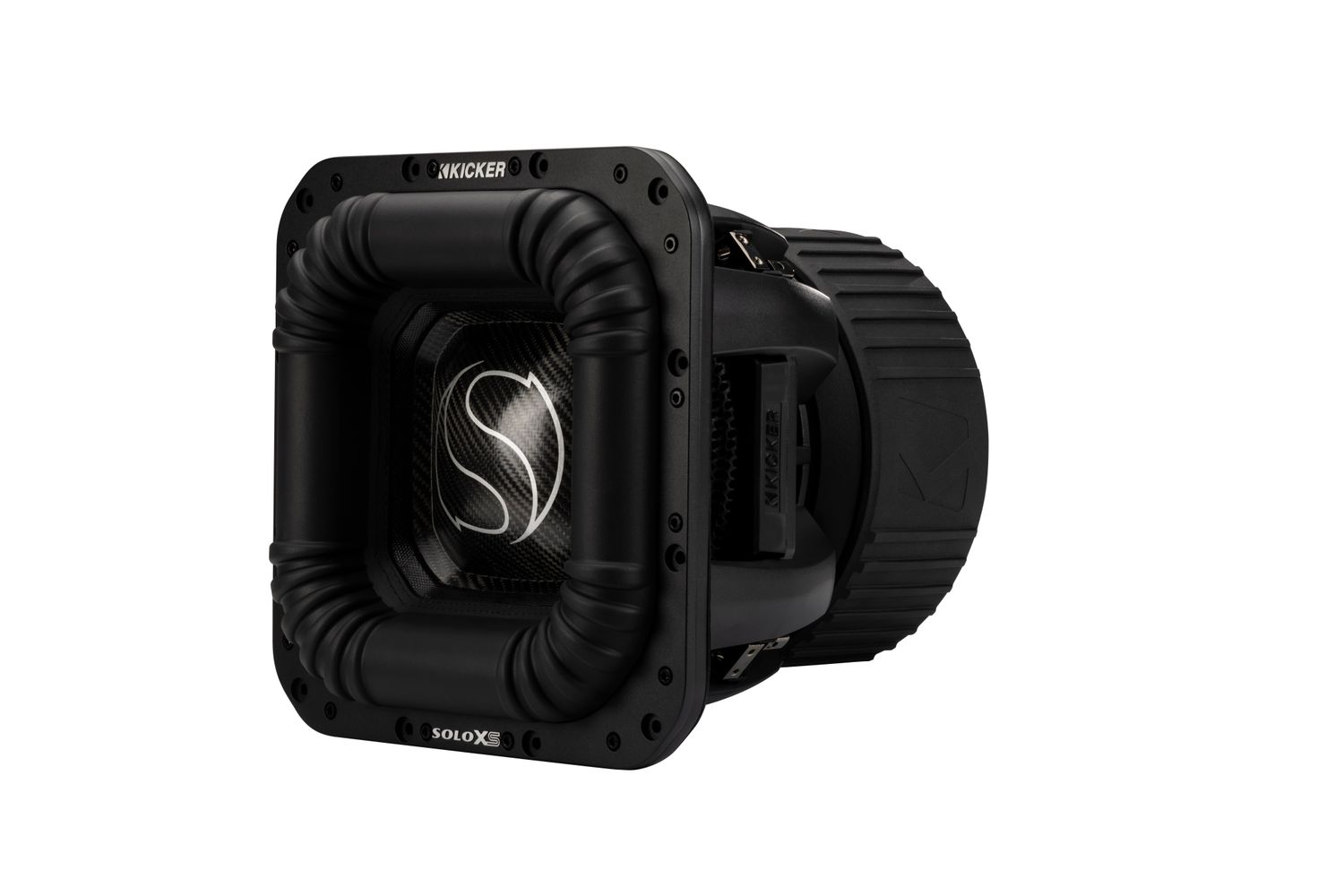

Kicker L7XS122 SoloXS 12-Inch, 3-Inch Excess, Neo Competition Subwoofer, 2 Ohm

SoloXS always promises high-excursion design, made for ultra-deep bass at very high volume. It’s developed like no other Kicker subwoofer.

Kicker introduces its line of L7 “Excess” SoloXS subwoofers. These square subwoofers are being released in a 12-inch model, handling 3,000 Watts, as well as a 15-inch 3,000-Watt version.

Also available in 1-Ohm, see L7XS121

Also available in 1-Ohm or 2-Ohm in 15 inches (see L7XS151 and L7XS152)

FEATURES

• Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and forget the glue (see Kicker L7XS122RK)

• Kicker exclusive Forced Air Cooling™: As the woofer's cone moves downward, hot air around the voice coil is forced out of the woofer, moving upward, the woofer's cone draws cool outside air into the woofer, cooling the voice coil.

• Three-inch aluminum voice-coil former in the 12-inch and 15-inch subs; four-inch in the 18-inch version

• Extra-large dual-spider suspension

• Double-pressed pulp cone

• Next-gen surround made from proprietary NBR material

• Custom rubber boot for oversized ferrite magnet

• Max-cooling, cast-aluminum basket

• Single 8 AWG push terminal and dual 4 AWG terminal block

• Dual tinsel leads with considerably more strands than L7X

SPECIFICATIONS

Thiele/Small Parameters: see below

CNC Files: L7XS.DXF - for subwoofer hole cutouts, see below

3D Print Files: L7XS.SLDPRT - 3D-printing grille spacers, below

Size (in, cm): 12 inches (30 cm)

Rated Impedance (Ohms): 2 DVC

Rec Amp Power (Watts RMS):* 1500 - 3000

Frequency Response: 20 – 100

Magnet Diameter (in, cm): 9.85 inches (25 cm)

Total Magnet Weight (oz, kg): 705 oz (20 kg)

Voice Coil Diameter (in, cm): 3 inches (7.5 cm)

Voice Coil Winding Width (in, mm): 3.4 inches (8.62 cm)

Product Dimension Sheet: see below

Top Plate Thickness (in, cm): 0.8 inches (2.0 cm)

Xmax (in, mm): 1.71 inches (4.31 cm)

Mounting Cutout (in, cm): 11-1/16 inches (28.1 cm)

Mounting Depth (in, cm): 10-1/8 inches (25.7 cm)

Recommended Vented Box Volume (cu. ft., L): 3 cu.ft. (84.9 L)

Port Opening (in x in, cm x cm): 3.5 x 13 inches (9 x 33 cm)

Port Length (in, cm): 36.5 inches (93 cm)

Vented Enclosure Tuning Frequency (Hz): 31

Kicker Warranty

Kicker warrants this SOLO XS product to be free from defects in material and workmanship under normal use for a period of one (1) year from date of original purchase.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your Kicker dealer for details.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.

(RMS = Root Mean Square, measure of continuous power in audio devices)

MANUFACTURER’S DOCUMENTS:

T/S PARAMETERS for L7XS122

CNC FILES for L7XS12 subwoofer hole cutouts

3D PRINT FILES for L7XS12 grille spacer printing

DIMENSIONS for L7XS122

MANUAL for L7XS122

Note: Kicker specifies, “Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.”
