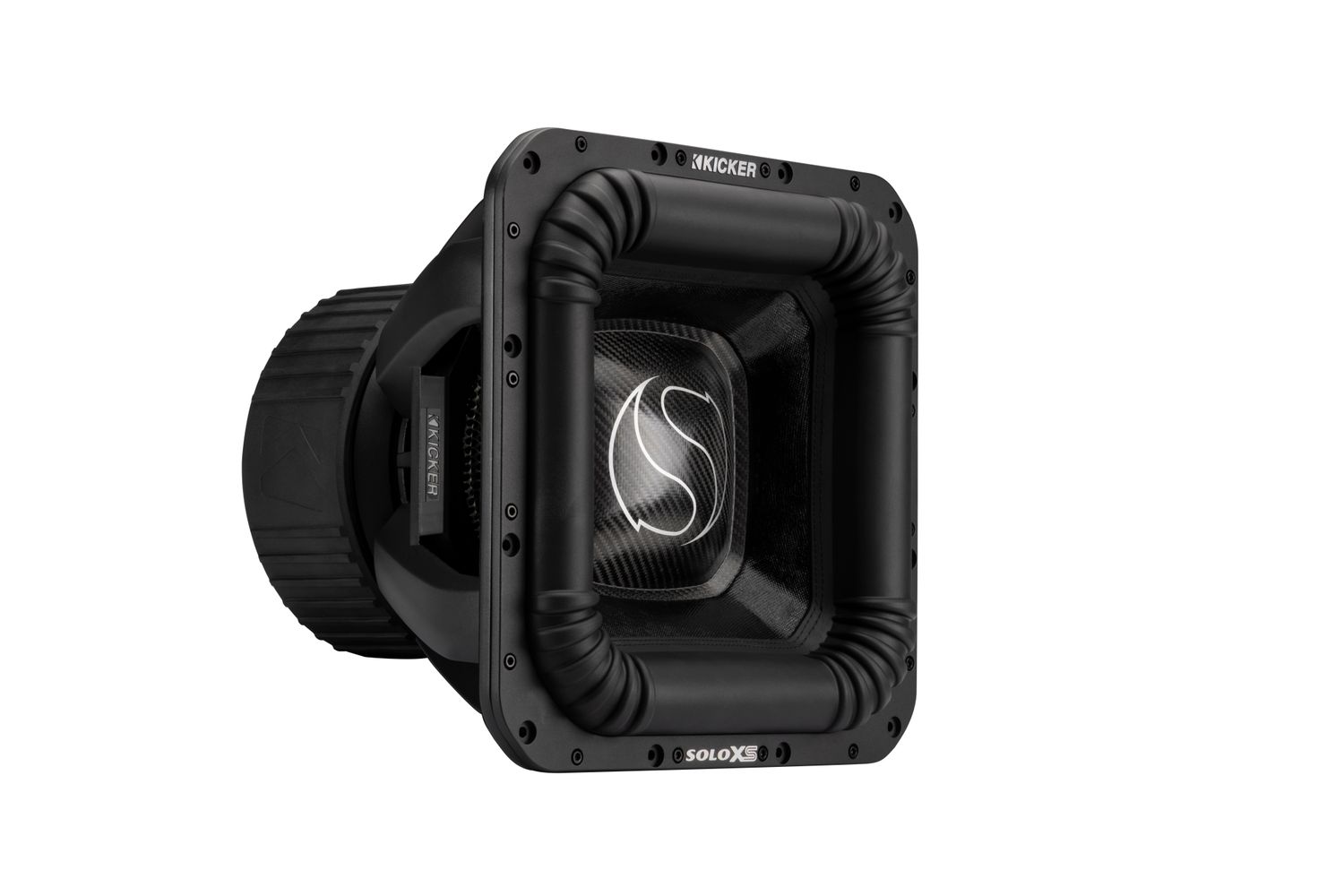

Kicker L7XS151 SoloXS 15-Inch, 3-Inch Excess, 1-Ohm Subwoofer (52L7XS151)
$1,499.99
4 payments of $375.00 with
In stock
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Kicker L7XS151 SoloXS 15-Inch, 3-Inch Excess, 1-Ohm Subwoofer (52L7XS151)
Product Details
Brand: Kicker
Subwoofer Size: 15
Kicker L7XS151 SoloXS 15-Inch, 3-Inch Excess, 1-Ohm Neo Competition Subwoofer
SoloXS always promises high-excursion design, made for ultra-deep bass at very high volume. It’s developed like no other Kicker subwoofer.
Kicker introduces its line of L7 “Excess†SoloXS subwoofers. These square subwoofers are being released in a 15-inch model, handling 3,000 Watts, as well as a 12-inch 3,000-Watt version.
Also available in 2-Ohm, see L7XS152
Also available in 1-Ohm or 2-Ohm in 12 inches (see L7XS121 and L7XS122)
FEATURES
• Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and forget the glue (see Kicker L7XS151RK)
• Kicker exclusive Forced Air Cooling™: As the woofer's cone moves downward, hot air around the voice coil is forced out of the woofer, moving upward, the woofer's cone draws cool outside air into the woofer, cooling the voice coil.
• Three-inch aluminum voice-coil former in the 12-inch and 15-inch subs; four-inch in the 18-inch version
• Extra-large dual-spider suspension
• Double-pressed pulp cone
• Next-gen surround made from proprietary NBR material
• Custom rubber boot for oversized ferrite magnet
• Max-cooling, cast-aluminum basket
• Single 8 AWG push terminal and dual 4 AWG terminal block
• Dual tinsel leads with considerably more strands than L7X
SPECIFICATIONS
|
Thiele/Small Parameters: see below |
|
CNC Files: L7XS.DXF - for subwoofer hole cutouts, below |
|
3D Print Files: L7XS.SLDPRT - 3D-printing grille spacers, below |
|
Size (in, cm): 15 inches (38 cm) |
|
Rated Impedance (Ohms): 1 DVC |
|
Rec Amp Power (Watts RMS):* 1500 - 3000 |
|
Frequency Response: 18 – 100 |
|
Magnet Diameter (in, cm): 9.85 inches (25 cm) |
|
Total Magnet Weight (oz, kg): 705 oz (20 kg) |
|
Voice Coil Diameter (in, cm): 3 inches (7.5 cm) |
|
Voice Coil Winding Width (in, mm): 3.4 inches (8.62 cm) |
|
Product Dimension Sheet: see below |
|
Top Plate Thickness (in, cm): 0.8 inches (2.0 cm) |
|
Xmax (in, mm): 1.71 inches (4.31 cm) |
|
Mounting Cutout (in, cm): 13-3/4 inches (34.9 cm) |
|
Mounting Depth (in, cm): 11-9/16 inches (29.3 cm) |
|
Recommended Vented Box Volume (Cu. Ft., L): 5 cu.ft. (141.5 L) |
|
Port Opening (in x in, cm x cm): 4.25 x 16.5 inches (11 x 42 cm) |
|
Port Length (in, cm): 34.75 inches (88 cm) |
|
Vented Enclosure Tuning Frequency (Hz): 30 |
|
Kicker Warranty |
|
Kicker warrants this SOLO XS product to be free from defects in material and workmanship under normal use for a period of one (1) year from date of original purchase. |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your Kicker dealer for details.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
(RMS = Root Mean Square, measure of continuous power in audio devices)
MANUFACTURER’S DOCUMENTS:
CNC FILES for L7XS15 subwoofer hole cutouts
3D PRINT FILES for L7XS15 grille spacer printing
Note: Kicker specifies, “Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.â€
