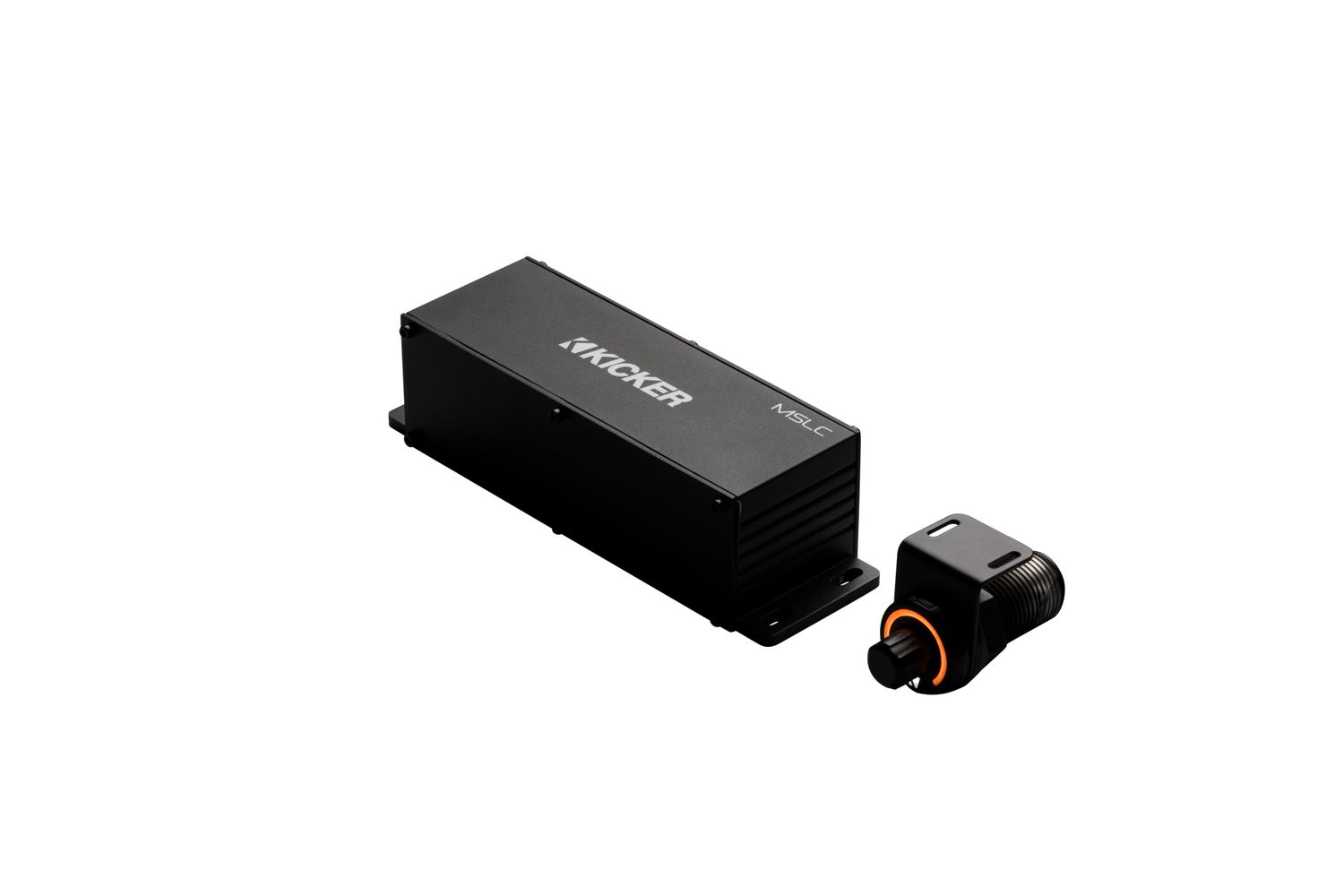

Kicker MSLC RGBW LED Lighting Controller

Set the mood with continuous LEDs on your Premium M-Class System, which includes the color white and no audio interference.

The MSLC provides many reasons why this is the ultimate LED receiver box and dash-mounted remote dial.

• It's RGBW compatible with Kicker Premium M-Class Marine gear.
• It allows for superior audio clarity due to its noise-free, ultra-efficient PWM-controlled circuitry.
• It provides 20 amps (300W) of continuous high-current output, which runs multiple LED speakers and accessories.
• It manages 17 different colors and five dynamic modes.
• Those modes include flash, pulse, solid, color-change, and music.
• The dash-mounted dial includes a four-meter-long extension cable (MSCLEXT4) for convenient installation.
• And M-Class is always Kicker Real Marine™, weather-resistant for any excursion.

See also, MSLCEXT4, 4-meter connection cable extension

FEATURES

• Multi-function control of RGBW or RGB lighting with wired remote dial

• Manages 17 different colors (+ white) and 5 dynamic modes

• Ultra-quiet circuitry for superior audio clarity

• 300w continuous output for driving multiple LED speakers and accessories

• Modes include music, flash, pulse, color-change, and solid

• Info Sheet from Kicker about the MSLC RGBW LED Controller

SPECIFICATIONS

Model: 51MSLC

Power Supply: 12 VDC (10.5–15.5 VDC operating range)
Maximum Continuous Output: 20 Amps / 300 Watts

Color Options: 18 selectable colors including True White
Brightness Levels: 5 Steps (20%, 40%, 60%, 80%, 100%)
Dynamic Modes: 5 - Music Mode (via built-in microphone), Flash, Pulse, Color-Change, Solid

Speed Adjustment: 10 Levels (Flash & Pulse modes only)
DIMENSIONS:

Control Box Height: 2-1/16 inches (5.2 cm)

Control Box Width: 7-17/32 inches (19.1 cm)

Control Box Depth: 2-5/16 inches (5.9 cm)

Remote Diameter: 1-11/32 inches (4.22 cm)

Remote Depth: 2 inches (5.08 m)

Remote Cutout: 1 inch (2.54 cm)

Remote Wire Length: 13 feet (4 m)

Wiring Harness Length: 15-3/4 inches (40 cm)

Power: 10 AWG

Ground: 10 AWG

RGB LED Wires: 14 AWG

Black LED Wire: 12 AWG

MANUFACTURER’S DOCUMENTS

DIMENSIONS for Kicker MSLC RGBW LED Lighting Controller (two parts: Dimensions of Control Box and Dimensions of Remote)

MANUAL for Kicker MSLC RGBW LED Lighting Controller

INFO CARD for Kicker MSLC RGBW LED Lighting Controller

(RMS = Root Mean Square, measure of continuous power in audio devices)
