Kicker M-Class Premium products feature key moisture-deterring characteristics that set them apart as a true product line built to use in the outdoors. It’s all Real Marine™.

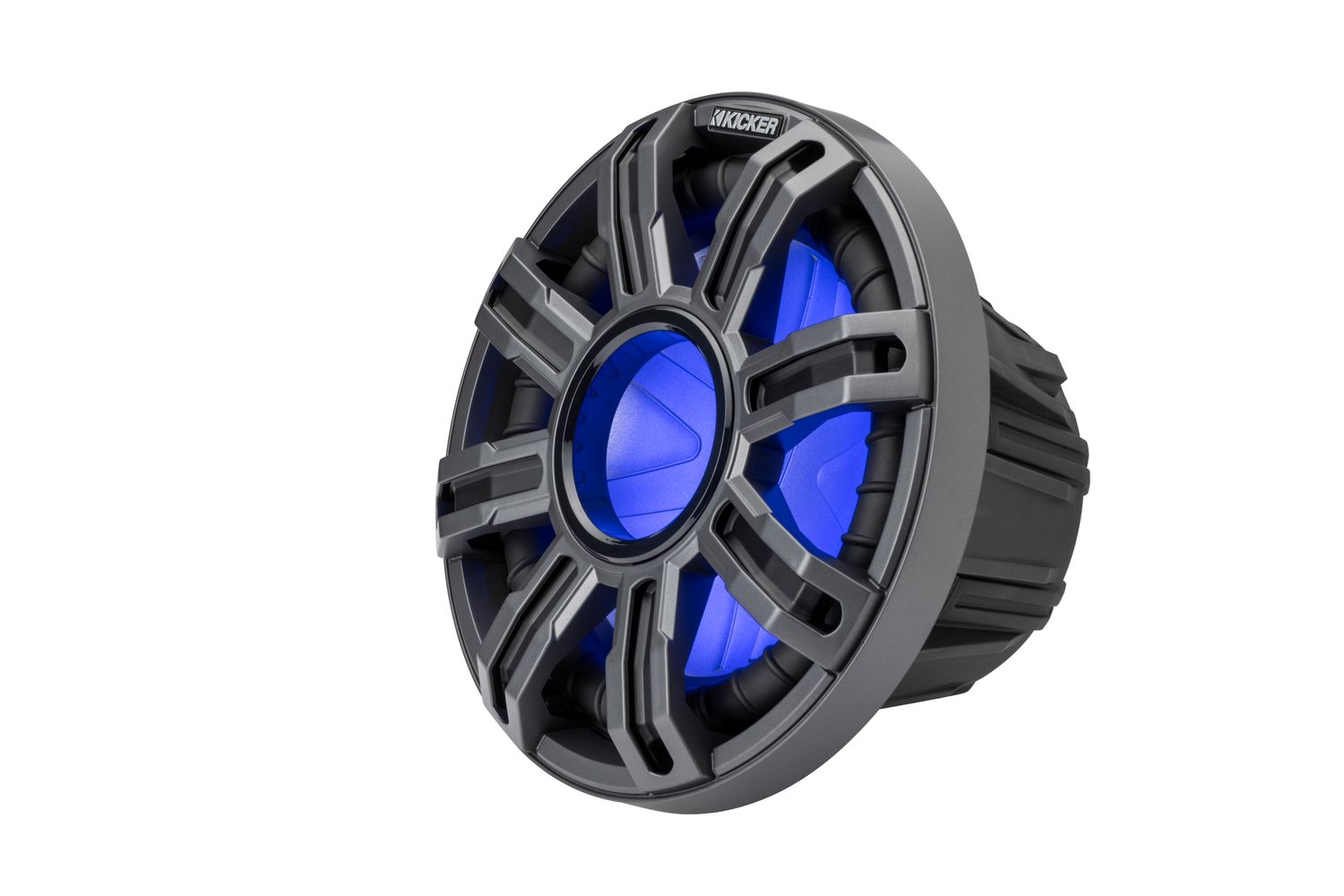

The MWE Subwoofer is designed for use in a sealed or vented enclosure for tight, accurate bass. It utilizes a carbon-fiber-infused poly-cone co-molded to a tough TPE surround for a solid balance of durability and resonance control. The glass-filled nylon basket frames for excellent thermal performance and toughness. Corrosion-resistant, water-proof connectors for speakers and lighting.
Kicker Real Marineâ„¢ products are designed specifically for marine environments with marine-compliant terminals, splash-and-spray resistance, and more.
MWE subwoofers include a charcoal grille with purchase.
See Kicker MWGW for a white grille, sold separately.
As shown in the Specifications Sheet, these M-Class Premium Marine Subwoofers are available in these configurations:
•10-Inch, for use in enclosures, in 2-Ohm and 4-Ohms:MWE102 and MWE104
•10-Inch, for free-air applications, in 2-Ohm and 4-Ohms:MWF102 and MWF104
•12-Inch, for use in enclosures, in 2-Ohm:MWE122
•12-Inch, for free-air applications, in 2-Ohm and 4-Ohms:MWF122 and MWF124
• “MWE†for use in enclosures; “MWF†for free-air; now in 2- or 4-Ohm
• Equipped with RGBW LED lighting for endless colors
• Max weather-proofing with carbon-fiber-infused poly-cone and co-molded TPE surround
• Glass-filled nylon basket provides high thermal performance and resists corrosion
• MWLE Loaded Enclosure includes reFLEX™ passive subwoofer for even deeper bass
• Meets or exceeds ASTM standards for UV and salt/fog exposure (ASTM B117 200-hour salt/fog test and ASTM G154 400-hour accelerated UV test)
|
Product Dimension Sheet: see files, below |
|
CNC Cutout Files: see files, below |
|
Woofer (in, cm): 10 inches(25 cm) |
|
Rated Impedance (Ohms): 2 SVC |
|
Rec Amp Power (Watts RMS): 200 – 400 |
|
Peak Power Handling (Watts): 800 |
|
Freq Resp (Hz): 20 – 500 |
|
Sensitivity (dB; 1W, 1m): 84.5 |
|
Sealed Enclosure Volume Min-Max (cu ft, L): 1-2.4 cu. ft. (28.3 – 68 L) |
|
Vented Enclosure Volume Min-Max (cu ft, L): 1.25-1.75 cu. ft. (35.4 – 49.6 L) |
|
Mounting Hole Diameter (in, cm): 9-1/16 inches (23.1 cm) |
|
Mounting Depth (in, cm): 5-3/16 inches (13.2 cm) |
|
Outer Diameter (in, cm): 11 inches(28 cm) |
|
Grilles: Charcoal included (MWGW white grille sold separately) |
|
Kicker Warranty |
|
Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of three (3) years from date of original purchase. (RMS = Root Mean Square, measure of continuous power in audio devices) MANUFACTURER’S DOCUMENTSSPECIFICATIONS SHEET for Kicker M-Class Premium Marine Subwoofers DIMENSIONS for Kicker MWE10 Marine Subwoofer TEMPLATES for Kicker MWE102: CNC file: MWE-MWF.DXF 3D Print file: MWE-MWF.SLDPRT See Kicker MWE104 for Thiele/Small Parameters data. catb v2 5.24.26 |
