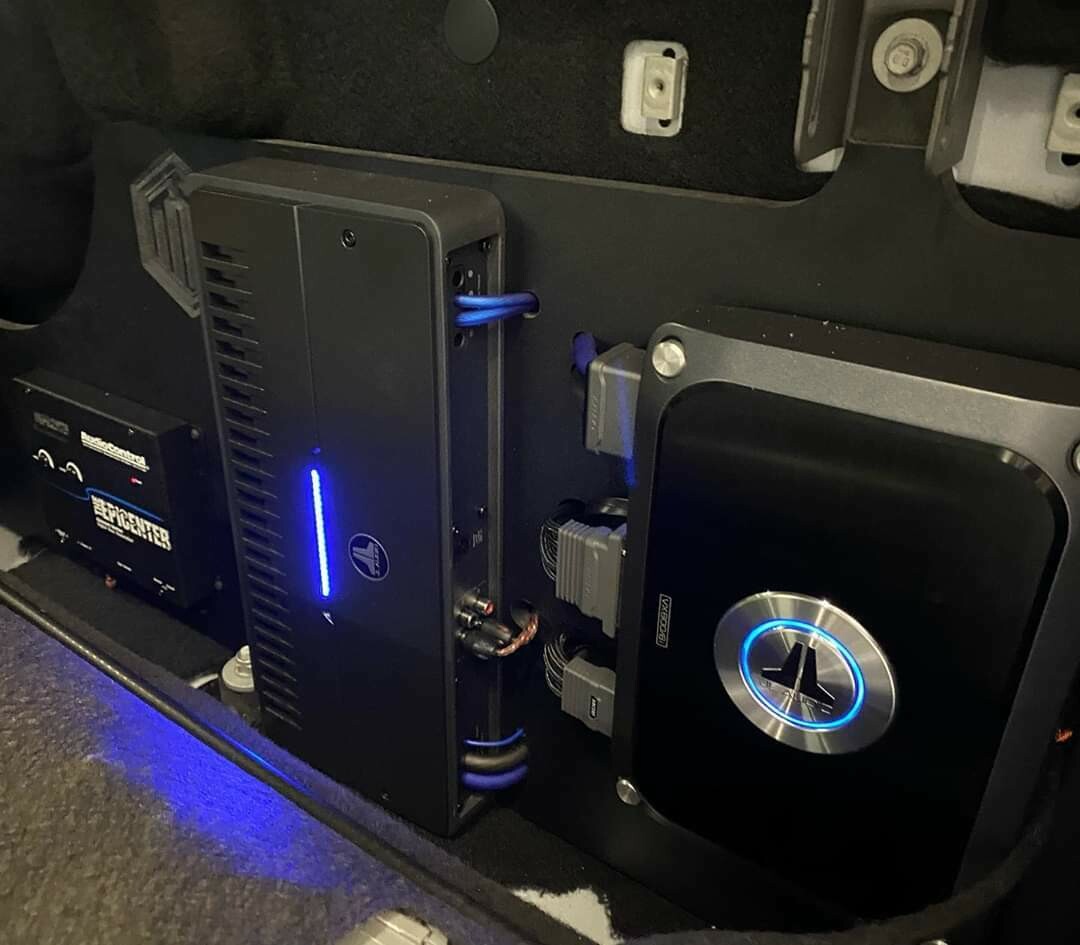

MTI Acoustics Ford F-Series Amplifier Rack

Need a clean, secure way to mount aftermarket amplification in your 13th/14th Generation Ford F-150 or 4th/5th Generation Super Duty?

Our vehicle-specific amplifier racks provide a solid mounting surface while utilizing factory mounting locations. With five different sizes available, we can accommodate everything from a simple monoblock installation to a large multi-amplifier system.

Need amplifiers too? We can build the complete package.

Vehicle Compatibility

Designed for:

• 2015–2026 Ford F-150 SuperCrew
• 2017–2026 Ford Super Duty Crew Cab

IMPORTANT: 2024+ F-150 and 2023+ Super Duty trucks equipped with B&O have a different OEM amplifier/subwoofer layout. Please see the B&O fitment information below before selecting your rack.

What's Included

Each MTI Amplifier Rack Integration Kit includes:

• 1/2-inch rigid plastic amplifier mounting panel
• Vehicle-specific factory mounting tabs
• Required mounting feet for applicable configurations

When using an LMI 1525SC or 1535SC seat lift, the standard mounting feet are not utilized.

Choose Your Amp Rack

Under-Seat Amp Rack

Designed for use with our full length behind-seat enclosure, leaving the behind-seat area available for the subwoofer system.

The rack sits on the factory “shelf” above the floor pan.

Dimensions:
7.5 inches tall
30 inch main body width
34 inches overall width at mounting tabs

IMPORTANT: The Under-Seat Amp Rack CANNOT be used on trucks equipped with the 2.0kW Pro Power system.

Shorty Behind-Seat Amp Rack

Our most compact behind-seat option, designed specifically to work alongside our single-subwoofer sealed half-length behind-seat enclosure.

Dimensions:
20 inches wide
15 inches tall

60% Behind-Seat Amp Rack

A great option when you need additional mounting real estate for multiple smaller amplifiers, integration equipment, or relocation of the OEM amplifier when applicable.

Dimensions:
35 inches overall width
15 inches at tallest point
8.25 inches at lowest point

NOTE: Because of its additional width, the 60% rack cannot be used with behind-seat enclosure configurations.

Full-Length Behind-Seat Amp Rack

Oh, you're serious now.

The Full-Length rack provides substantially more mounting space for larger systems and multi-amplifier installations.

Dimensions:
55.5 inches overall width
15 inches at tallest point
8.25 inches at lowest point
11.5 inches tall on passenger side

The OEM jack must be relocated when using this rack.

The Full-Length rack ships as two panels with a center bridge connecting them together.

Jumbo Behind-Seat Amp Rack

When “Full-Length” still isn't enough.

The Jumbo provides the maximum usable mounting area for large amplifier/DSP systems.

Dimensions:
55.5 inches overall width
15 inches tall

Installation requires:

• Relocation of the OEM jack
• Removal of the OEM back-wall carpeting
• Rotating the power-sliding-window motor 180 degrees

The Jumbo rack ships as two panels with a center bridge connecting them together.

Important Behind-Seat Fitment Information

Behind-seat amplifier racks cannot be used with the OEM subwoofer enclosure in place. The OEM subwoofer must be removed.

For 2015–2023 F-150 and 2017–2022 Super Duty trucks equipped with an OEM amplifier, the factory amplifier can be removed from its metal mounting bracket and relocated to the backside of the MTI amplifier rack. There is ample clearance for the OEM amplifier when installed properly.

2023+ Super Duty & 2024+ F-150 With B&O

Ford changed the OEM amplifier/subwoofer arrangement on these trucks.

We offer a specific smaller amplifier rack for:

• 2023+ Super Duty with B&O
• 2024+ F-150 with B&O

This rack is specifically designed to work with our single-subwoofer, half-length behind-seat enclosure and avoids the need to cut factory studs or notch the rack.

If you're using a Full-Length or Jumbo rack on these newer B&O trucks, the OEM studs will need to be cut to provide the necessary clearance.

If you're unsure which configuration applies to your truck, please contact us before ordering.

Installation

Installation utilizes the factory mounting locations:

1. Remove the nuts from the applicable lower mounting studs, removing the seatbelt mounting points as required.
2. Remove the nut from the upper rear-seat mounting plate.
3. Slide the upper amp-rack tab underneath the striker bar and position it over the OEM mounting stud.
4. Position the amplifier-rack mounting feet over the appropriate OEM studs.
5. Reinstall and properly tighten all OEM hardware.

DO NOT USE AN IMPACT DRIVER TO TIGHTEN THE MOUNTING HARDWARE.

If your truck is equipped with an OEM amplifier, remove the factory amplifier and its metal mounting bracket as described above. The OEM amplifier can then be secured to the backside of the appropriate MTI rack.

Need a Complete System?

We can also provide the amplifiers, DSP/integration, wiring, distribution, and other equipment needed to complete your installation.

Shop MTI Acoustics Ford F-Series Products

Production & Shipping

Every MTI amplifier rack is made in-house.

Current lead time: 5–7 business days from order to shipment.

Please provide complete vehicle information during checkout to ensure the correct rack configuration is built for your truck.

Please Note

Due to the custom, made-to-order nature of this product, all sales are final, without exception.
