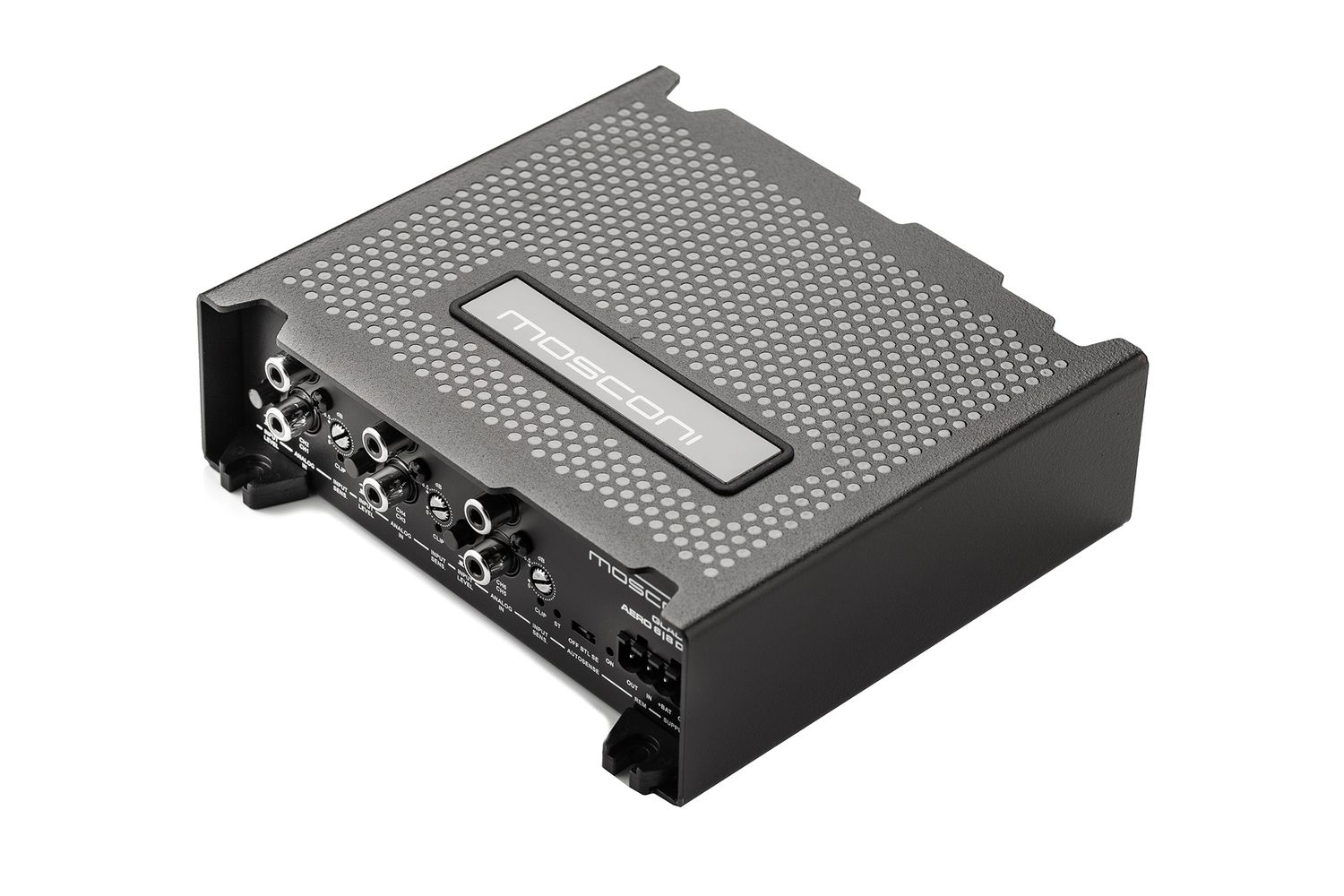

Mosconi AERO 6-8 DSP Digital Signal Processor with 6-channel input, 8-channel output (DSP 6TO8 AEROSPACE)

With the incredibly powerful chip, the GLADEN DSP 6-8 (6to8) AEROSPACE is faster than ever. This is the best DSP since Mosconi’s founding. Without limit in signal processing the 96kHz /24 bit high-resolution audio this unit provides is a "game changer.”

Note: All DSP's require accessories to accept RCA inputs. See: Mosconi Gladiator DSP Controller (for all products with BT+ port, i.e., PICO, ONE, PRO & AERO). Consult the Mosconi-Gladen DSP Products/Accessories Compatibility chart below for more information.

Software: Mosconi-Gladen also provides accompanying software, available from their website.

Features

• 6-channel input
• 8-channel output

Manufacturer Specifications

Inputs:

• 6 x RCA (Cinch), switchable high/ low level with autosense
• 1 x S/PDIF digital optical
• 1 x RCA digital COAX
• 4 of them freely selectable as prioritized auto-fade/aux
• ATOM Mixer menu with dynamic preset switching and "trigger" control

Outputs:

• 8 x RCA analog
• 1 x S/PDIF optical (freely assignable, volume controlled)
• 12 V remote-out

Equalizer:

• Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40
• Fixed: channels front (1 - 4)
• Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free

Filters:

• 10 per channel freely configurable
• Highpass, lowpass, shelf, notch, allpass, peak EQ
• Slope 6 - 120 dB/Oct, variable Q, time and level

Others:

• Time correction 0 - 12 ms (0.010 ms steps)
• Input delay (channels 1 - 6) for correction of run-time delayed plant systems
• Phase shift 0 – 180 degrees
• Level adjustment outputs (0.5 - dB steps)
• Mute function
• 4 x preset memory (switching without sound interruption)

Dimensions: 150 x 125 x 40 mm (including mounting flange)

(RMS = Root Mean Square, measure of continuous power in audio devices)

Manufacturer Documents

DATASHEET for Mosconi AERO 6-8 DSP

MANUAL for Mosconi AERO 6-8 DSP
