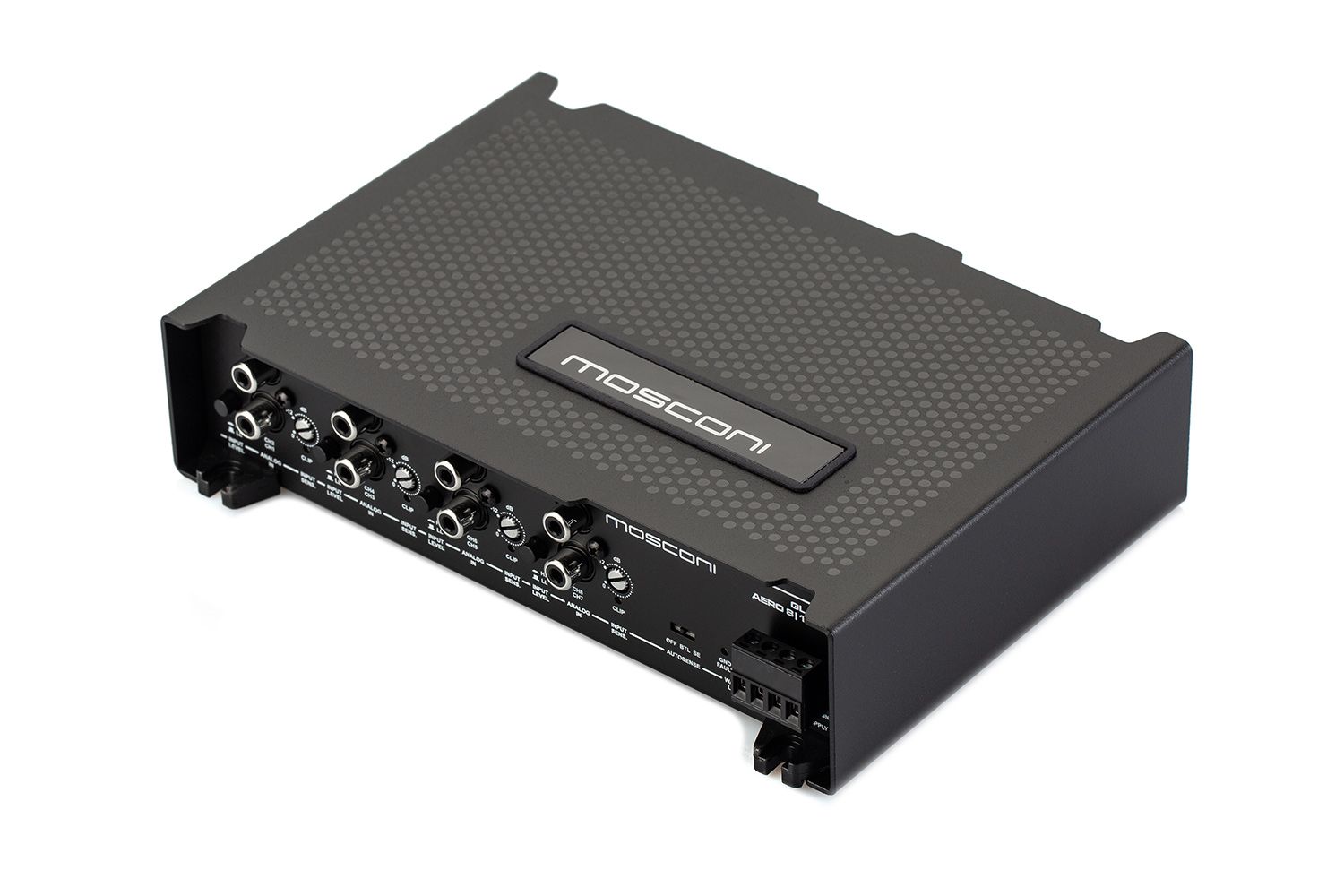

Mosconi AERO 8-12 DSP Digital Signal Processor with 8-channel input, 12-channel output

The AERO 8|12 DSP is now equipped with a BT Plus port and thus also compatible with our latest innovation, the BARNIE calibration system. In addition, it now has a universal interface for up to 16 channels.

An "active over-ALL bias" stabilization is responsible for increased sound performance, which minimizes distortions occurring in the entire dynamic range. The channel separation, whether in mixed operation (high level / low level) or when summing the inputs, has also been optimized again via Smart Dual ADC.

For best connectivity and installability, the AERO 8|12 DSP now has a USB-C port and a housing that meets modern installations through its design.

Note: All DSP's require accessories to accept RCA inputs. See: Mosconi Gladiator DSP Controller (for all products with BT+ port, i.e., PICO, ONE, PRO & AERO). Consult the Mosconi-Gladen DSP Products/Accessories Compatibility chart below for more information.

Software: Mosconi-Gladen also provides accompanying software, available from their website.

Features

• 8-channel input
• 12-channel output

Manufacturer Specifications

Inputs:

• 8 x RCA (Cinch), switchable high / low level with autosense
• 4 of them freely selectable as prioritized Auto-fade/Aux
• 1 x S/PDIF digital optical
• 1 x RCA digital COAX
• 1 x BT slot
• ATOM Mixer menu with dynamic preset switching and "trigger" control

Outputs:

• 12 x RCA analog
• 1 x S/PDIF optical (freely assignable, volume controlled)
• 12 V remote-out

Equalizer:

• Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40
• Fixed: channels front (1 - 6) channels rear (9 + 10)
• Assignable channels: 7 + 8 = Front, Rear 11 + 12 = Sub, Center, Free

Filters:

• 10 per channel freely configurable, (setting without sound interruption)
• Highpass, lowpass, shelf, notch, allpass, peak EQ
• Slope 6 - 120 dB/Oct, variable Q, time and level

Other:

• Compatible with BARNIE measurement system
• Time correction 0 - 12 ms (0.005 ms steps) (setting without sound interruption)
• Input-Delay (channels 1 - 6) for the correction of runtime-delayed plant systems
• Phase inversion 0 – 180 degrees
• Level adjustment outputs (0.5-dB steps)
• Mute function
• 4 x preset memory (switching without sound interruption)

Dimensions: 200 x 125 x 40 mm (including mounting flange)

(RMS = Root Mean Square, measure of continuous power in audio devices)

Manufacturer Documents

MANUAL for Mosconi AERO 8-12 DSP
