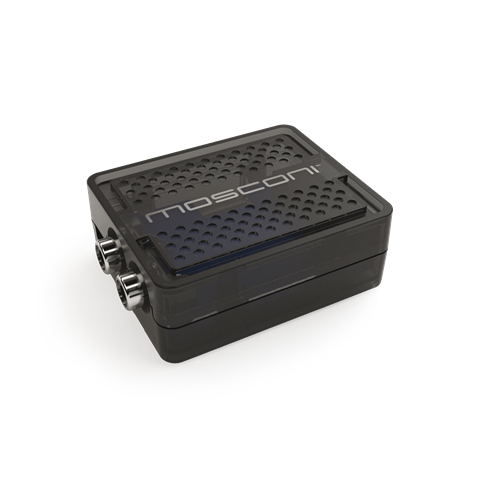

Mosconi AMAS-LD4C – Universal Bluetooth Module, high-resolution audio streaming, designed for L DAC

Mosconi AMAS-LD4C universal Bluetooth (BT) module is a discrete unit (not a dongle) compatible with all Mosconi DSP products. Bluetooth v5.0 specification. It provides high-resolution audio up to 24-bit, 96 kHz. The AMAS-LD4C features digital and analog outputs can be used simultaneously. There are separate remote input and output.

Note: To see which Mosconi-Gladen accessories are compatible with specific DSPs, see the Mosconi-Gladen DSP Products/Accessories Compatibility chart below for more information.

Features

• High resolution
• LD4C
• Supports A2DP 1.3.
• S/PDIF digital output (Toslink)
• Analog output: RCA, 2 Vrms
• High-performance 112 dB SNR audio stereo DAC.
• Intelligent muting system with 120 dB mute SNR.
• Start and stop optimized up to 8V.
• Low power consumption
• USB connection for use outside a vehicle (5V).

Manufacturer Documents

INSTRUCTIONS for Mosconi AMAS-LD4C Universal BT Module
