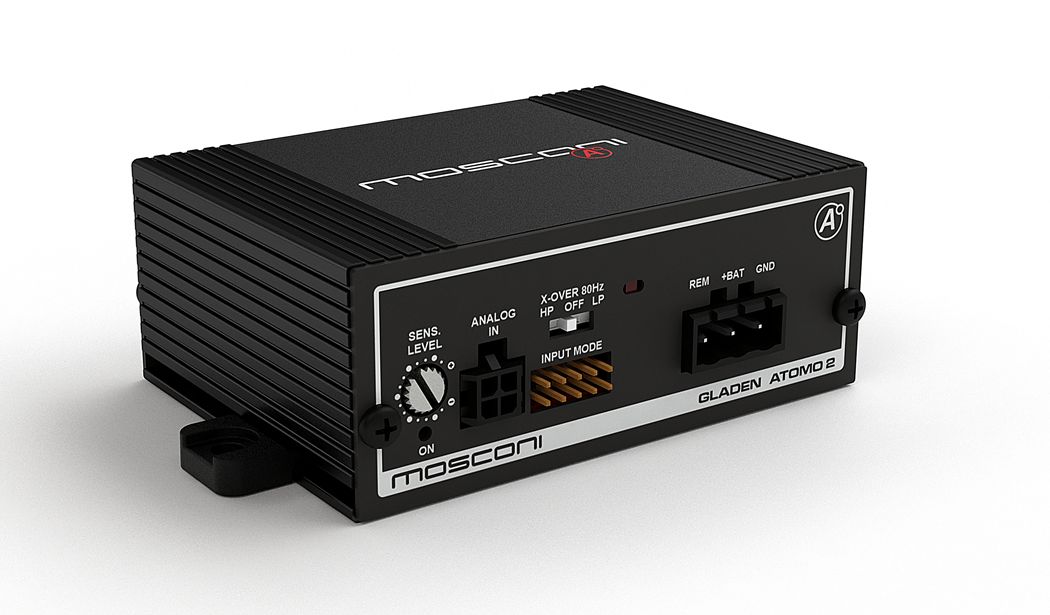

Mosconi ATOMO 2 2-channel amplifier, Class D, 2 x 100W at 4 Ohms, 12V and 24V versions

Mosconi ATOMO 2 offers maximum performance in the smallest of spaces. This extremely compact, powerful 2-channel amplifier has wide input voltage range -- 0.4 Vrms - 5 Vrms (low level) / 1.6 Vrms - 20 Vrms (high level). It features inputs that are flexibly configurable (floating/fixed ground, switchable load resistors) and remote detection (BTL). For high pass / low pass filter, inputs feature Molex® industry standard (Micro-Fit) connections. Available in 12 V and 24 V versions.

Optional: EXT2-RCA for low-level input (see Specifications).

Features

• Class D amplifier
• 2 x 100 Watts at 4 Ohms
• 12 V and 24 V versions

Manufacturer Specifications

Power Supply:

Power supply voltage: 10 - 16 V

DC-DC converter typology: Unregulated – Push Pull

External fuse: 1 x 15 A

Power-on/Power-off voltage threshold: 9 V/6 V

Mute delay time: 3 secs

Autosense power-on (HL only): BTL source only

Overall efficiency: > 75 %

Standby current: < 0.1 mA (typical)

Idle current: 0.47 A at 14.4 V

Thermal cutoff threshold: 93 degrees C (± 5 %)

Output Power RMS at 14.4 V (1 % THD):

Output power RMS at 4 Ohms: 100 W x 2 or 220 W x 1

Output power RMS at 2 Ohms: 110 W x 2

T.H.D. at 4 Ohms: < 0.3 % (1 kHz / 90 Power rating ref)

T.H.D. at 2 Ohms: < 0.5 % (1 kHz / 90 Power rating ref)

Minimum load: 2 Ohms with musical signal

Signal Input:

Low level input sensitivity range: 0.4 ÷ 5 Vrms

High level input sensitivity range: 1.6 ÷ 20 Vrms

Bandwidth (-3dB ÷ 10W): 5 Hz ÷ 40 kHz

Low level Input impedance: > 15 kOhms

High level input impedance: 21 Ohms (dummy load with jumper)

Ground reference (LL only): OPEN – 21 Ohms

Features:

Onboard filter configuration: OFF - HP - LP

Onboard filter slope: 12 dB/Oct

Onboard filter frequency: 80 Hz

Autosense power-on (HL only): BTL source only

Start and Stop compliance: yes

Connections:

Low/High level input: Micro-Fit

Speaker out: Mini-Fit

Power supply: Mini-Fit

Appearance:

Dimensions: 86 x 65 x 34 mm

Weight: 275 grams

(RMS = Root Mean Square, measure of continuous power in audio devices)
