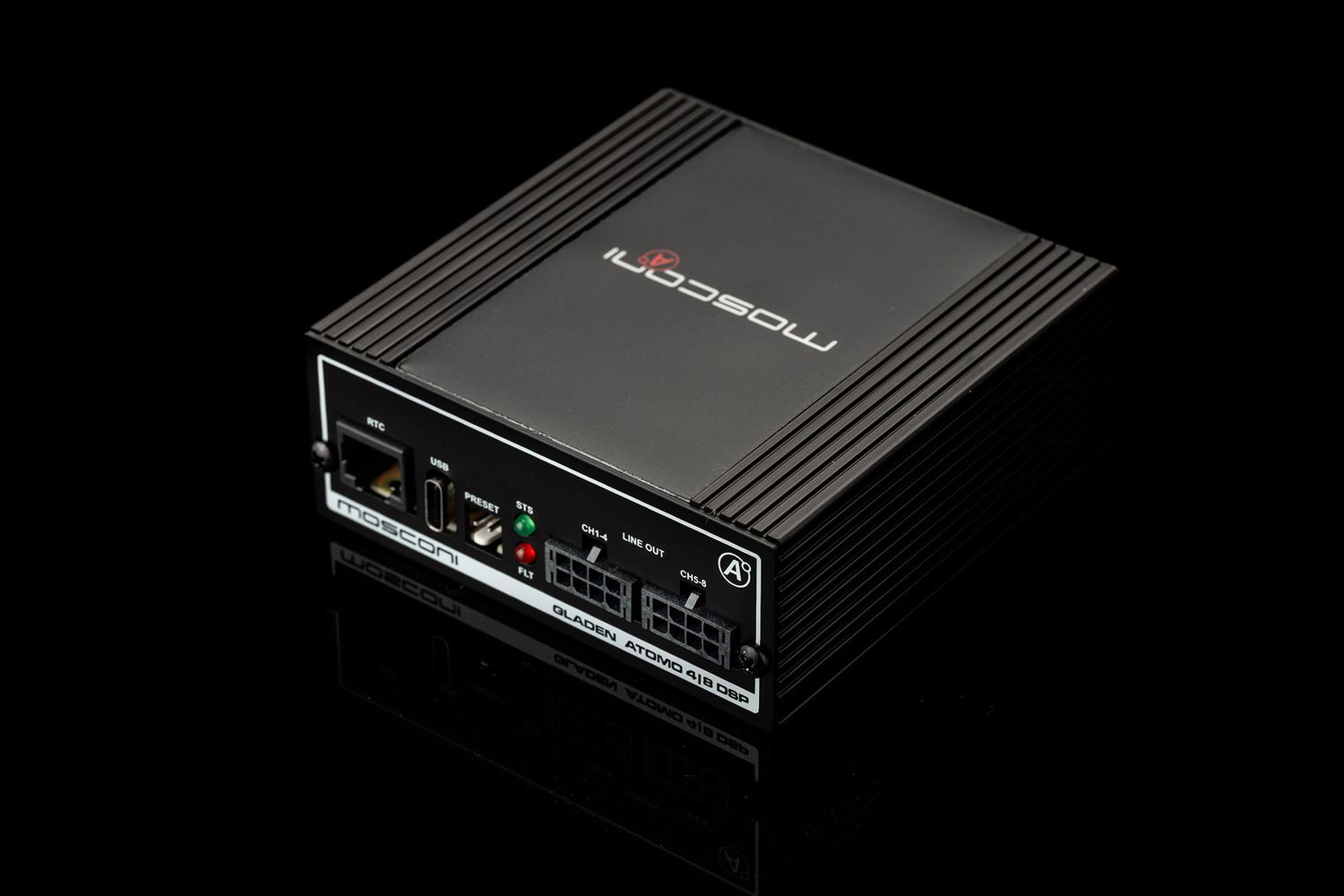

Mosconi-Gladen ATOMO 4-8 DSP – Ultra small Digital Signal Processor with 4-channel input, 8-channel output, 5V operating voltage, 8-32V

ATOMO 4|8 DSP "Matrix" Maximum performance in the smallest possible space

Extremely powerful DSP in a compact design. Provides four analog (high/low level) and three digital inputs (SP-Dif, Bluetooth streaming with MOS-BTS, BT+ with direct DSP access). Expandable to 8 analog inputs with MOS EXT4HLin. Compatible with 12 V and 24 V on-board power supply. Six analog outputs. 64 bit platform with dISC functions (dynamic equalizer and phase control). All connectors Molex® industry standard. Direct RTC connection for volume, sublevel or input volume.

Note: All DSP's require accessories to accept RCA inputs. See: Mosconi Gladiator DSP Controller (for all products with BT+ port, i.e., PICO, ONE, PRO & AERO). Consult the Mosconi-Gladen DSP Products/Accessories Compatibility chart below for more information.

Software: Mosconi-Gladen also provides accompanying software, available from their website.

Features

• 4-channel input
• 8-channel output
• Operating voltage 5 Volt / 8 - 32 Volt

Manufacturer Specifications

Specifications:

Operating Voltage: 8 V – 32 V

Operating Voltage via USB: 5 V

Input voltage: 2 Vrms (low-level) / 12 Vrms (high-level)

Dimensions: 86 x 86 x 34 mm

Weight: 245 grams

(RMS = Root Mean Square, measure of continuous power in audio devices)

Manufacturer Documents

MANUAL for Mosconi ATOMO 4-8 DSP
