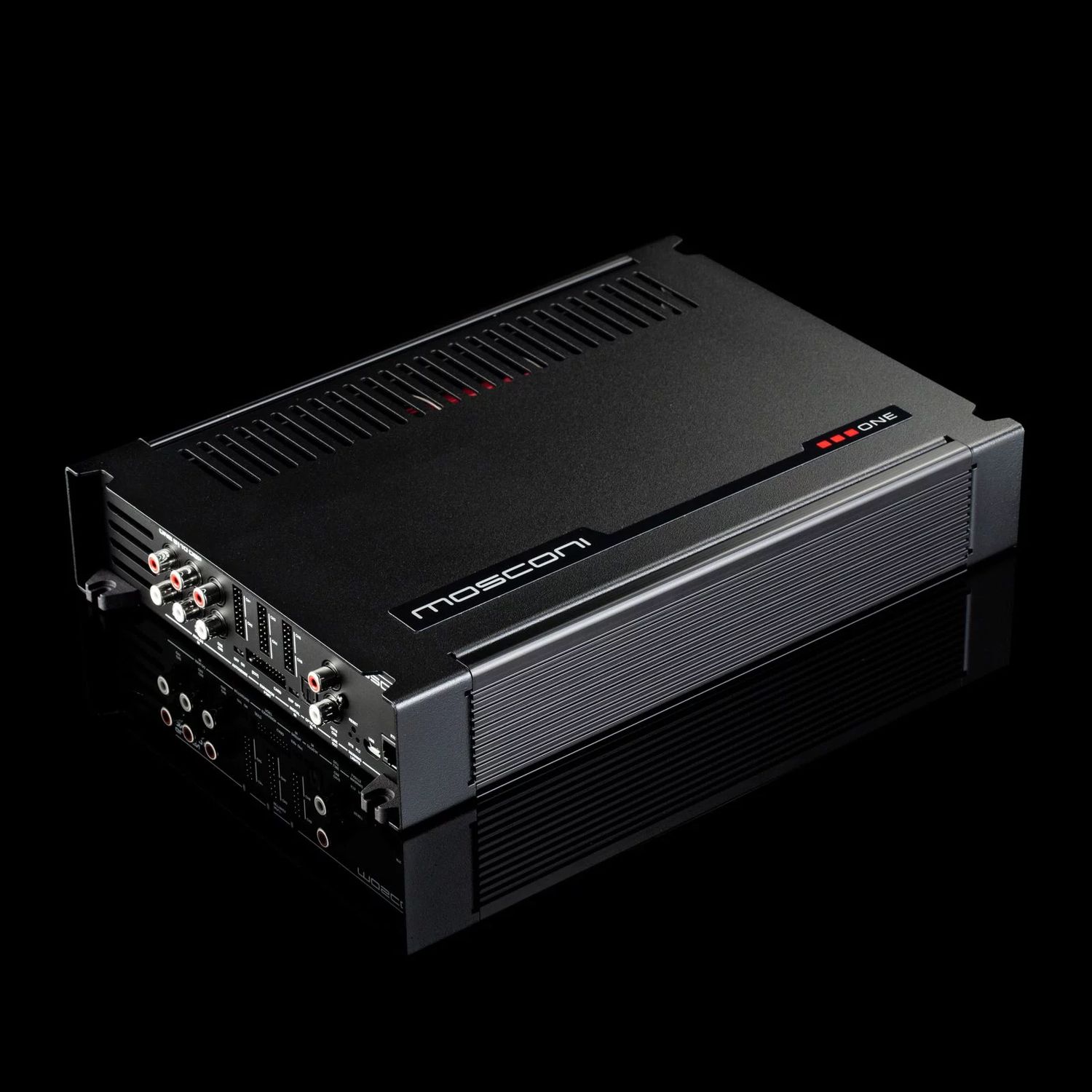

Mosconi ONE 6-10 DSP 6-channel amplifier with 10-channel DSP, Class AB, up to 6 x 120W at 2 Ohms, 12V and 24V versions

The new Mosconi ONE 6|10 DSP is a universal 6 channel DSP amplifier in Class AB technology. It is the ideal amplifier for speaker systems in combination with efficient subwoofers.

In addition to the revised optics, this 6-channel amplifier has a 10-channel DSP with the latest software. Thus, the new ONE Line amplifier series is now also compatible with our GUI 3.xx software and offers you full functionality. The output side power amp section has remained analog to spoil the listener with a warm and powerful sound image.

Of course, all speaker outputs are bridgeable with almost limitless configurations open to the user.
With its power of 6 x 100 watts RMS, the ONE 6|10 DSP is sufficiently equipped for large 3-way solutions as well as for complete multi-channel concepts.

For system expansion, the integrated 10-channel DSP offers two additional stereo outputs. The Mosconi ONE 6|10 DSP is equipped with a Molex® speaker connection. This not only ensures clean cabling, but is also compatible with all plug and play cable sets from our SoundUp program. Additional features include:

• 6 channel amplifier
• New design
• Analog amplifier technology
• 10 channel DSP
• Loudspeaker outputs bridgeable
• 6 x 100 watts at 4 Ohms
• 6 x 120 watts at 2 Ohms
• 3 x 240 Watt at 4 Ohms (bridged)
• Auto on (high level)

Note: All DSP's require accessories to accept RCA inputs. See: Mosconi Gladiator DSP Controller (for all products with BT+ port, i.e., PICO, ONE, PRO & AERO). Consult the Mosconi-Gladen DSP Products/Accessories Compatibility chart below for more information.

Optional: RTC for remote control (see specifications). Software: Mosconi-Gladen also provides accompanying SOUNDUP configuration software, available from their website.

Features

• 6 channel DSP amplifier
• 10 channel DSP
• Class AB technology
• Up to 6 x 120 Watts at 2 Ohms
• 12V and 24V versions

Manufacturer Specifications

Output Power:

Output power at 4 Ohms: 6 x 100 Watt

Output power at 2 Ohms: 6 x 120 Watt

Output power at 4 Ohms: 4 x 95 Watt + 1 x 250 Watt BTL

Bridged Output power at 4 Ohms: 3 x 240 Watt

---

Specifications:

Input sensitivity: 0.35 V - 16 V

Fuse: 2 x 40 A

Analog DSP Output: 4 x 2 Vrms

Digital input: Optical (Toslink)

Remote Control: RTC (optional)

Dimensions: 290 x 210 x 55 mm

(RMS = Root Mean Square, measure of continuous power in audio devices)

Manufacturer Documents

MANUAL for Mosconi ONE 6-10 DSP
