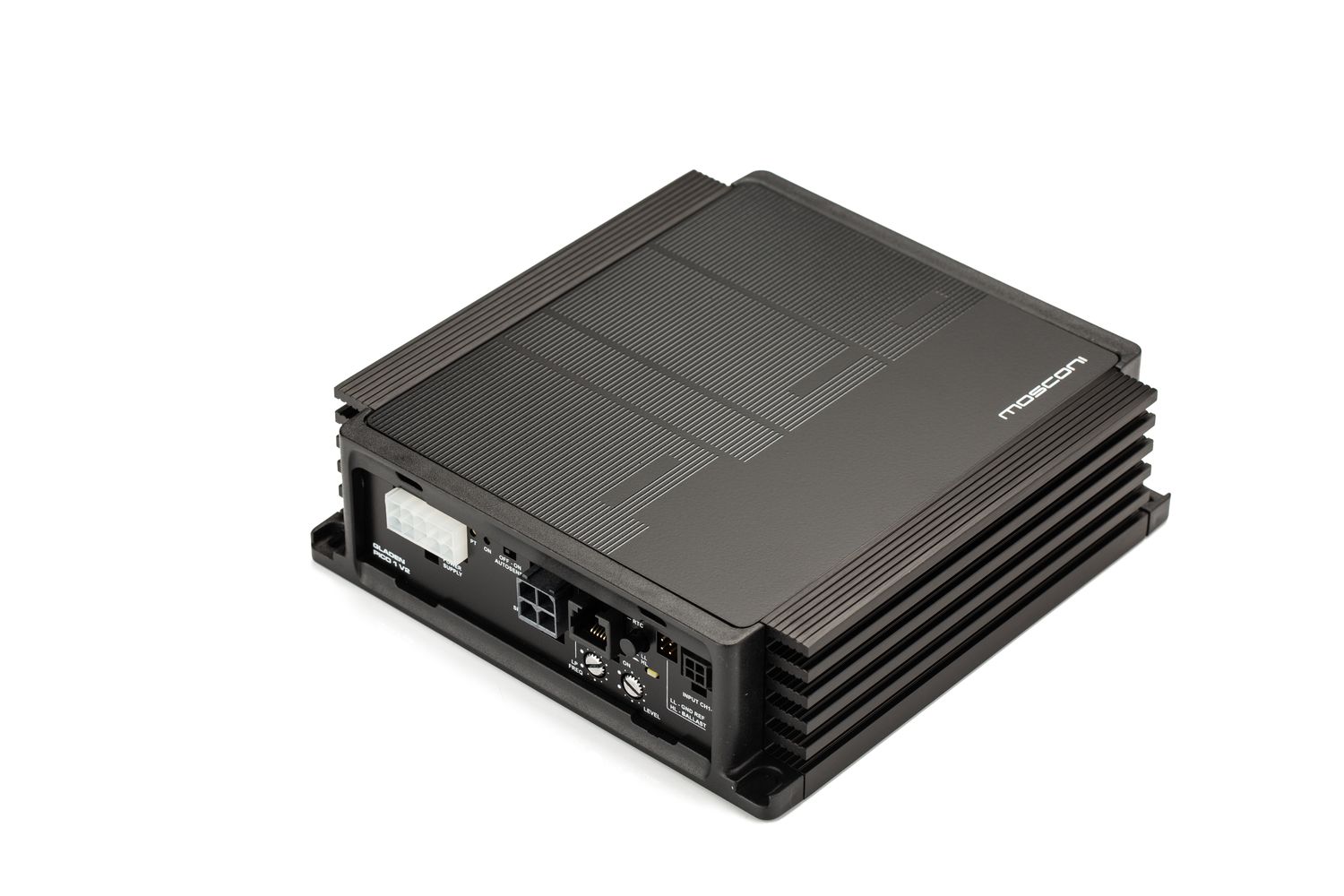

Mosconi PICO 1-V2 1-channel amplifier, Class D, up to 750 at 2 Ohms, 12V and 24V versions

Full-range PWM amplifier with separate, synchronized modulation and fast high-current Mosfets. The Mosconi PICO 1 delivers a full 9,000 Watts into 1 Ohm. It provides necessary power even to powerful subwoofers and extreme front systems at any time.

Ideal (subwoofer) supplement to a Mosconi PICO DSP amplifier, but with the high-level and low-level input and its own filters, it can also be used universally.

Also available in an 18-Volt version that is specially adapted to the electrical system of the latest Tesla models, see Mosconi PICO 1-V2-18Volt 1-channel amplifier, Class D, 18 Volts.

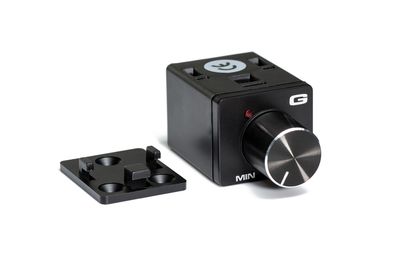

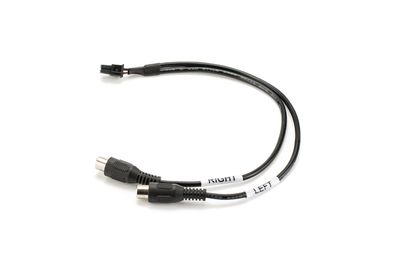

Optional: Mosconi RTC-2 for remote control, Mosconi EXT2RCA for low-level input

Features

• Automatic switch-on (only high level, SE or BTL mode)
• Remote volume control (optional)
• Molex® connectors

Manufacturer Specifications

Output Power:

Output power RMS at 4 Ohms: 1 x 350 Watts

Output power RMS at 2 Ohms: 1 x 600 Watts

Output power RMS at 1 Ohm: 1 x 900 Watts

Specifications:

Input voltage: 0.3 V - 20 V

Overall efficiency: > 75 %

Auto-On (only High Level): Off - BTL

Low-pass filter: Off / 45 - 310 Hz (12 dB/Oct)

Subsonic filter (always on): 13 Hz (12 dB/Oct)

Dimensions: 150 x 115 x 46 mm

Weight: 1,050 grams (1.05 kg)

(RMS = Root Mean Square; measure of continuous power in audio devices)

Manufacturer Documents

DATA SHEET for Mosconi PICO 1 V2

MANUAL for Mosconi PICO 1 V2

GROUND REFERENCE for Mosconi PICO 1 V2
