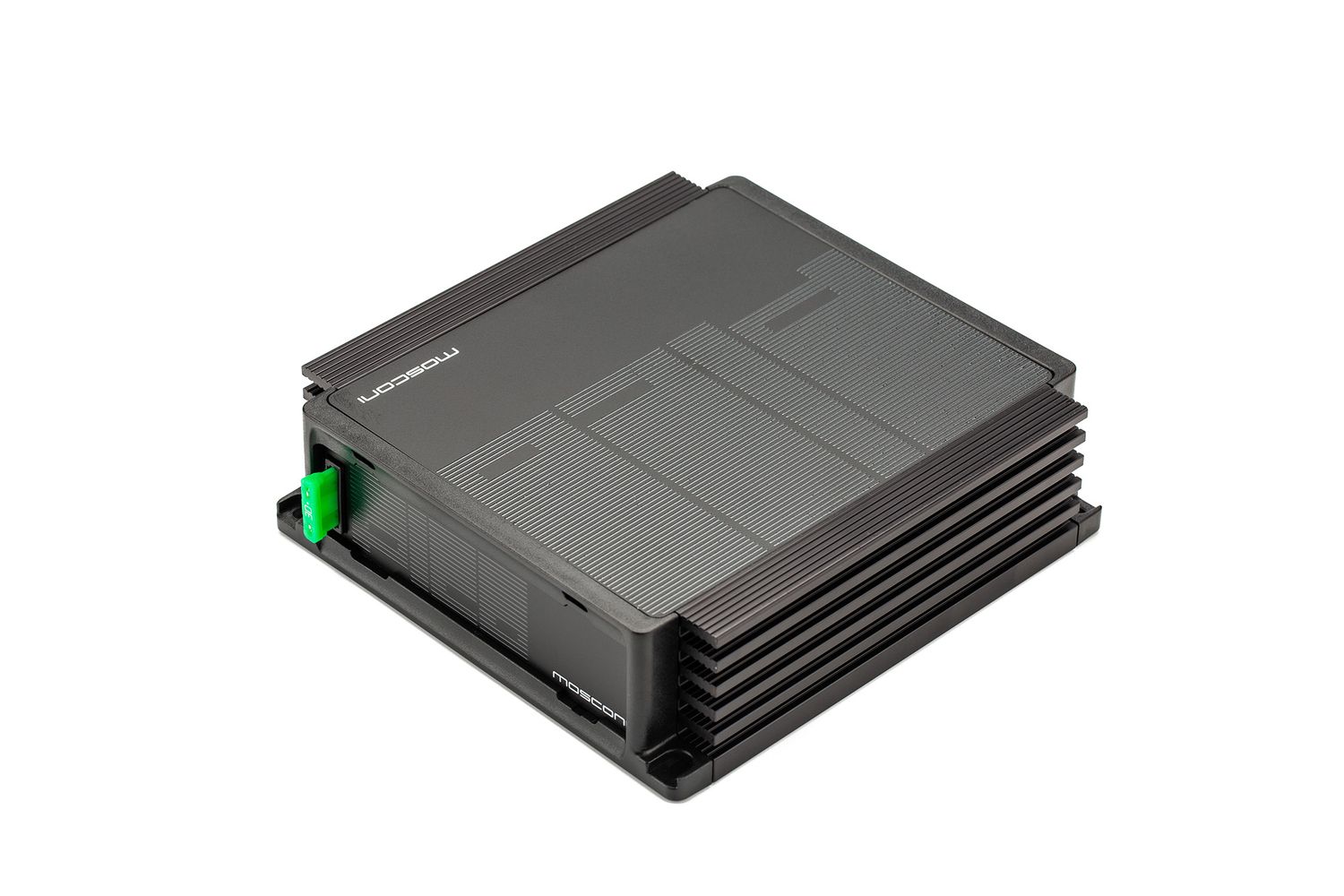

Mosconi PICO V2 4-8 4-channel amplifier with integrated 8-channel DSP, Class D, up to 460W

With the PICO V2 4|8 DSP, Mosconi launches the second generation of PICO 4-channel DSP amplifiers on the car hi-fi market. In addition to improved connectivity, the V2 PICO scores with increased sound performance and better efficiency.

All connections are now on one side and all relevant setting switches required for operation in modern vehicles are located under a magnetic housing cover. Additionally, all inputs are now high and low level capable. All desired DSP settings can now be made via a USB-C connection.

Perfect OEM integration

Powerful DSP amplifier, optimized for use on the factory radio. Eight analog inputs up to 30 V, flexible routing, 3 x input EQ and delay. With 4 x 90 Watts, the PICO V2 4|8 DSP is ideal for active and semi-active systems, as well as classic front + rear applications. With two digital inputs (SP-Dif and BT+) and four processed line-outs, it is equipped for all future configurations.

Note: All DSP's require accessories to accept RCA inputs. See: Mosconi Gladiator DSP Controller (for all products with BT+ port, i.e., PICO, ONE, PRO & AERO). Consult the Mosconi-Gladen DSP Products/Accessories Compatibility chart below for more information.

Optional: RTC-2 for remote control, EXT4HLIN for channel expansion (see specification details).

Software: Mosconi-Gladen also provides accompanying SOUNDUP configuration software, available from their website.

Features

• 4 channel amplifier
• Class D technology
• Integrated 8 channel DSP
• Up to 460 Watts total power
• Generation 2024

Specification Details

Input:

• 8 x analog inputs switchable (high level / low level) Class SB compatible, 2-30V
• 1 x digital input SP-Dif optical (8 kHz - 96 kHz sampling rate)
• 1 x digital input coax digital (8 kHz - 96 kHz sampling rate)
• 1 x bt port with SP-Dif - TTL (8 kHz - 96 kHz, e.g. for Mos_BTS streaming module)
• bt extended digital audio port (BT+)
  (flexible 8 kHz - 384 kHz synchronous digital input for audio sources with 2 - 16 channels, direct DSP access without jitter, e.g. for MOS BTS-LD4C BT streaming module or extended analog inputs)

DSP:

• 912 MHz, 32-bit audio port, 64-bit core
• Double precision 56 Bit filter calculation
• Sample rate 96kHz

Control:

• 1 x remote connector (analog, for RTC.2 roti remote control)
• 1 x BT+ control port (connection MOS-BT3.0 (app control), RC-Can (CAN bus control), MOS_USB2.0 (programming dongle), BTS-LD4C Highres Streaming Module, Gladiator Controller
• 1 x remote out, 1 x remote in, auto remote for high level connection
• Connections with Molex® plug contacts
• Very small size with low heat generation, best suited for installation behind panels

Software:

• 3 x 9 band parametric input EQ (de-equalizing)
• 6 x input delay 0 - 3 ms / 0.01 ms (de-delay)
• 10 x input level control digital (signal conditioning)
• Flexible mixer for signal routing
  (Side separated, can sum and subtract, 10 inputs to 4 x 2 output groups)
• 6 x 30 band or 4 x 30 band + 2 x 15 band group EQ
  (parametric, relative phase remains stable)
• 8 x 10 band output filters
• Highpass / lowpass / highshelf / lowshelf / notch / allpass 1st + 2nd order / speaker-EQ)
• 8 x speaker-delay 0 - 12 ms, 0,02 ms
• 8 x speaker phase switch
• Flexible phase control with calculation tool
• Extensive integrated analysis tools
• B.A.R.N.I.E. compatible

Manufacturer Specifications

Output power/output side:

Output power at 4 Ohms: 4 x 90 Watts (channel 1+2 | 5+6) 2-ohm stable

Output power at 4 Ohms: 2 x 85 Watts (channel 1-2) + 230 watts bridged channel (5+6)

Output power at 4 Ohms: 2 x 230 Watt (Bridged Channels 1+2 | 5+6)

Line Out: 4 x 2 Vrms Line Out

Output channel 3+4 is a pure bypass of input channel 3+4

Specifications:

Input voltage: 2 Vrms (LL) - 15 Vrms (HL) by default - 30 Vrms (HL)

Overall efficiency: > 80 %

Auto-On (only High Level): Off - BTL

Dimensions: 150 x 160 x 46 mm

Weight: 1,150 grams (1.15 kg)

(RMS = Root Mean Square, measure of continuous power in audio devices)

Manufacturer Documents

MANUAL for Mosconi PICO V2 4-8 DSP
