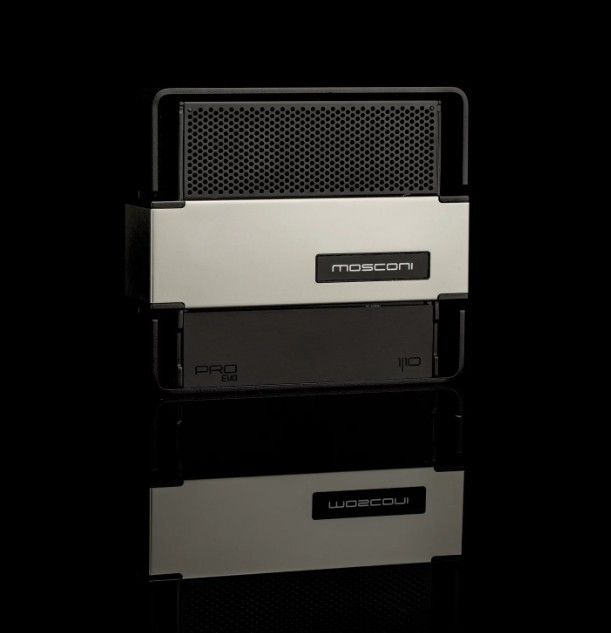

Mosconi PRO 1-10 EVO 1-Channel Class D Amplifier, 3,000 Watts at 1 Ohm

Ultimate performance, maximum control: The Mosconi PRO 1|10 EVO is a powerful mono power amplifier designed for high-performance car audio systems. With up to 3,000 Watts at 1 Ohm, it provides ample power while maintaining precise control over the speakers. Thanks to its combination of efficient Class-D technology and optimized signal architecture, the PRO 1|10 EVO is ideal for subwoofer and high-power mid-woofer applications.

High power density in a compact design: The Class-D amplifier delivers high output power while requiring minimal space and generating low heat. This makes the PRO 1|10 EVO ideal for installations with limited space. Precise signal adjustment is possible without potentiometers.

Precise signal adjustment without potentiometers: Input sensitivity can be adjusted separately for each channel via DIP switches. This allows for consistent and long-lasting settings without the need for mechanical wear parts. Adjustments are made in 0.25-Volt increments within the range of 0.25 to 8 Volts.

Optimized DirectDSP input: The integrated DirectDSP input allows for direct connection to external DSP systems. Since signal processing in the amplifier is eliminated, the audio signal remains unchanged and low-loss. This is particularly relevant for fully DSP-based systems.

Stable power output under real-world conditions: A microprocessor-controlled power supply ensures stable output power under real-world conditions, even with Voltage fluctuations in the vehicle. An internal system monitors temperature and operating status, actively controlling cooling.

Features

• Class-D mono power amplifier
• Up to 3,000 Watts RMS at 1 Ohm
• High damping factor (>1,000) for precise speaker control
• Efficiency-optimized design with low heat generation
• DIP switch configuration for exact signal tuning
• DirectDSP input for unaltered signal routing
• Microprocessor monitoring with temperature-controlled fan
• 4-layer PCB with 70 µm copper for minimal losses

Specifications

Output Power:

• Output power at 4 Ohms: 1 x 1000 Watts
• Output power at 2 Ohms: 1 x 2000 Watts
• Output power at 4 Ohms: 1 x 3000 Watts

Data:

• Input sensitivity: 0.25 - 8 Volt
• Crossover: DDSP mode only

Dimensions: 235 x 205 x 55 mm (9.25 x 8.07 x 2.165 inches)

Weight: 2.5 kg (5.5 pounds)

Manufacturer Documents

MANUAL for Mosconi PRO 1-10 EVO 1-Channel Amplifier
