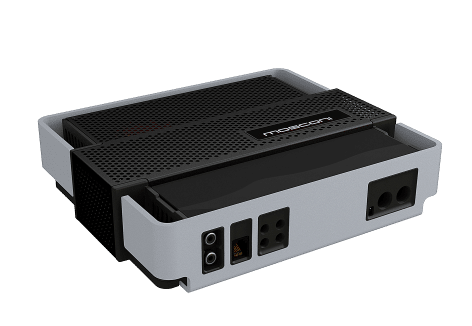

Mosconi PRO 2-10 2-channel amplifier, Class AB, up to 2 x 360 Watts at 2 Ohms

The Mosconi Pro 2|10 amplifier is a classic 2-channel Class AB amplifier. Equipped with active crossovers, autosense function, as well as a remote level control input, it is very versatile. Additional features include:

• DDSP - Direct DSP (bypassing all preamplifier circuits)
• High Level / Low Level selectable input
• Autosense (only in BTL mode)
• RTC - Allows volume regulation by remote control (optional)
• Power supply and temperature management controlled by microprocessor

Optional: RTC-2 for remote control operation.

Features

• 2 channel amplifier
• Class AB technology
• Up to 2 x 360 at 2 Ohms

• Available in Black/Silver finishing
• Class AB power amplifier full MOSFET
• Unregulated power supply
• High level input with autosense power-on
• Cross Over with independent High Pass and Low Pass filter
• Direct DSP
• Remote Volume Control RTC (optional)

Manufacturer Specifications

Output Power:

Output power at 4 Ohms: 2 x 240 Watts

Output power at 2 Ohms: 2 x 360 Watts

Bridged Output power at 4 Ohms: 1 x 720 Watts

Specifications:

Input sensitivity:

0.35 V ÷ 12 V (6.2 V in DDSP mode)

Crossover:

LOW PASS 43 ÷ 300 Hz [24 dB/Oct]

HIGH PASS 18 ÷ 280 Hz [24 dB/Oct]

Dimensions: 235 x 205 x 55 mm

Weight: 2.3 kg (2,300 grams)

Housing: Available in black/silver finish

(RMS = Root Mean Square, measure of continuous power in audio devices)

Manufacturer Documents

DATA SHEET for Mosconi PRO 2-10 Amp

MANUAL for Mosconi PRO 2-10 Amp
