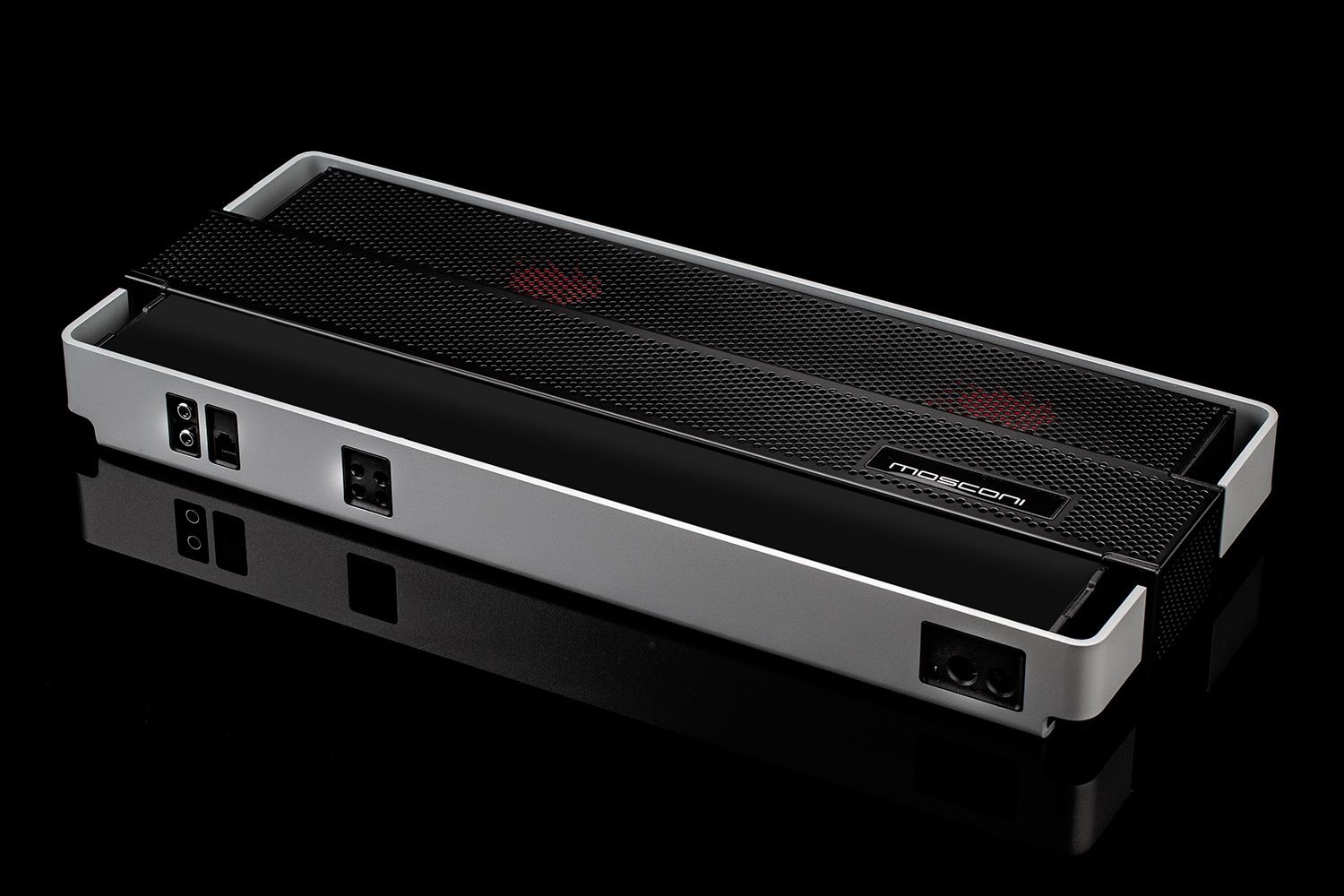

Mosconi PRO 2-30 2-channel amplifier, Class D, up to 2 x 825W at 2 Ohms

The Mosconi PRO 2|30 is the first choice when it comes to maximum performance. With the latest Mosconi Class D technology, the PRO 2|30 is capable of driving all types of speaker or subwoofer chassis.

Thanks to its generous amplifier design and the use of the latest Class D technology, the Mosconi 2|30 is not only the perfect playing partner for sound level applications, high-end users will also appreciate the absolute and perfect music reproduction. Additional features include:

• DDSP - Direct DSP (bypassing all preamplifier circuits)
• High Level / Low Level selectable input
• Autosense (only in BTL mode)
• RTC - Allows volume regulation by remote control (optional)
• Power supply and temperature management controlled by microprocessor

Features

• 2 channel amplifier
• New Class D technology
• Up to 2 x 825 at 2 Ohms

Manufacturer Specifications

Output Power:

Output power at 4 Ohm: 2 x 550 Watts

Output power at 2 Ohm: 2 x 825 Watts

Bridged Output power at 4 Ohm: 1 x 1650 Watts

Bridged Output power at 2 Ohm: 1 x 2500 Watts

Specifications:

Input sensitivity: 0.25 V ÷ 8.3 V (4.3 V in DDSP mode)

Crossover:

LOW PASS 43 ÷ 300 Hz [24 dB/Oct]

HIGH PASS 18 ÷ 220 Hz [24 dB/Oct]

Dimensions: 500 x 205 x 55 mm

Weight: 5.0 kg (5,000 grams)

Housing: Available in black/silver finish

(RMS = Root Mean Square, measure of continuous power in audio devices)

Manufacturer Documents

MANUAL for Mosconi PRO 2-30 Amp
