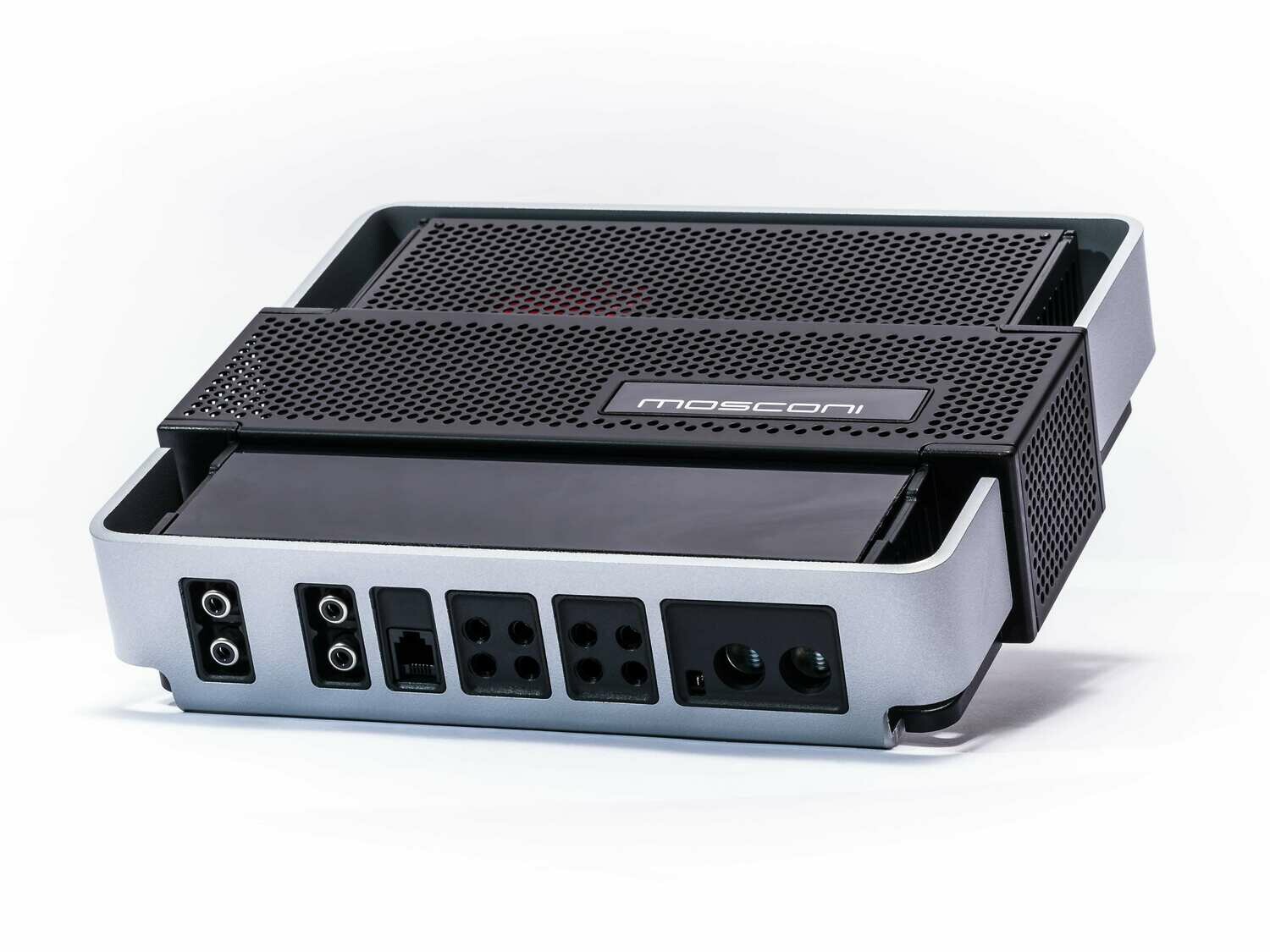

Mosconi PRO 4-10 4-channel amplifier, Class AB, up to 4 x 160W at 2 Ohms

The Mosconi Pro 4|10 amplifier is a classic 4-channel Class AB amplifier. Equipped with active crossovers, autosense function as well as a remote level control input, it is very versatile in the vehicle. Additional features include:

• DDSP - Direct DSP (bypassing all preamplifier circuits)
• High level / low level selectable input
• Autosense (only in BTL mode)
• RTC - Allows volume regulation by remote control (optional)
• Power supply and temperature management controlled by microprocessor

Features

• · 4 channel amplifier
• · Class AB technology
• · Up to 4 x 160 Watts at 2 Ohms
• · Available in Black/Silver finishing

• Power Rating: 120 Watts per channel at 4 Ohms < 1% THD+N
• Sn Ratio: > 74 dBA / >95 dBA (DDSP) (ref: 1 Watt into 4 Ohms)
• Click here to download the Specifications

(*) VERY IMPORTANT NOTE - READ CAREFULLY
4 Ohms ST or 8 Ohms BTL - CONTINUOUS SINEWAVE SIGNAL - pure resistive load or speaker load
2 Ohms ST or 4 Ohms BTL - MUSICAL SIGNAL - pure resistive load or speaker load
2 Ohms - MUSICAL SIGNAL - pure resistive load or speaker load (only CH5)

Manufacturer's Specifications

Output Power:

Output power at 4 Ohms: 4 x 120 Watts

Output power at 2 Ohms: 4 x 160 Watts

Bridged Output power at 4 Ohms: 2 x 320 Watts

Specifications:

Input sensitivity: 0.35 V - 12 V (6.2 V in DDSP mode)

Crossover:

· CH 1/2= HP: 43 - 500 Hz (x 1) or 430 - 5000 Hz (x 10)

· CH 3/4= HP: 50 - 200 Hz and LP: (430 - 5000 Hz)

Dimensions: 235 x 205 x 55 mm

Weight: 2.3 kg (2,300 grams)

Housing: Available in black/silver finish

(RMS = Root Mean Square; measure of continuous power in audio devices)

Manufacturer Documents

SPECIFICATIONS for Mosconi PRO 4-10 Amplifier

MANUAL for Mosconi PRO 4-10 Amplifier
