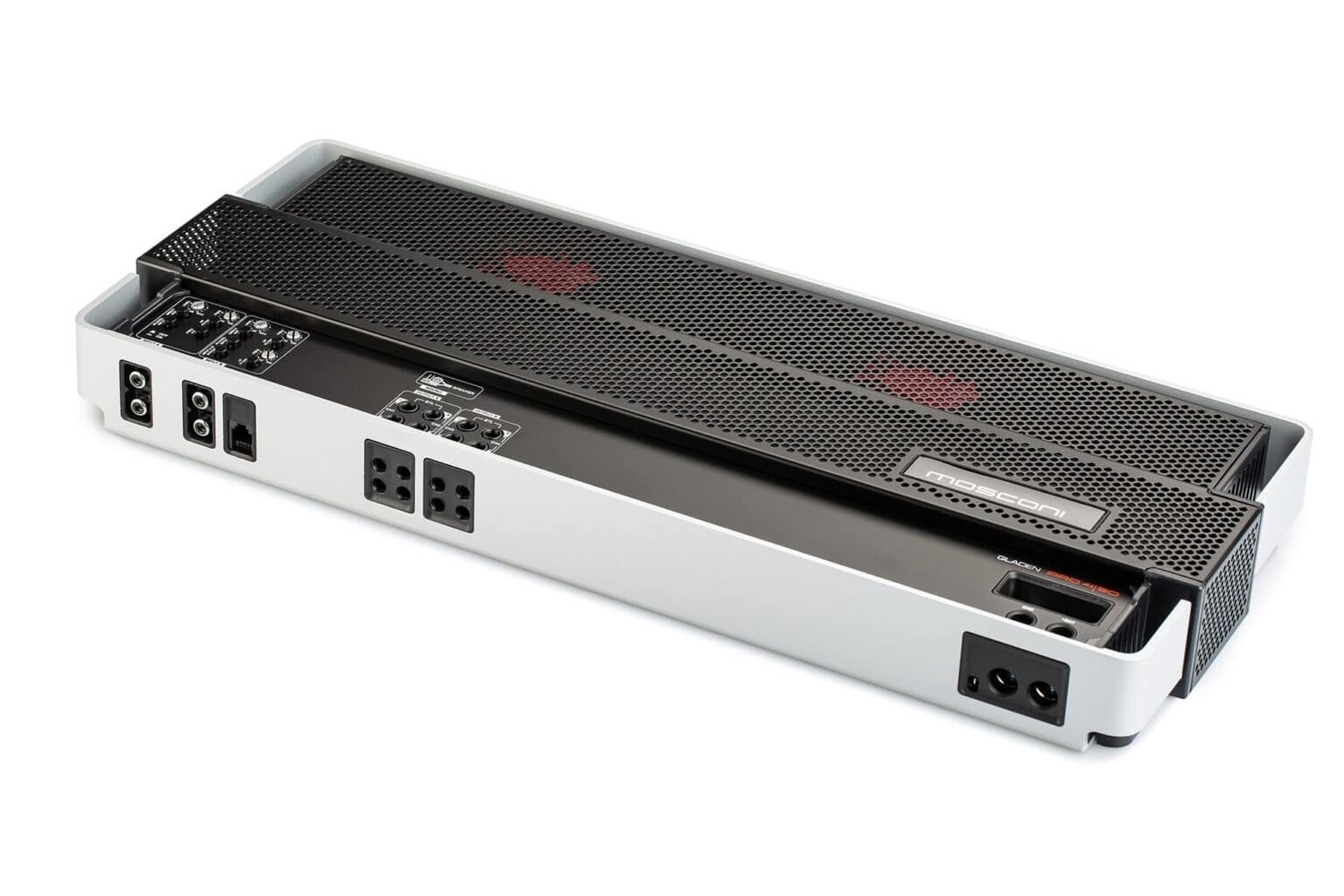

Mosconi PRO 4-30 4-Channel Amplifier, Advanced AB - Class AAB
Product Details
Brand: Mosconi
Amplifier Channels: 4
Mosconi PRO 4-30 4-channel amplifier, Advanced AB - Class AAB, up to 4 x 225 Watts at 2 Ohms
Mosconi Chief Developer, Filippo Kania's masterpiece. The Mosconi PRO 4|30 is a high-end 4-channel amplifier with a new Advanced-AB (AAB) amplifier technology. With this revolutionary AAB circuit, the PRO 4|30 runs up to 30 Watts in pure Class A mode and spoils the listener with everything that makes a Class A amplifier: airy, fine, rich in detail with an incredible amount of space.
With the combination of an extremely open, finely drawn sound image and its unique naturalness, the PRO 4|30 inspires music from the very first beat. When performance and headroom are required, it packs a punch with 170 Watts (at 4 Ohms) per channel (450 Watts bridged).
Features
- 4 channel amplifier
- Class AAB ("Advanced AB") technology
- Up to 4 x 225 Watts at 2 Ohm
- Available in Black/Silver finishing
- Power Rating: 170 Watts per channel at 4 Ohms < 1% THD+N
- Sn Ratio: > 74 dBA / >95 dBA (DDSP) (ref: 1 Watt into 4 Ohms)
(*) VERY IMPORTANT NOTE – READ CAREFULLY
4 Ohms ST or 8 Ohms BTL – CONTINUOUS SINEWAVE SIGNAL – pure resistive load or speaker load
2 Ohms ST or 4 Ohms BTL – MUSICAL SIGNAL – pure resistive load or speaker load
2 Ohms – MUSICAL SIGNAL – – pure resistive load or speaker load (only CH5)
Manufacturer Specifications
Output Power:
Output power at 4 Ohms: 4 x 170 Watts
Output power at 2 Ohms: 4 x 225 Watts
Bridged Output power at 4 Ohms: 2 x 450 Watts
Specifications:
Input sensitivity: 0.35 V ÷ 12 V (5.3 V in DDSP mode) [CH 1/2/3/4]
Crossover:
· CH 1/2 = HP: 43 ÷ 500 Hz (x 1) or 430 ÷ 5000 Hz (x 10)
· CH 3/4 = HP: 18 ÷ 220 Hz & LP: 43 ÷ 500 Hz
Signal to Noise Ratio:
> 83 dBA (ref: 1 Watt into 4 Ohm)
Dimensions: 500 x 205 x 55 mm
Weight: 5.1 kg (5,100 grams)
(RMS = Root Mean Square, measure of continuous power in audio devices)
Manufacturer Documents
MANUAL for Mosconi PRO 4-30 Amp
