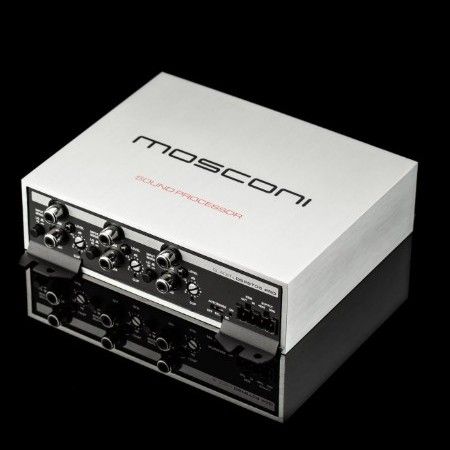

Mosconi PRO 6-8 (6TO8) DSP Digital Signal Processor with 6-channel input, 8-channel output

In 2009, when car audio was still largely analog, Henning Gladen initiated the development of a digital signal processor (DSP) at Mosconi. In the digital world, where complex algorithms calculate many digits after the decimal point, meeting Henning's and Mosconi’s high standards would require extreme precision. Ultimately, the goal was reached with a cooperation of the best: The analog competence of Mosconi, the art of German digital engineering, and the expertise of the suppliers, such as Texas Instrument, Analog Devices and Microchip.

The result, a para-graphic EQ and signal controlled mixer, was revolutionary for it’s time: the 6-8 (6TO8) Mosconi DSP became a milestone. This DSP features 6-channel input and 8-channel output, the ATOM mixer menu with dynamic preset switching and “trigger” control, and 12 V remote-out / autosense at high level signal.

Note: All DSP's require accessories to accept RCA inputs. See: Mosconi Gladiator DSP Controller (for all products with BT+ port, i.e., PICO, ONE, PRO & AERO). Consult the Mosconi-Gladen DSP Products/Accessories Compatibility chart below for more information.

Software: Mosconi-Gladen also provides accompanying software, available from their website.

Features

• 6 channel input
• 8 channel output
• 48 kHz / 24 bit High Resolution-Audio
• DSP Technology made by cooperation Mosconi-Gladen
• Designed and made by Mosconi, Italy

Manufacturer Specifications

Inputs:

• 6 x RCA (Cinch), switchable high/low level with autosense
• 1 x BT interface (only compatible with BTM)
• 2 of them freely selectable as prioritized auto-fade/aux
• ATOM Mixer menu with dynamic preset switching and "trigger" control

Outputs:

• 8 x RCA analog
• 12 V remote-out / autosense at high level signal

Equalizer:

• Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40
• Fixed: Channels Front (1 - 4)
• Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free

Filter:

• 5 per channel freely configurable
• Highpass, lowpass, shelf, notch, allpass, peak EQ
• Slope 6 - 120 dB/oct, variable Q, time and level

Other:

Time correction: 0 - 12 ms (0.020 ms steps)

Input delay: (channels 1 - 6) for correction of run-time delayed factory systems

Phase shift: 0 – 180 degrees

Level adjustment outputs:

• 0.5 - dB steps
• Mute function
• 4 x preset memory (switching without sound interruption)

Dimensions: 150 x 125 x 40 mm (including mounting flange)

(RMS = Root Mean Square, measure of continuous power in audio devices)

Manufacturer Documents

DATASHEET for Mosconi PICO 6-8 DSP

MANUAL for Mosconi PICO 6-8 DSP
