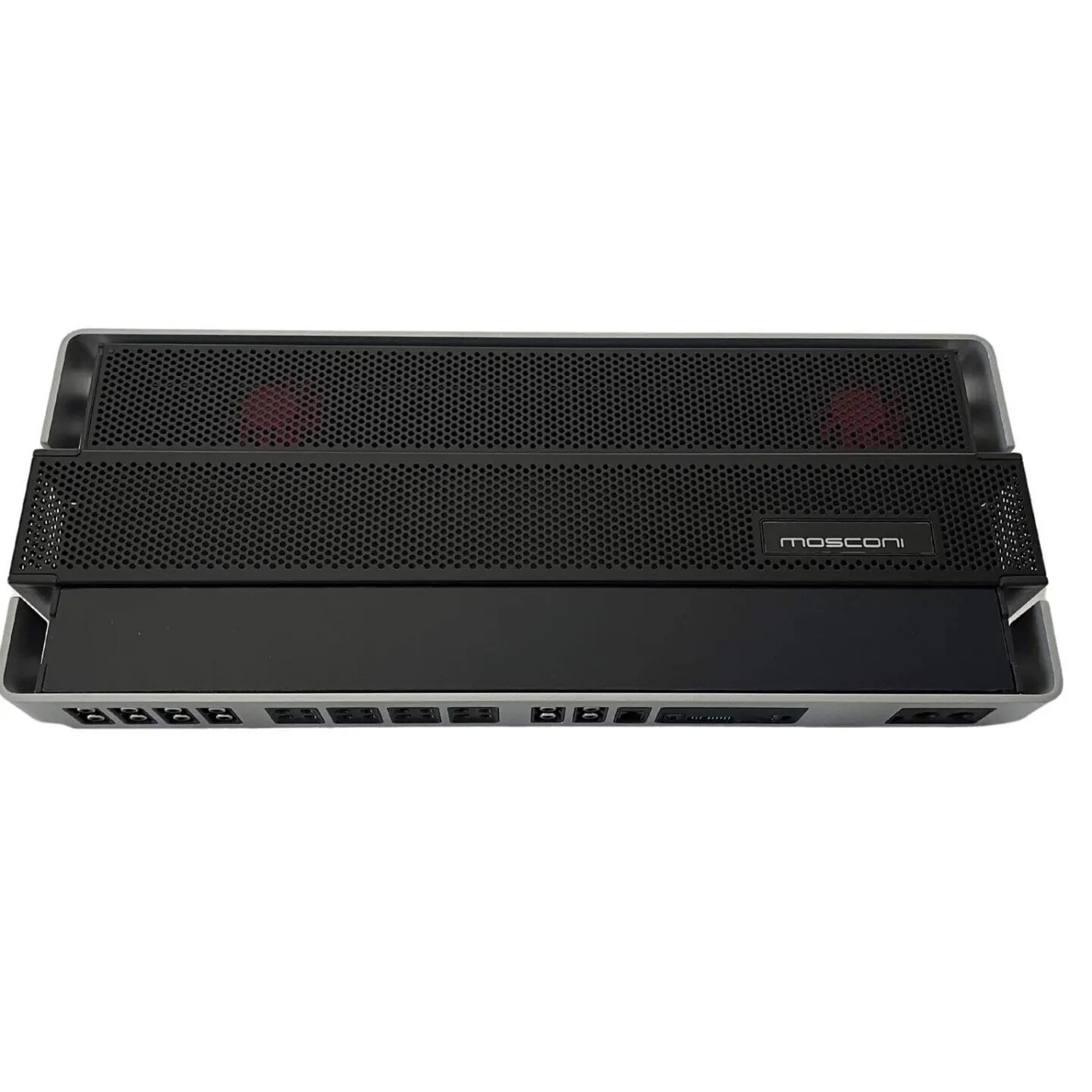

Mosconi PRO 8-30 DSP 8-channel amplifier with 12-channel Digital Sound Processor (DSP), Class AB

The Mosconi PRO 8|30 DSP sets standards in the field of multi-channel high-end DSP amplifiers. With its completely analog power section in the output range, the Mosconi PRO 8|30 DSP achieves superb music reproduction that bests digital amplifiers in resolution and spatial representation.

Uncompromising in design, the 8-channel amplifier Mosconi PRO 8|30 DSP convinces with unconditional output power and an outstanding high-end sound experience. With the integrated 12-channel DSP (including 4 channel pre-out, processed, 8 V) almost all imaginable system configurations are possible. The power amplifier is High Level capable and Class SB compatible.

Note: All DSP's require accessories to accept RCA inputs. See: Mosconi Gladiator DSP Controller (for all products with BT+ port, i.e., PICO, ONE, PRO & AERO). Consult the Mosconi-Gladen DSP Products/Accessories Compatibility chart below for more information.

Optional: RTD or RCD mini for remote control, EXT4HLIN for channel expansion (see specifications).

Software: Mosconi-Gladen also provides accompanying SOUNDUP configuration software, available from their website.

Features

• 8 channel amplifier
• Class AB technology
• 12 channel DSP

Manufacturer Specifications

Output Power:

Output power at 4 Ohms: 4 x 90 Watts + 4 x 170 Watts

Output power at 2 Ohms: 4 x 115 Watts + 4 x 220 Watts

Bridged Output power at 4 Ohms: 2 x 230 Watts + 2 x 440 Watts

Specifications:

Input sensitivity low level: 2 Vrms (LL)

Input sensitivity High Level: 15 Vrms / 30 Vrms - (15 Vrms HL Class SB)

Digital inputs: Optical (Toslink) / EXT CARD

Analog Inputs: 8 x analog (Cinch) / optional EXT4HLIN per adapter

Remote controls: Mosconi RCD or RC mini

Connection programming: Micro USB

Dimensions: 500 x 205 x 55 mm

Weight: 5.2 kg (5,200 grams)

(RMS = Root Mean Square, measure of continuous power in audio devices)

Manufacturer Documents

MANUAL for Mosconi PRO 8-30 DSP
