AmpPRO simplifies the installation of upgraded amplifiers in data-bus controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish, and features.

Benefits

• Simplifies amplifier installation
• Prevents the need for summing and DSP devices
• Provides factory sound system upgrade solution

Features

• Can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
• Enables the addition of a subwoofer system to the original sound system
• Variable volume, fade, balance, bass, mid and treble audio settings
• Front, rear, sub preamp outputs (5 volt RMS)
• Provides flat audio output for a solid audio foundation
• Customized OE bass, mid and treble center frequency selection
• Retains Sync, Bluetooth audio, and all warning chimes
• Plug & play installation
• Sublevel controller
• Optional TOSLINK optical output (APA-TOS1 sold separately)

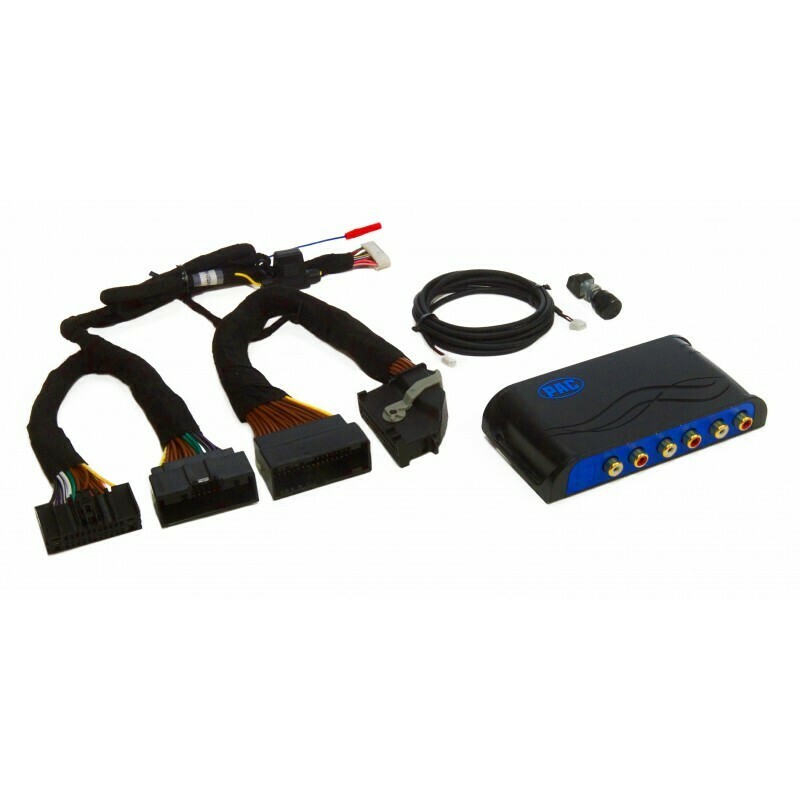

Includes
AmpPRO module
24-pin and 54-pin harness (MS-CAN) (Dual MS-CAN)
Bass knob
Knob harness
Manual

Vehicle Compatibility: The PAC AmpPRO AP4-FD21 amplifier integration interface is compatible with the following 2013-2020 Ford vehicles with a data-bus controlled factory premium sound system.

Make Model Year

Ford Edge 2015-2017

Escape 2016

Expedition 2015-2017

Explorer 2011-2018

F- 150 2013-2017

F-250/350/450/550 2013-2019

Focus 2012-2017

Fusion 2013-2016

Mustang 2019-2020

Taurus 2013-2015
