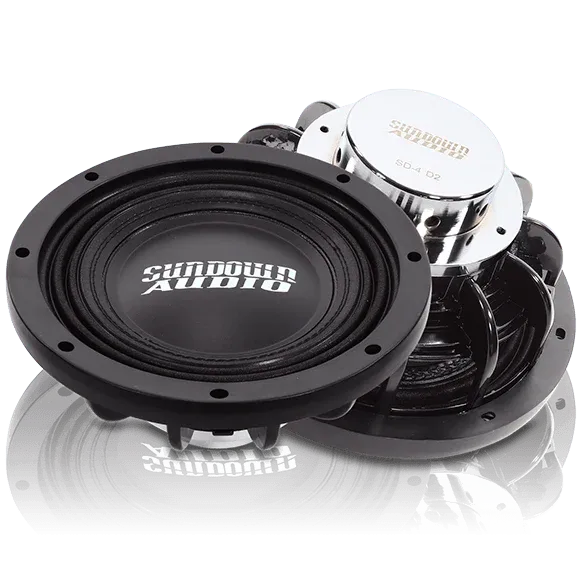

The SD-4 series truly is a world-class sound quality woofer with low mounting depth, small box requirements, yet extraordinarily high power handling. It's the ideal choice for anyone seeking a high-quality, low-mounting-depth subwoofer that performs hammers in small enclosures. With enhanced mechanical durability and superb sound quality, you get the perfect marriage of form and function.
| T/S Specs | |
|---|---|
|
RMS Power (D4)
|
600
|
|
RMS Power (D2)
|
600
|
|
RE D2 (Ohms)
|
3.9
|
|
RE D4 (Ohms)
|
7.34
|
|
FS D2 (Hz)
|
27.4407
|
|
FS D4 (Hz)
|
27.1207
|
|
VAS D2 (L)
|
36.1729
|
|
VAS D4 (L)
|
39.9739
|
|
Qes D2
|
0.5687
|
|
Qes D4
|
0.6299
|
|
Qms D2
|
4.9232
|
|
Qms D4
|
4.6994
|
|
Qts D2
|
0.5098
|
|
Qts D4
|
0.5554
|
|
Le D2 (mH)
|
5.8856
|
|
Le D4 (mH)
|
9.1167
|
|
BL D2 (NA)
|
14.4713
|
|
BL D4 (NA)
|
18.0508
|
|
Mms D2 (Grams)
|
177.0601
|
|
Mms D4 (Grams)
|
164.0278
|
|
Cms D2 (uM/N)
|
189.9892
|
|
Cms D4 (uM/N)
|
209.9529
|
|
Sens D2 (dB @ 1w/1m)
|
82.93
|
|
Sens D4 (dB @ 1w/1m)
|
82.77
|
|
Xmax D2
|
14.5mm
|
|
Xmax D4
|
14.5mm
|
| Subwoofer Measurements | |
|
Documentation
|
|
|
Displacement (Inches)
|
0.09cu ft
|
|
Depth (Inches)
|
4.5"
|
|
Cutout (Inches)
|
9.4"
|
