SD-Series v.4 8" Neo Subwoofer
+4
+3
+2

SD-Series v.4 8" Neo Subwoofer

$318.99
4 payments of $79.75 with
Voicecoil Impedance
Please choose
In stock
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Share this product with your friends
ShareSharePin it

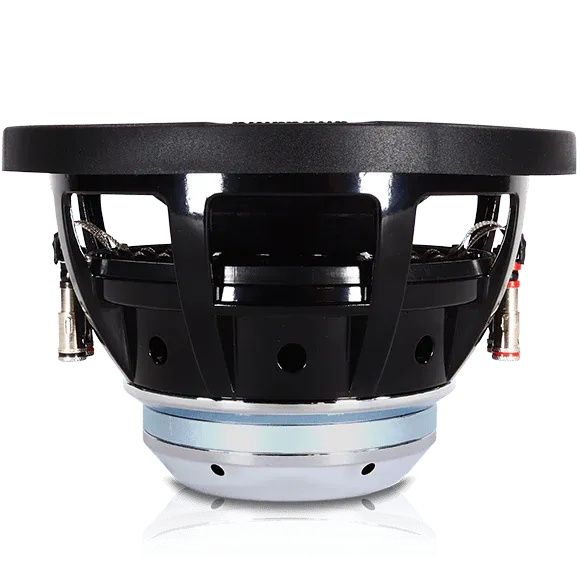

SD-Series v.4 8" Neo Subwoofer
Product Details
Brand: Sundown
Subwoofer Size: 8
  • RMS 400 watts
  • Dual 2 or 4 ohm voice coils
  • Optimized for small, sealed enclosures
  • Lightweight Neodymium motor
  • Computer-optimized foam “w” surround
  • Two-inch 8-layer copper voice coil
  • Large aluminum Faraday ring for smooth acoustic response
  • Patented high strength cast aluminum frame
  • Low distortion motor construction
  • High-temperature voice coil wire
  • Spring-loaded terminals
  • Stitched-on tinsel lead wires
The SD-4 series truly is a world-class sound quality woofer with low mounting depth, small box requirements, yet extraordinarily high power handling. It's the ideal choice for anyone seeking a high-quality, low-mounting-depth subwoofer that performs hammers in small enclosures. With enhanced mechanical durability and superb sound quality, you get the perfect marriage of form and function.
    Specifications
    Specifications for product SD-Series v.4 8" Neo Subwoofer
    T/S Specs
    RMS Power (D4)
    400
    RMS Power (D2)
    400
    RE D2 (Ohms)
    4.2
    RE D4 (Ohms)
    6.43
    FS D2 (Hz)
    35.6841
    FS D4 (Hz)
    36.25
    VAS D2 (L)
    12.16
    VAS D4 (L)
    12.83
    Qes D2
    0.5783
    Qes D4
    0.6561
    Qms D2
    5.7988
    Qms D4
    5.7301
    Qts D2
    0.5259
    Qts D4
    0.5887
    Le D2 (mH)
    4.4242
    Le D4 (mH)
    6.0746
    BL D2 (NA)
    13.17
    BL D4 (NA)
    14.77
    Mms D2 (Grams)
    106.4747
    Mms D4 (Grams)
    97.7789
    Cms D2 (uM/N)
    186.8295
    Cms D4 (uM/N)
    197.0882
    Sens D2 (dB @ 1w/1m)
    81.55
    Sens D4 (dB @ 1w/1m)
    81.44
    Xmax D2
    14.5mm
    Xmax D4
    14.5mm
    Subwoofer Measurements
    Documentation
    Physical Dimensions
    Displacement (Inches)
    0.07 cu ft
    Depth (Inches)
    4.5"
    Cutout (Inches)
    6.750"
    Motor Diameter (Inches)
    4.52
    Ported Enclosure Specs
    Ported Enclosure Size
    Not Recommended
    Recommended Port Tuning
    35hz
    Sealed Enclosure Specs
    Sealed Enclosure Size
    0.33 - 0.5 cu ft
    4th Order Enclosure Specs
    4th Order Sealed Side
    .375cu ft
    4th Order Ported Side
    1.5cu ft
    4th Order Port Area
    15sq in
    4th Order Port Length
    6"
