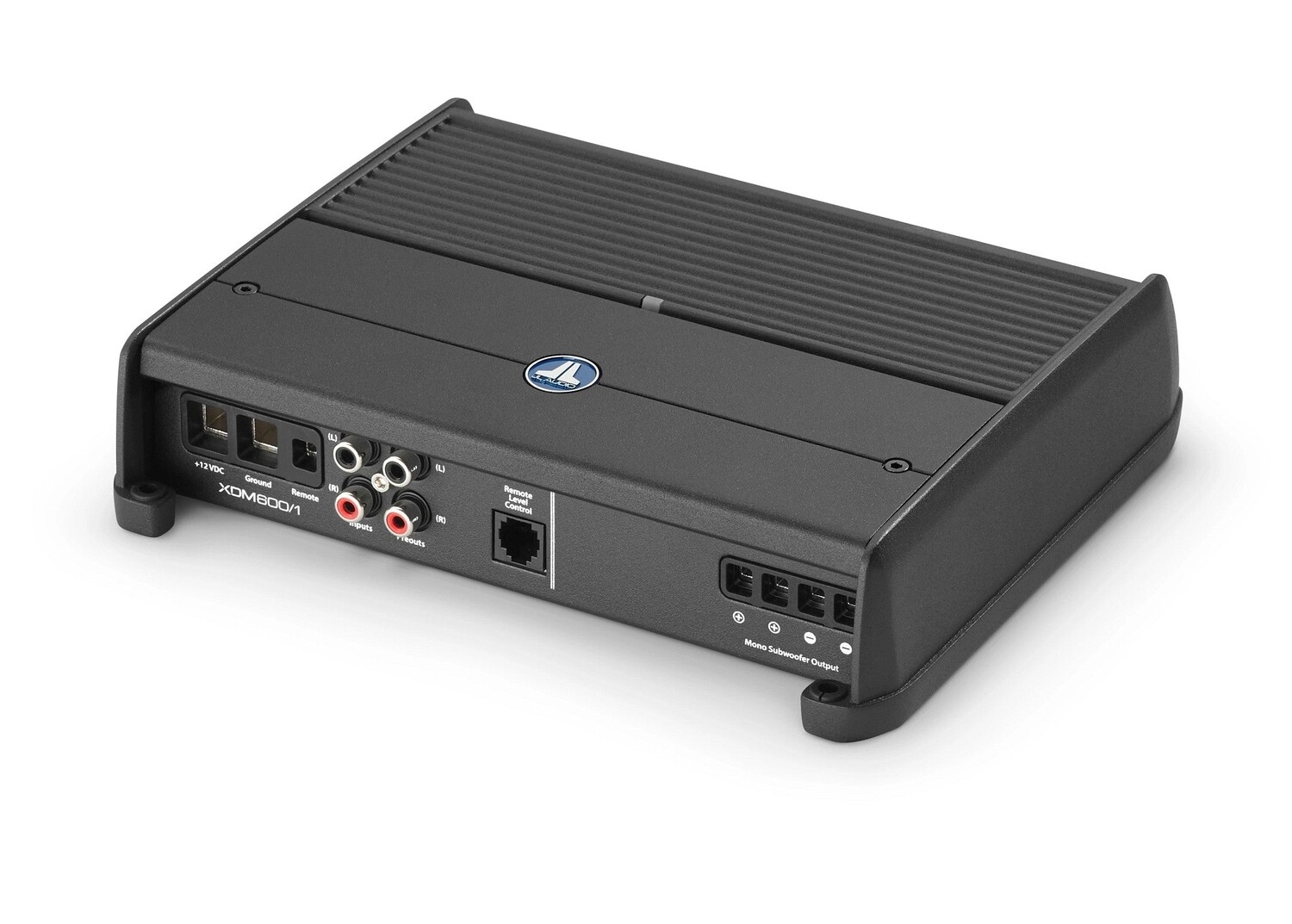

JL Audio XDM600/1 Monoblock 600W Car/Marine Subwoofer Amplifier
Product Details
Brand: JL Audio
Amplifier Channels: 1
JL Audio XDM600/1 Monoblock 600 Watt Car/Marine Subwoofer Amplifier
Monoblock Class D Car/Marine Subwoofer Amplifier, 600 W x 1 at 2 Ohms / 400 W x 1 at 4 Ohms - 14.4V
This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don't let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600 W of continuous power into a 2 Ohm load (14.4V, 1% THD).
Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain's chair.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Rated Continuous (RMS) Power at 14.4 V
| at 4 Ohms | 400 W RMS x 1 |
| at 3 Ohms | 500 W RMS x 1 |
| at 2 Ohms | 600 W RMS x 1 |
| at 1.5 Ohms | N/A |
Rated Continuous (RMS) Power at 12.5 V
| at 4 Ohms | 300 W RMS x 1 |
| at 3 Ohms | 400 W RMS x 1 |
| at 2 Ohms | 500 W RMS x 1 |
| at 1.5 Ohms | N/A |
General Specifications
| Frequency Response | 7 Hz - 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor at 4 Ohms | >1000 / 50 Hz |
| Damping Factor at 2 Ohms | >500 / 50 Hz |
| THD+N at Rated Power | <1% at 2 Ohms per Ch. |
| Input Voltage Range at RCA Inputs | 200 mV - 4 V RMS |
| Min. Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter | 30 Hz, defeatable |
| Bass Boost EQ | No |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Buffered |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 8.52 in / 216 mm |
| Depth (D) | 7.09 in / 180 mm |
| Net Weight | 6.3 lb / 2.86 kg |
